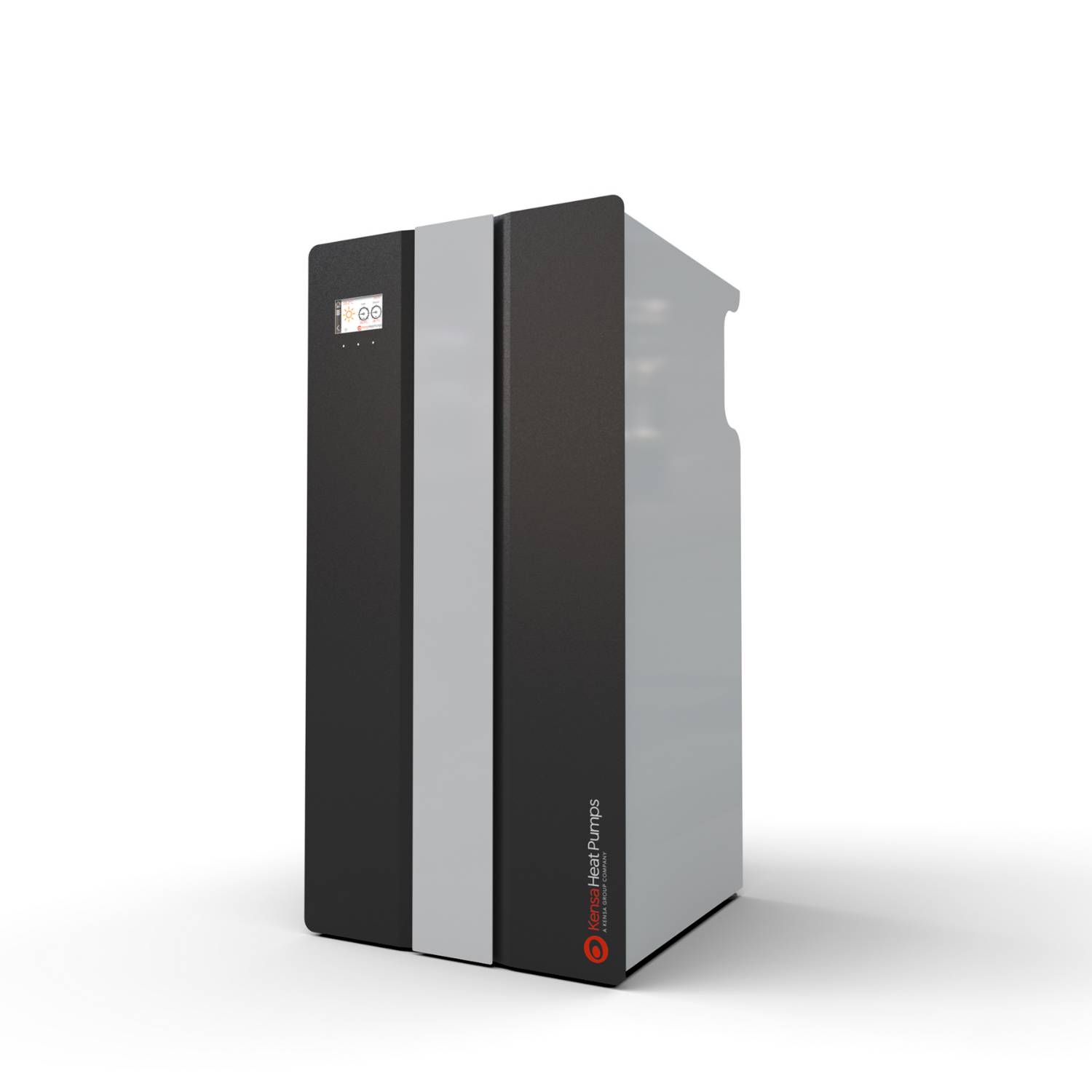

Kensa Evo Ground Source Heat Pump

Verified by manufacturer 3 months ago

K070-S1H - Single Phase

Kensa Group Variant:

Ground source heat pump with A+++ energy-related product (ErP) rating.

Jump to:
BOS
+44 (0)345 222 4328 Website

Application

Suitable for existing and new-build medium to large homes.

Description

The ERP A+++ rated Evo series delivers heating and hot water efficiencies of SCOPs up to 4.7 at 35°C along with significantly reduced noise outputs, packaged in a contemporary contoured gunmetal and gloss-white finish, punctuated by a custom built control panel unique to the Kensa series.


Features and benefits:

  • Available in 7 kW, 9 kW, 13 kW,15 kW and 17 kW.
  • A+++ energy efficiency: maximize the return from subsidies and reduce carbon emissions with the Evo’s high efficiency.
  • Affordable heating, hot water and cooling: experience the pros of renewable heating, hot water and cooling without the cons of pricey bills.
  • A smart system manager: leave the hard work to the Genesis System Manager – a clever system that optimizes the Evo’s performance.
  • Quiet and modern design: enjoy peace and quiet with discreet sound levels and a sophisticated system that fits snugly inside the home.
  • Rewarding payback: make and save money over the Evo’s lifetime. Depending on the project type, there is a range of funding options.
  • Hassle-free electrical connection: connect to the electricity grid without delay. The Evo’s Connect & Notify approval can save time and money.
  • Easy to install: install the Evo with the ease of versatile features and a straightforward touch-screen set-up.
  • Safe and non-combustion heating: choose the safe alternative to combustion fossil fuels and flammable refrigerant renewables. Like all Kensa products, the Evo uses a non-flammable refrigerant.

General information

Color

Grey

White

Finish

Gloss

Material

Steel

Shape

Rectangle

Length

575 mm

Guidance for specification option:

Depth.

Width

600 mm

Height

1145 mm

Warranty description

Two year

Guidance for specification option:

Controller and water pumps.

Five year

Guidance for specification option:

Core heat pump unit (refrigeration components).

Uniclass

Pr_70_60_37_36 Ground source heat pumpsPrimary
Pr_70_60_37_98 Water-to-water heat pumps

CAWS

T90/525 Ground heat exchangers

T90/525 Ground heat exchangers

Specification data - Ground source heat pumps

Loop depth

1 m.

Pipe diameter

28 mm.

Borehole diameter

Guidance for specification option:

Consult manufacturer and insert requirements.

Thermal

7 kW.

Manufacturer guidance

Nominal thermal kW rating.

Power consumption

1.8.

CoefficientOfPerformance

To EN 14511, 4.48.

Flowrate

29.1 kg/min (brine); 22.4 L/min (heating water).

Guidance for specification option:

  • Brine (primary) based on 0°C in / -4°C out.
  • Heating water (secondary) based on 30°C in / 35°C out.

PressureDrop

12 kPa (brine); 4 kPa (heating water).

Guidance for specification option:

  • Brine (primary) based on 0°C in / -4°C out.
  • Heating water (secondary) based on 30°C in / 35°C out.

Manufacturer guidance

Pressure drop kPa at design flow rate.

WaterInletTemperatureRange

-5℃ to 15℃.

Manufacturer guidance

Min–max inlet temperature.

Heating secondary flow temperature (UFH)

64℃.

RatedVoltage

220–240 V (50–60 Hz).

Power supply

25 A.

Manufacturer guidance

Rating amps.

RatedCurrent

18.5 A.

Manufacturer guidance

(Maximum) amps.

Process medium

R407C.

InternalRefrigerantVolume

1.9 kg.

Manufacturer guidance

Fill volume kg.

Compressor

Scroll.

Dimensions

1145 x 600 x 575 mm.

Dry weight

153 kg.

Rating

A+++.

Manufacturer guidance

ErP rating.

Overall sound power level

49.4 dB.

Sustainability data

Country of product manufacture

United Kingdom

Material

Steel

Recyclability

Disposal/Decommissioning
Kensa offer a life time decommissioning service for this product. This is available on a return to base basis (carriage at users cost).

Disposal of any antifreeze water mix should follow the disposal instructions as laid out on the COSH Safety Data Sheet in the Installation Manual.
This symbol on the product indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical equipment. The separate collection and recycling of your waste
equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the company where this
product was purchased.


Returning products
Customers and stockists are reminded that under EC Health, Safety and Environment Law, when returning products to Kensa Heat Pumps they must provide information on any hazards and the precautions to be taken due to contamination residues or mechanical damage which may present a health, safety or
environmental risk. This information must be provided in writing including Health and Safety data sheets relating to any substances identified as hazardous or potentially hazardous.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

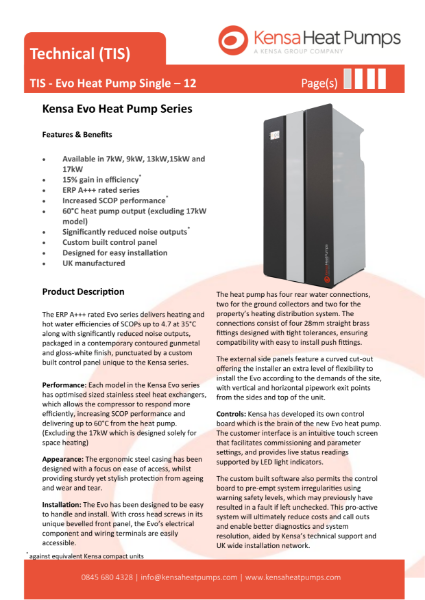

TIS - Evo Heat Pump Single – 12
