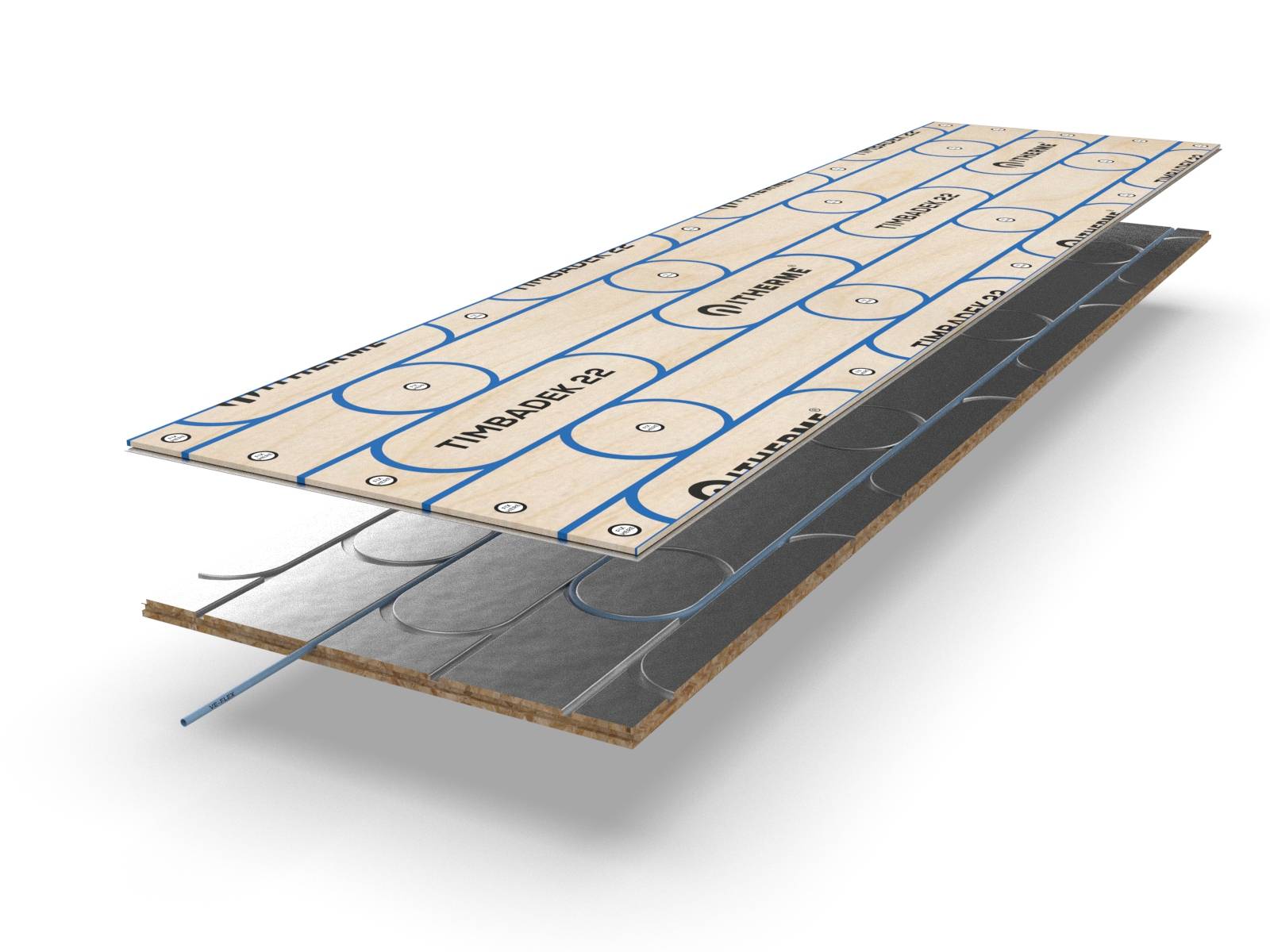

ITHERME TIMBADEK 22 - Underfloor Heating System
Verified by manufacturer 2 days ago
ITHERM E TIMBADEK 22 is a structural joisted floor underfloor heating panel that combines decking and heating into a single, space-saving dry system.
Application
The ITHERME TIMBADEK 22 system is installed by gluing and screwing the pre-routed tongue and groove panels directly to joists or battens, laying the heating pipework into the channels, adding a thin plywood or gypsum overlay panel, and finishing with the selected floor covering.
Description
The ITHERME TIMBADEK 22 is a structurally tested, pre-routed underfloor heating panel system designed for joisted and battened floor constructions. Manufactured as a tongue and groove panel, it installs directly onto joists or battens and combines the functions of a structural deck and an underfloor heating system in a single solution. The system is suitable for both refurbishment and new installations, offering a dry installation method that accommodates uneven joist spacing while supporting efficient heat transfer close to the final floor finish.
Features and benefits:
- Structurally tested tongue and groove panel system for joisted and battened floors.
- Combines structural decking and underfloor heating in one integrated panel.
- Pre-routed multi-directional pipe channels at 150 mm centres for flexible layouts.
- Compatible with ITHERME 16 mm PE-RT EVOH oxygen barrier pipe to DIN 4726 standards.
- Dry installation method suitable for uneven existing joist spacings.
- Allows PIR or rockwool insulation to be installed between joists to meet thermal requirements.
- Provides high heat output with pipework positioned close to the final floor finish.
- Accepts all common floor finishes when overlaid with 6 mm plywood or 9 mm gypsum panel.
- Space-saving build-up of 28 mm with 6 mm ply or 31 mm with 9 mm gypsum overlay.
General information
Color | Brown |
Finish | Other |
Material | Chipboard |
Shape | Rectangle |
Length | 2400 mm |
Width | 600 mm |
Height | 22 mm |
Uniclass | |
CAWS | T90/478 Underfloor electric heating cables T90/441 Manifold for underfloor heating |
Specification data - Underfloor low-temperature hot water heating systems
Classification data | |
Heat source | Manufacturer guidanceInsert requirements or omit. |
Pumps | Manufacturer guidanceInsert requirements or omit. |
Pipework | |
Distribution | Itherme VE-FLEX pipes, 16 x 2 mm. Guidance for specification option: PE-RT/EVOH/PE-RT, five layer oxygen diffusion barrier pipe to DIN 4726 (SKZ,KOMO Cert). |
Underfloor | Itherme VE-FLEX pipes, 16 x 2 mm. Guidance for specification option: PE-RT/EVOH/PE-RT, five layer oxygen diffusion barrier pipe to DIN 4726 (SKZ,KOMO Cert). |
Jointing materials | Manufacturer guidanceInsert requirements or omit. |
Insulation | Not required. Required. Guidance for specification option: To required thermal specifications. Supplied by others, insert requirements. |
Pipe accessories | Aluminium heat diffusion tape. |
Pipe supports | Itherme TIMBADEK 22 structurally tested pre-routed tongue and groove panel, 2400 x 600 x 22 mm. Guidance for specification option:
|
Floor components | 6 mm ply (supplied by others). Guidance for specification option: Glued and screwed prior to floor finish. 9 mm Itherme Gypsumplate. Guidance for specification option: Glued and screwed prior to floor finish. |
Floor finish | Manufacturer guidanceSupplied by others, insert requirements. |
Sustainability data
Material | Chipboard |
Literature
Product Data Sheet - ITHERME TIMBADEK 22
