ITHERME ALUPLATE 50 - Underfloor Heating System

Name: ITHERME ALUPLATE 50 - Underfloor Heating System
Brand: ITHERME Underfloor Heating and Cooling
SKU: sjKAW1MtJa3P2QyvJF7xT4

Verified by manufacturer 2 days ago

ITHERME Underfloor Heating and Cooling

ITHERM E ALUPLATE 50 is a joisted and battened floor underfloor heating system that delivers efficient heat distribution without increasing overall floor height.

Jump to:

01908 464654 Website

Application

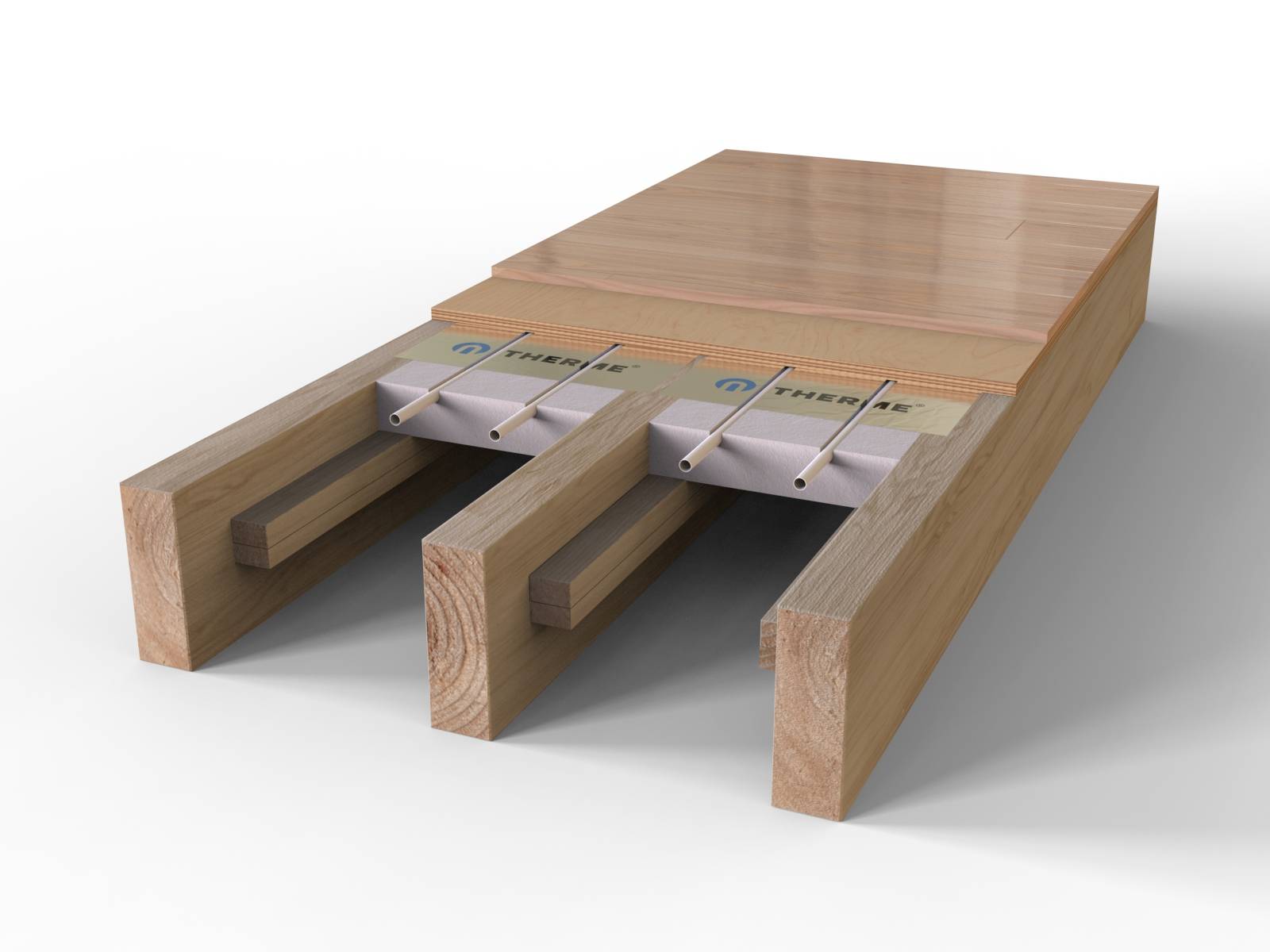

The ITHERME ALUPLATE 50 system is installed in joisted or battened floor constructions, where the pre-routed EPS insulation panels are fixed onto supporting battens, aluminium diffusion plates and heating pipes are inserted into the channels, and the system is finished with a structural plywood or gypsum fibre board before applying the final floor finish.

Description

The ITHERME ALUPLATE 50 system is a low-profile underfloor heating solution designed for joisted or battened floor constructions. It incorporates pre-routed high-density EPS insulation and aluminium heat diffusion plates to support efficient and consistent heat transfer across the floor area. The system is engineered to sit flush with the top of the joists, allowing a smooth installation of structural plywood or gypsum fibre boards before the final floor finish is applied, making it suitable for a wide range of interior applications.

Features and benefits:

Provides even and consistent heat distribution using aluminium heat diffusion spreader plates.
Designed specifically for joisted and battened floor constructions.
Utilises 50 mm EPS insulation with a compressive strength of the 150 kPa insulation is what is shown within the initial image, but multiple options are available at the bottom of the datasheet.
Compatible with Itherme VE-FLEX 16 x 2 mm PE-RT/EVOH/PE-RT multilayer pipe to DIN 4726 standards.
Finishes flush with the top of the joist to allow standard floor build-ups.
Suitable for intermediate floors above heated spaces.
Offers design flexibility with 150 mm and 200 mm pipe centre options to suit different layouts.
Adds no additional height to the floor where sufficient build-up is available.
Accepts all common floor finishes when used with plywood or structural gypsum fibre panels.

General information

Color	Grey Guidance for specification option: Heat Plate / Barrier Pipe / EPS Panel
Finish	Other Guidance for specification option: Floor finish (by others).
Material	Aluminium Expanded polystyrene (EPS)
Shape	Rectangle
Length	1200 mm
Width	350 mm
Height	50 mm

Uniclass	Ss_60_40_92_94 Underfloor low-temperature hot water heating systemsPrimary
CAWS	T90/478 Underfloor electric heating cables T90/450 Insulation to pipework to control heat loss T9/336 Insulation for heating system pipework

Specification data - Underfloor low-temperature hot water heating systems

Classification data
Heat source	- Manufacturer guidance Insert requirements or omit.
Pumps	- Manufacturer guidance Insert requirements or omit.
Pipework	-
Distribution	Itherme VE-FLEX pipes, 16 x 2 mm. Guidance for specification option: PE-RT/EVOH/PE-RT, five layer oxygen diffusion barrier pipe to DIN 4726 (SKZ,KOMO Cert).
Underfloor	Itherme VE-FLEX pipes, 16 x 2 mm. Guidance for specification option: PE-RT/EVOH/PE-RT, five layer oxygen diffusion barrier pipe to DIN 4726 (SKZ,KOMO Cert).
Jointing materials	- Manufacturer guidance Insert requirements or omit.
Pipe accessories	Itherme ALUPLATE heat diffusion plate 0.5 mm.
Pipe supports	Itherme pre-routed EPS 150 Kpa insulation panel, 1200 x 350 x 50 mm.
Floor components	18 mm ply (supplied by others). Guidance for specification option: Applied prior to floor finish. 18 mm structural gypsum panel (supplied by others). Guidance for specification option: Applied prior to floor finish.
Floor finish	- Manufacturer guidance Supplied by others, insert requirements.
