ISO-FLAME KOMBI F120

ISO-FLAME KOMBI F120

Verified by manufacturer 4 months ago

ISO-Chemie GmbH Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Fire-resistant joint sealing tape.

Jump to:
+44 (0)1207 566867 www.iso-chemie.co.uk

Application

Suitable for the reliable sealing of joints and connections in buildings, which must provide high fire protection requirements.

Description

A PUR-sealing tape equipped with a special highly fire-resistant impregnation for fire protection of joints. It fulfils the requirements of DIN 4102 for F 120 and DIN EN 13501 for EI 120 and is characterized by its simple and reliable application.


Features and benefits:

  • Fulfils the requirements of fire protection as a physical barrier against the flame and thermal isolation for 120 minutes (F 120 and EI 120).
  • Fire resistance period of F 30, F 120, EI 30 and EI 120 tested by iBMB MPA Braunschweig.
  • Permanently elastic, with a high long-term movement capacity.
  • For joint dimensions of 7–40 mm.
  • Sound and heat insulating.
  • Silicon finish possible.
  • No pre-treatment of the joint and no additional sealing to the visible joint surface with fire protection compound agent required.
  • Applicable in all types of construction.

General information

Color

Grey

Anthracite.

Material

Polyurethane

PUR-sealing tape.

Uniclass

Pr_35_90_87_71 Resin-impregnated pre-compressed foam sealing stripsPrimary

CAWS

E40/545 Compressible sealing strip system

F30/610 Movement joints with sealant

F30/615 Movement joints without sealant

F30/78 Fire-resisting movement joints without sealant

H11/110 Curtain walling

H13/115 Structural glass assembly

H42/661 Sealant joints

Product range

Fire Protection Products

Specification data - Resin-impregnated pre-compressed foam sealing strips

Materials

-

Foam

Polyurethane.

Joint width

Insert requirement, available for widths of 7–40 mm.

Third party certifications

  • GEV-EMICODE®: EC1 very low emission

Similar products from ISO-Chemie GmbH

ISO-BLOCO 300

ISO-BLOCO 300

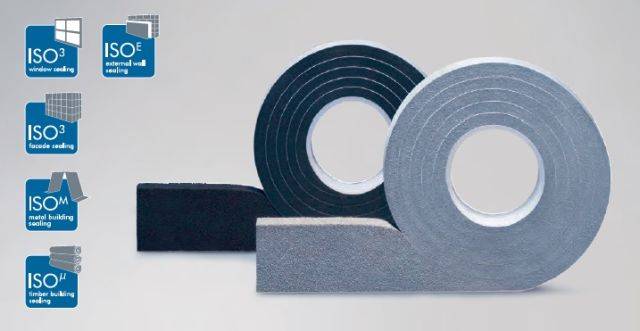

ISO-BLOCO 600

ISO-BLOCO 600

ISO-BLOCO HF

ISO-BLOCO HF

ISO-BLOCO ONE

ISO-BLOCO ONE

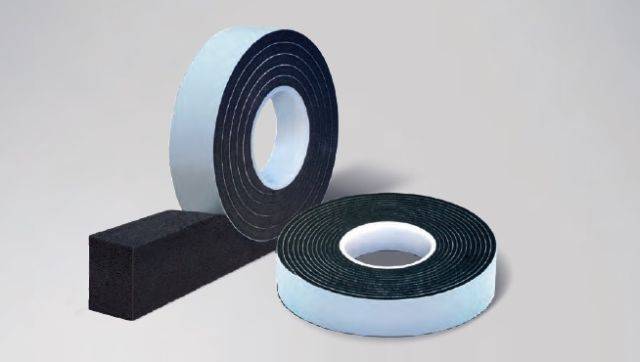

ISO-BLOCO T-MAX

ISO-BLOCO T-MAX

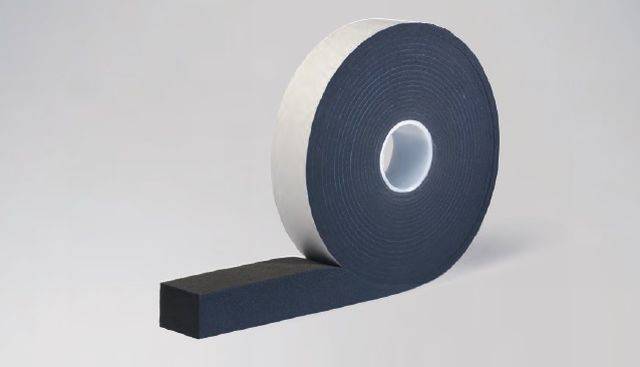

ISO-BLOCO WIN2WALL
