Application

It can be used between window couplings or in the perimeter joints between assorted building elements. It is also outstanding as thermal insulation in construction joints, as an excellent substitute to conventional can foams. It is mostly regarded for its thermal and acoustic insulating properties.

Description

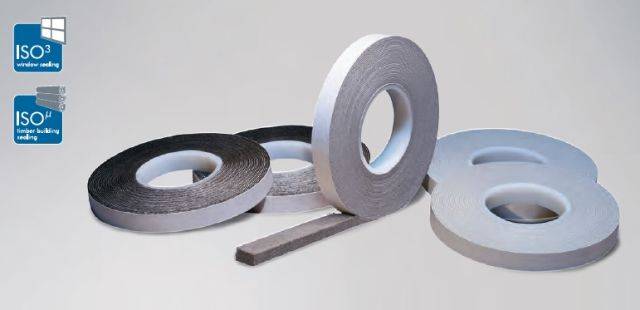

An impregnated PUR foam sealing tape, which under compression, is suitable for thermal and acoustic insulation as well as sealing against drafts and dust.


Features and benefits:

  • Particularly ideal as a sealing and insulation layer in conjunction with the ISO3-WINDOW SEALING SYSTEM.
  • Permanently elastic, providing a constant high level of acoustic and thermal insulation.
  • Vapour diffusion permeable - breathable.
  • Thermal and acoustic insulating properties.
  • Self-adhesive to aid installation/ location.
  • Compatible with all established sealant compounds.
  • Low temperature expansion.
  • Complies with EnEV requirements and the recommendations of the RAL 'Installation guide'.
  • Ten-year function warranty.

General information

Color

Black

Grey

Material

Polyurethane

Guidance for specification option:

PUR foam.

Warranty description

Ten year

Uniclass

Pr_35_90_87_71 Resin-impregnated precompressed foam sealing stripsPrimary

CAWS

E40/545 Compressible sealing strip system

F30/610 Movement joints with sealant

F30/615 Movement joints without sealant

F30/78 Fire-resisting movement joints without sealant

H11/110 Curtain walling

H13/115 Structural glass assembly

H42/661 Sealant joints

L10/75 Sealant joints

L10/810 Sealant joints

L20/80 Sealant joints

L20/820 Sealant joints

Product range

Pre-compressed Joint Sealing Tapes

Specification data - Resin-impregnated precompressed foam sealing strips

Materials

-

Foam

Polyurethane.

Joint width

Guidance for specification option:

Insert requirement, available for widths of 2–16 mm.

Colour

Black.

Grey.
