Integrated Plumbing System (IPS) - Integrated Plumbing System
Verified by manufacturer 7 days ago
IPS - MR MFC
IPS - MR MFC
Integrated plumbing system (IPS) for washrooms.
Application

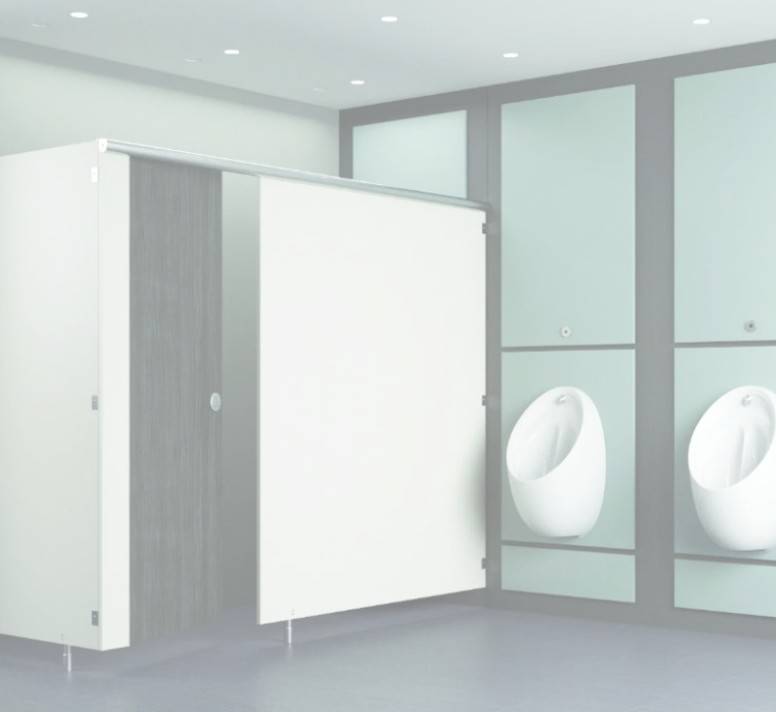

Designed for placement behind urinals or toilet facilities within commercial washroom projects.
- MR MFC: Light traffic spaces unlikely to be exposed to moisture.
- SGL: Higher traffic areas or for wet environments such as leisure centres and education facilities.
- HPL: Consult manufacturer for details.
Description
Integrated plumbing system (IPS) for washrooms, available in moisture-resistant melamine faced chipboard (MR MFC), solid grade laminate (SGL), or high pressure laminate (HPL).
Features and benefits:
- Made to order.
- Half-height and full-height designs available - helps to create a bespoke washroom.
- Designed to conceal plumbing work in washroom facilities.
- Provides easy access for maintenance staff.
- MR MFC and SGL options are designed for use with RapidFit, Aspire, Enhance, Elevate and Triumph cubicles (specified separately).
- Compliant with DDA (Disability Discrimination Act) requirements.
- Shadow gaps are supplied in lengths to be cut on site.
General information
Color | White Blue Grey Brown Turquoise Manufacturer guidanceSee the Colour Selector brochure for swatches. |
Finish | Laminated Other |
Material | MFC Solid grade laminate (SGL) High pressure laminate (HPL) Acrylonitrile butadiene styrene (ABS) |
Length | Bespoke |
Width | Bespoke |
Height | 2900 mm Bespoke |
Warranty description | Five year Guidance for specification option: MR MFC and HPL. Ten year Guidance for specification option: SGL. |
Uniclass | |
CAWS | K32/140 Duct/ wall linings – panels only K32/15 Duct/ wall lining panels |
Specification data - Duct and wall panel lining systems
Classification data | |
Panels | 600 kg/m³ moisture-resistant melamine faced chipboard (MR MFC), 19 mm. |
Non-integral finishes | Edges 2 mm matching acrylonitrile butadiene styrene (ABS). |
Fasteners | Lift-on/ off panel clips. Guidance for specification option: Hidden gravity lift on/ off clips fixed to the edge of the shadow gap panels and reverse of IPS panels. |
Supporting frame | |
Duct panels | By others. |
Wall panels | By others. |
System accessories | Removable access panels. |
Dimensions | Finished floor level: Up to 2900 mm. Guidance for specification option: Half-height and full-height panels are available.
Consult manufacturer for details. |
Finish | Royal white U11209. Water blue U18002. Texwood grey F73048. Slate grey U12231. Sangha wenge R50004. Light grey U12188. Lagoon U18505. Grey sonoma oak R20039. Be rooted U16058. Manufacturer guidanceSee the Colour Selector brochure for swatches. |
Shadow gaps | 19 mm MR MFC. |
Joint treatment | 0 mm between each panel. Nominal 50 mm where IPS meets the wall, 120 mm vertically in between IPS panels to accommodate for cubicle partition and 100 mm base rail where panels meet the floor. |
Design | Standard flat top. Angled top. Guidance for specification option: Prevents the use of the panels as a storage facility, whilst also preventing the build-up of dust. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | MFC Solid grade laminate (SGL) High pressure laminate (HPL) Acrylonitrile butadiene styrene (ABS) |
Recyclability | MR MFC can be recycled into chipboard or as bio-mass. SGL & HPL can only be used as bio-mass. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 85 % |
Expected Life | Five year Ten year |
Literature
Literature type
Commercial Product Catalogue

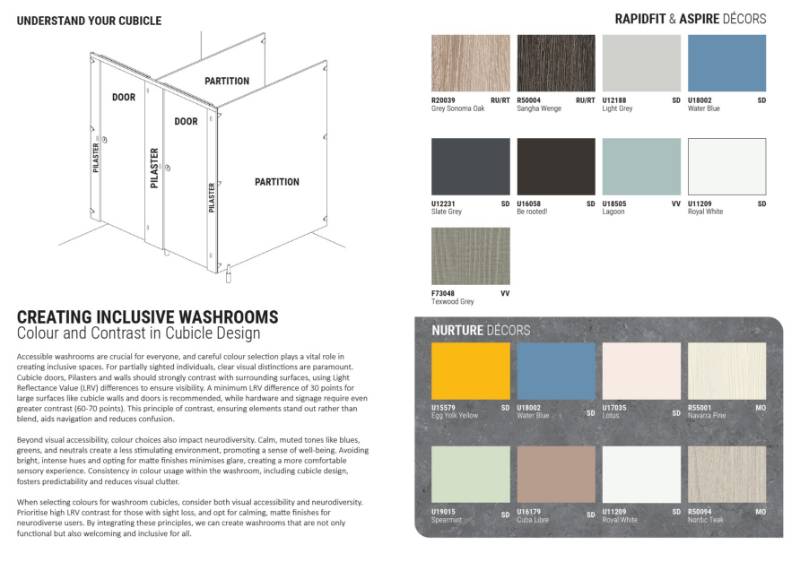

Rearo Colour Selector
