Inset Sink with Drainer - B20085 range
Verified by manufacturer over a year ago

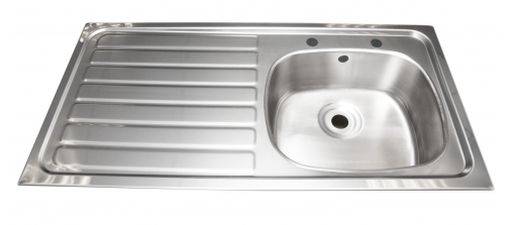

Single bowl and single drainer inset sink with 2 tapholes at 180 mm centres and overflow L1050.
Application
Single bowl/single drainer sinks for insetting into a worktop.
Description
Single bowl and single drainer inset sink with right hand drainer the top turned down on all edges and incorporates a rimmed edge and fixing rails.
Features and Benefits:
- Fixing clips are provided for insetting the sink into a worktop.
- The bowl is prepared for a 38 mm waste outlet and overflow. It may be necessary to notch the worktop when an overflow is fitted.
- Two tapholes are provided positioned centrally behind the bowl.
- Wastes are available separately.
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel Guidance for specification option: grade 1.4301 (304) |
Shape | Rectangle |
Length | 505 mm |
Width | 1015 mm |
Height | 200 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/25 Sinks N13/331 Sinks |
Product range |
Specification data - Sinks
Form | Inset. |
Bowls | One. |
Drainers | One, right hand. |
Materials | |
Body | Stainless steel.Guidance for specification option: grade 1.4301 (304) |
Finish and colour | Satin. |
Size | 1015 x 505 x 200 mm.Guidance for specification option: Bowl dimensions: 420 x 350 x 180 mm, cut out size: 1000 x 490 mm 1.2 mm thick. |
Water supply, overflow and waste holes | |
Water supply | Two tap holes.Guidance for specification option: Positioned centrally behind the bowl. |
Overflow | 38 mm overflow. |
Waste | 38 mm waste outlet. |
Integral accessories | Wastes available separately. |
Product Reference | (B20085LT) 207.0000.023 Guidance for specification option: Left drainer, 2 tapholes at 180 mm centres, no overflow. (B20085RT) 207.0000.029 Guidance for specification option: Right drainer, 2 tapholes at 180 mm centres, no overflow. (B20085LN) 207.0000.021 Guidance for specification option: Left drainer, no tapholes, no overflow. (B20085RN) 207.0000.027 Guidance for specification option: Right drainer, no tapholes, no overflow. (B20085LCO) 207.0000.020 Guidance for specification option: Left drainer, centre taphole with overflow. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Poland |
Country of product manufacture | Poland |
Recyclability | Manufacturer guidanceRecyclable. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
