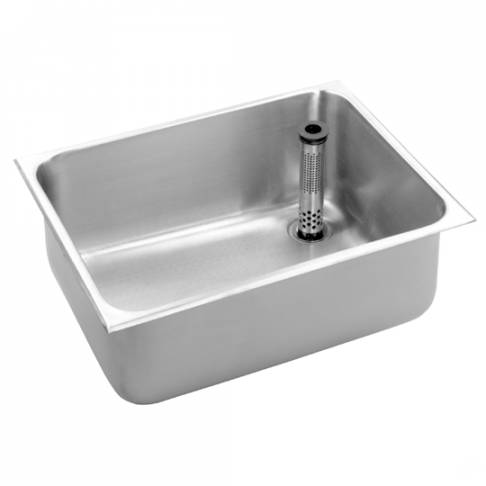

Inset Sink Bowl - C20136R
Verified by manufacturer over a year ago
Large sink bowls are supplied for insetting into worktops, and have a rimmed edge.
Application
Suitable for insetting into a worktop.
Description
Large sink bowls are supplied for insetting into worktops, and have a rimmed edge.
Features and Benefits:
- Large inset sink bowl with right hand drainer.
- Designed with rimmed edges, suitable for insetting into a worktop.
- Prepared for a 38 mm waste and overflow.
- Waste, plug, chain and overflow are available as extras.
- No tap holes are provided therefore any taps to be fitted must be mounted either through the worktop or on the wall.
- Fixing clips are supplied with each bowl and an earthing lug is fitted to the underside of the bowl.
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel Guidance for specification option: grade 1.4301 (304) |
Shape | Rectangle |
Length | 485 mm |
Width | 635 mm |
Height | 300 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/25 Sinks N13/331 Sinks |
Product range |
Specification data - Sinks
Form | Inset.Guidance for specification option: Small inset sink bowls suitable for insetting into a worktop with fixing clips. |
Bowls | One. |
Drainers | Right hand. |
Materials | |
Body | Stainless steel.Guidance for specification option: grade 1.4301 (304) |
Finish and colour | Satin. |
Size | 635 x 300 x 485 mm.Guidance for specification option: Bowl Dimensions 600 x 300 x 450 mm, 1.2 mm thick. |
Water supply, overflow and waste holes | |
Water supply | No tap holes.Guidance for specification option: Therefore any taps to be fitted must be mounted either through the worktop or on the wall. |
Overflow | Standpipe strainer overflows.Guidance for specification option: It may be necessary to notch the worktop when fitting an overflow. |
Waste | 38 mm waste outlet. |
Integral accessories | Waste, plug, chain and overflow are available as extras. |
Product Reference | (C20136R) 214.0493.189 |
Sustainability data
Contains Red List materials | No |
Country of material origin | Italy |
Country of product manufacture | Italy |
Recyclability | Manufacturer guidanceRecyclable. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
