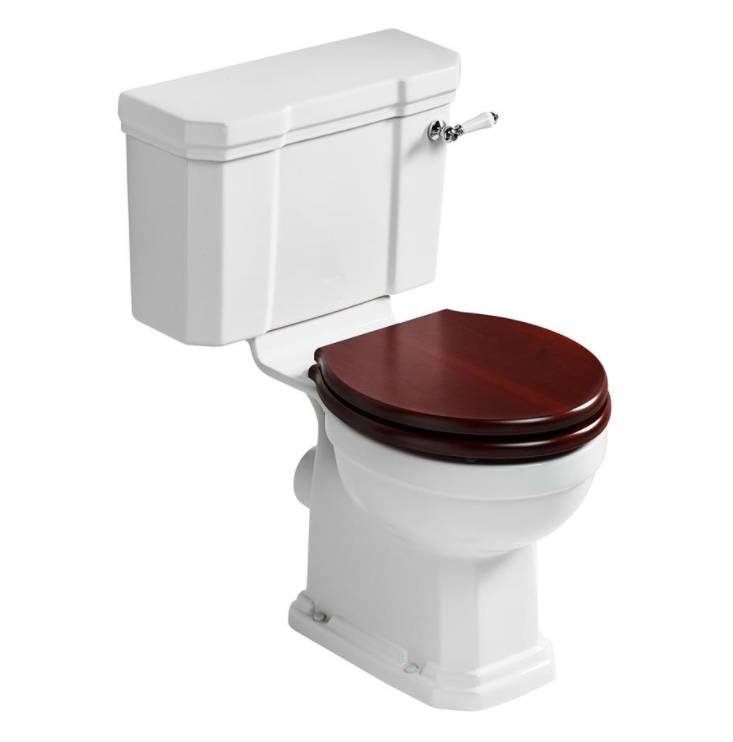

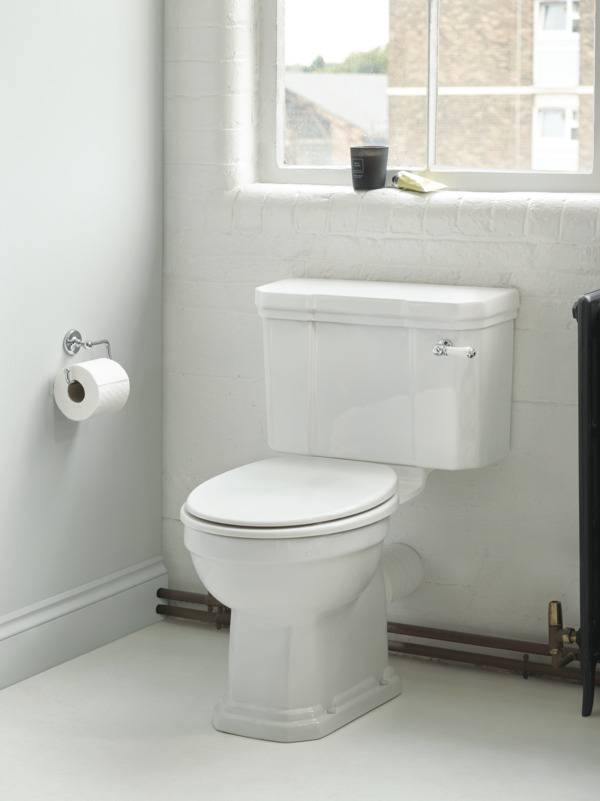

Ideal Standard Waverley Close Coupled WC
Verified by manufacturer 4 months ago
EPD
Certificate type
Close coupled toilet bowl with horizontal outlet.
Application
Suitable for use as close coupled toilet bowl with horizontal outlet.
Description
The Waverley suite offers classic Edwardian styling with matching washbasin & toilet seat options.
Features and benefits:
- Domestic and hotel use.
- Classic Edwardian styling.
- Traditional lever.
- WC screwed to floor and cistern screwed to wall.
- Seat available in 2 colour options
General information
Color | White |
Finish | Polished |
Material | Vitreous china |
Length | 675 mm |
Width | 360 mm |
Height | 440 mm |
Warranty description | Lifetime |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns |
Specification data - WC pans
Standard | To BS EN 997. |
Form | Back-to-wall, washdown. |
Connecting dimensions | To BS EN 33. |
Pan height | 400 mm. |
Materials | |
Body | Vitreous china. |
Finish and colour | Polished.Manufacturer guidanceWhite. |
Water supply, outlet and seat holes | |
Water supply | Top inlet. |
Outlet | Horizontal back outlet. |
Seat holes | Standard pattern. |
Dimensions | 380 x 590 x 400 mm. Guidance for specification option: W x D x H. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Vitreous china |
Third party certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
EPD
EPD - Ceramic Vitreous China
