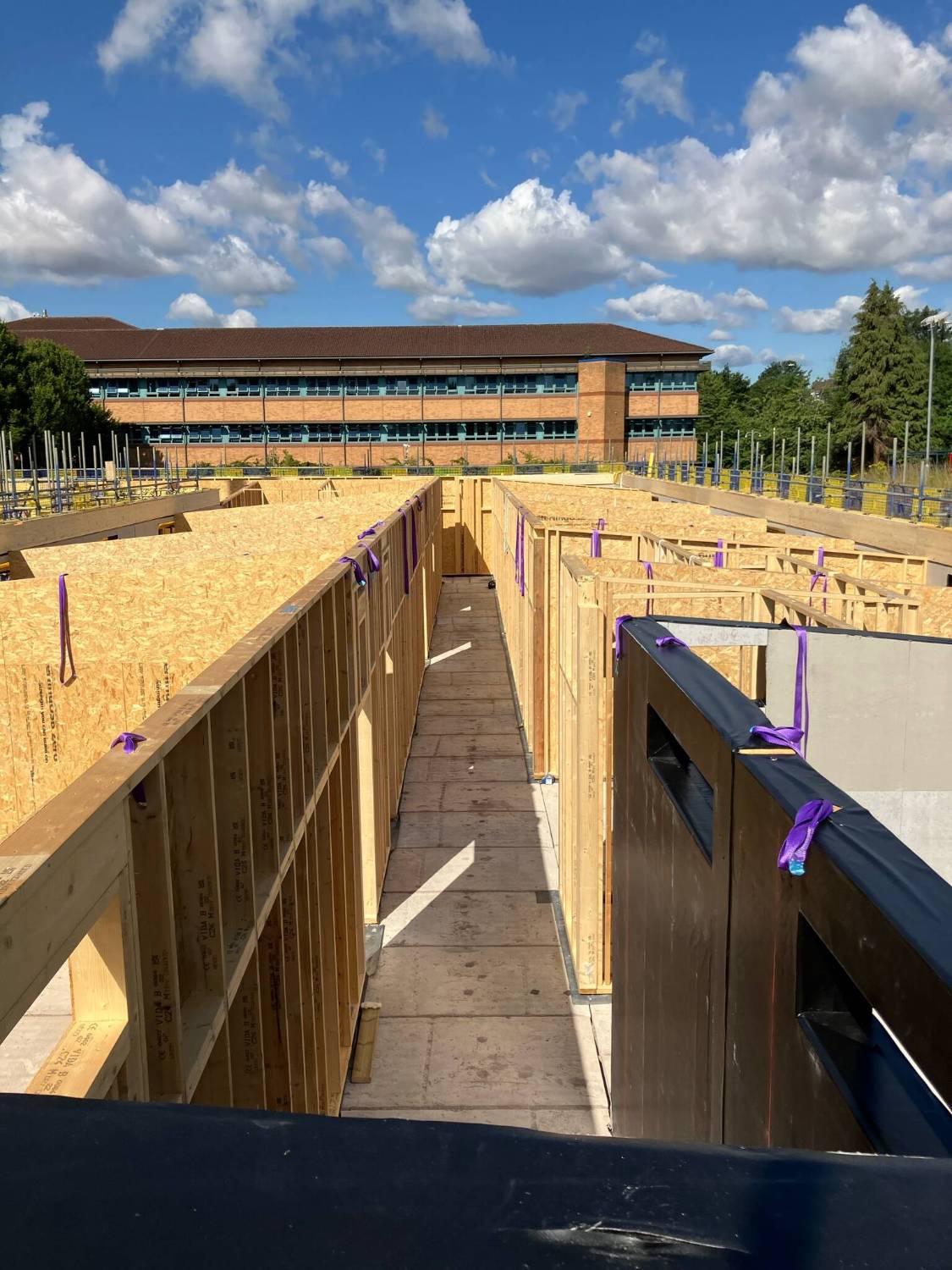

i-Partition - Fire Rated Timber Framed Partition Wall
Verified by manufacturer 26 days ago
Fire Safety Certification
Certificate type
Timber Framed Internal Partition Wall (load bearing / non-loadbearing) to be specified in conjunction with the Innovaré Offsite i-FAST external wall
Application
internal partitions, racking walls, compartment walls or load bearing walls.
Description
Timber Framed Internal Wall Partition as an alternative to SFS delivered with the i-FAST external wall panel SS_25_10_32_90.
Load bearing or non-load bearing REI 30,60,120.
Manufactured offsite in a controlled factory environment, internal timber framed walls are a flexible and fast way to create internal partitions, racking walls, compartment walls or load bearing walls.
Please consult manufacturer for details.
Features and benefits:
- Sole plates are impregnated with mould-resistant pressure-treatment preservative.
- Fire:
- 30, 60 or 90 minutes load bearing fire resistance.
- Sheathing from cement fibre board or OSB
- 89 or 147mm thick timber framed core
- tested to EN 1365-1 (loaded fire resistance testing) up to 5m
- Acoustics:
- RW 35 - 55 dB based on acoustic modelling.
- Structure:
- Timber studs at centres to suit height and load
- Tested to Severe duty
- Designed to support line, point and surface mounted loads
- Durable high impact resistant facings with excellent fixing capacity.
Consists of the following system components:
- RCM Multipurpose cement fibre board.
- 11mm OSB/3
- Solid Softwood Timber.
Manufactured from sustainable sourced timber with low embodied carbon.
General information
Color | Other |
Finish | Other |
Material | Timber |
Shape | Rectangle Square Other |
Length | 7400.00 mm |
Width | 89 mm 147 mm 184 mm 300 mm |
Height | 3600.00 mm |
Warranty description | 60 year |
Uniclass |
SKU Code | TA,TB,TC |
Specification data - Timber-frame panels
Classification data | |
Performance criteria | Fire resistance period, structural capacity, acoustic attenuation, durability. |
Frame style | Platform timber-frame. |
Source | FSC-certified supplier and PEFC certified supplier. |
Structural supports | |
Performance criteria | Load bearing and non-load bearing. |
Studs | Structural softwood. Guidance for specification option: Graded, from sustainable sources. |
Section sizes | 38 x 89 mm. 47 x 147 mm. |
Size (length x width x height) | Guidance for specification option: Bespoke sizes available. <3800 mm height x <7200 mm length, or <5000 mm height x 2400 mm length. Consult manufacturer and insert requirements. |
Additional requirements | Fire resistant gypsum lining system. |
Frame features | |
Outer-facing sheathing | 11 mm Oriented strand board (OSB). 12 mm Fibre cement board. |
Impact performance | Severe duty rating. |
Racking strength | 1.68 kN/m. |
Inner facing | |
Insulation | |
Material | Not required. Guidance for specification option: As standard. Acoustic quilt. Guidance for specification option: Optional. |
Thickness | Not required. Guidance for specification option: No quilt. 25 mm. 50 mm. 90 mm. 150 mm. |
Fire barriers and stops | Compressible fire stopping will be applied at non-load bearing junctions with ceilings. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Sweden |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Timber |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Self-declared | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalised unit : 0.556 (kg CO₂ eq/kg) Declared unit : 9.28 | |
Recyclability | Product is Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Expected Life | 60 year |
Product certifications
Literature
Technical Document Innovare Fire Test Data - Overview
Case studies
West Coventry Academy
Thames Park Secondary School
Three Rivers Academy
Turves Green School - Education
Unity Campus, Sawston, Cambridgeshire
St. Mary's Catholic Voluntary Primary School - Education
Similar products from Innovare Offsite Limited

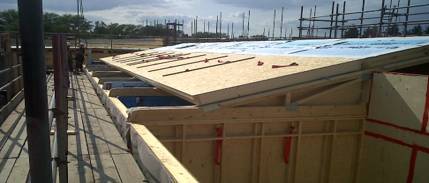

Innovare Roof - Roof Cassette
