HP60 High Temperature Monobloc Air Source Heat Pump
Verified by manufacturer 3 days ago
4 kW - HP60-4-1-PHMB
4 kW - HP60-4-1-PHMB
A self-contained outdoor air source heat pump.
Application
- Suitable for a variety of property sizes, from small homes to larger dwellings.
- Particularly suitable for retrofit applications.
Description
The Baxi HP60 ASHP delivers reliable performance and quiet operation using a low GWP 3 refrigerant. Available in a wide range of outputs, the Baxi HP60 ASHP is a self-contained outdoor air source heat pump that delivers energy performance at both high and medium temperature.
For a complete system and maximum efficiency, pair it with our Baxi ASHP Pre-plumbed Cylinder or Baxi ASHP Cylinder and smart controls.
Features and benefits:
- Available in outputs 4–13 kW, all single phase with optional triple phase for large outputs.
- Up to 75°C flow temperature at A-10°C.
- Sound power from 48 dB(A), which is the equivalent of a refrigerator hum.
- Seasonal coefficient of performance (SCOP) of up to 5.34.
- Low carbon emissions of GWP 3.
- Compatible with Baxi ASHP Pre-plumbed Cylinder and Baxi ASHP Cylinder.
- Up to 7 years’ enhanced warranty.
General information
Color | Black |
Material | Metal |
Shape | Rectangle |
Length | 426 mm 1390 mm |
Width | 1301 mm 872 mm |
Height | 725 mm 523 mm |
Warranty description | Seven year Guidance for specification option: Up to seven year enhanced warranty. Enhanced warranty options subject to terms and conditions; consult manufacturer for details. |
Uniclass | |
CAWS | T90/505 Air-to-water heat pumps |
SKU Code | 7899701 |
Specification data - Air-to-water heat pumps
Classification data | |
Standards | |
Test requirements | To BS EN 14511-2. |
Heat pump type | Monobloc. |
Mode | Heating and cooling. |
Coefficient of performance (minimum) | SCOP 35°C: 5.34. SCOP 45°C: 4.40. SCOP 55°C: 3.99. |
Integrated service fittings | Heating expansion vessel. |
Output | |
Heating | 4 kW. Manufacturer guidanceRefer to manufacturer's installation, user and service manual for further detail. |
Cooling | 4 kW. Manufacturer guidanceRefer to manufacturer's installation, user and service manual for further detail. |
Fan | |
Type | Manufacturer's standard. |
Fan drive | Manufacturer's standard. |
Configuration | Manufacturer's standard. |
Electrical supply type | Single-phase. Guidance for specification option: 220–240 V, single-phase, 50 Hz. |
Compressor | |
Type | Twin rotary/ GMCC. |
Sealing | Manufacturer's standard. |
Drive | Manufacturer's standard. |
Sound power level | 48.0 dB(A). Guidance for specification option: Sound pressure level at 1 m: 40.0 dB(A). |
Environmental rating | A+++ at 35℃; A+++ at 55℃. |
Accessories | ASHP Control. |
Refrigerant | R290. |
Operating temperature | -25℃ to +35℃. |
Connections | G 1". Manufacturer guidanceFlow/ return connections. |
Expansion Vessel Size | 8 L. Manufacturer guidanceInternal expansion vessel. |
Water pressure | 3 bar. Manufacturer guidanceMaximum water pressure. |
Dimensions | 725 x 1301 x 426 mm. Manufacturer guidanceHeight x width x depth. |
Weight | 94 kg. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Spain |
Country of product manufacture | Spain |
Material | Metal |
Recyclability | Manufacturer guidanceThe unit is partially recyclable:
|
Expected Life | 20 year |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Literature type
Baxi ASHP Control Installation User and Service Manual
Baxi HP60 ASHP Installation User and Service Manual
HP60-11-3-PHMB and Assure HP55-11-3-PHMB Data Sheet

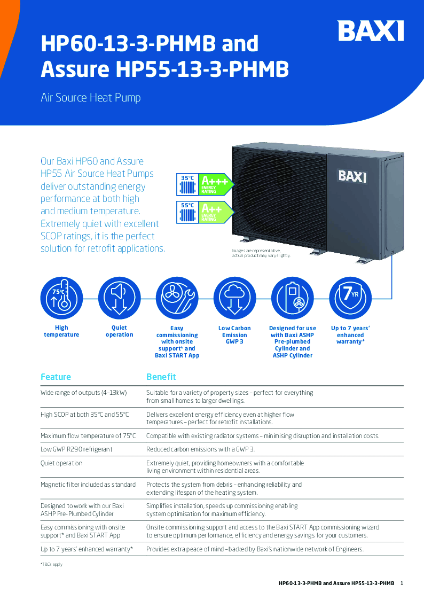

HP60-13-3-PHMB and Assure HP55-13-3-PHMB Data Sheet
HP60-13-1-PHMB and Assure HP55-13-1-PHMB Data Sheet
HP60-4-1-PHMB and Assure HP55-4-1-PHMB Data Sheet
HP60-8-1-PHMB and Assure HP55-8-1-PHMB Data Sheet

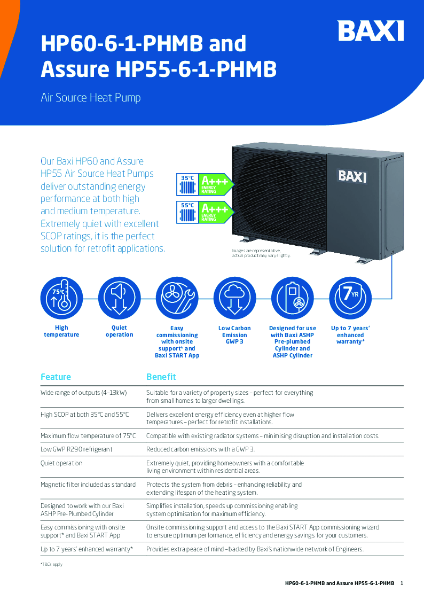

HP60-6-1-PHMB and Assure HP55-6-1-PHMB Data Sheet
