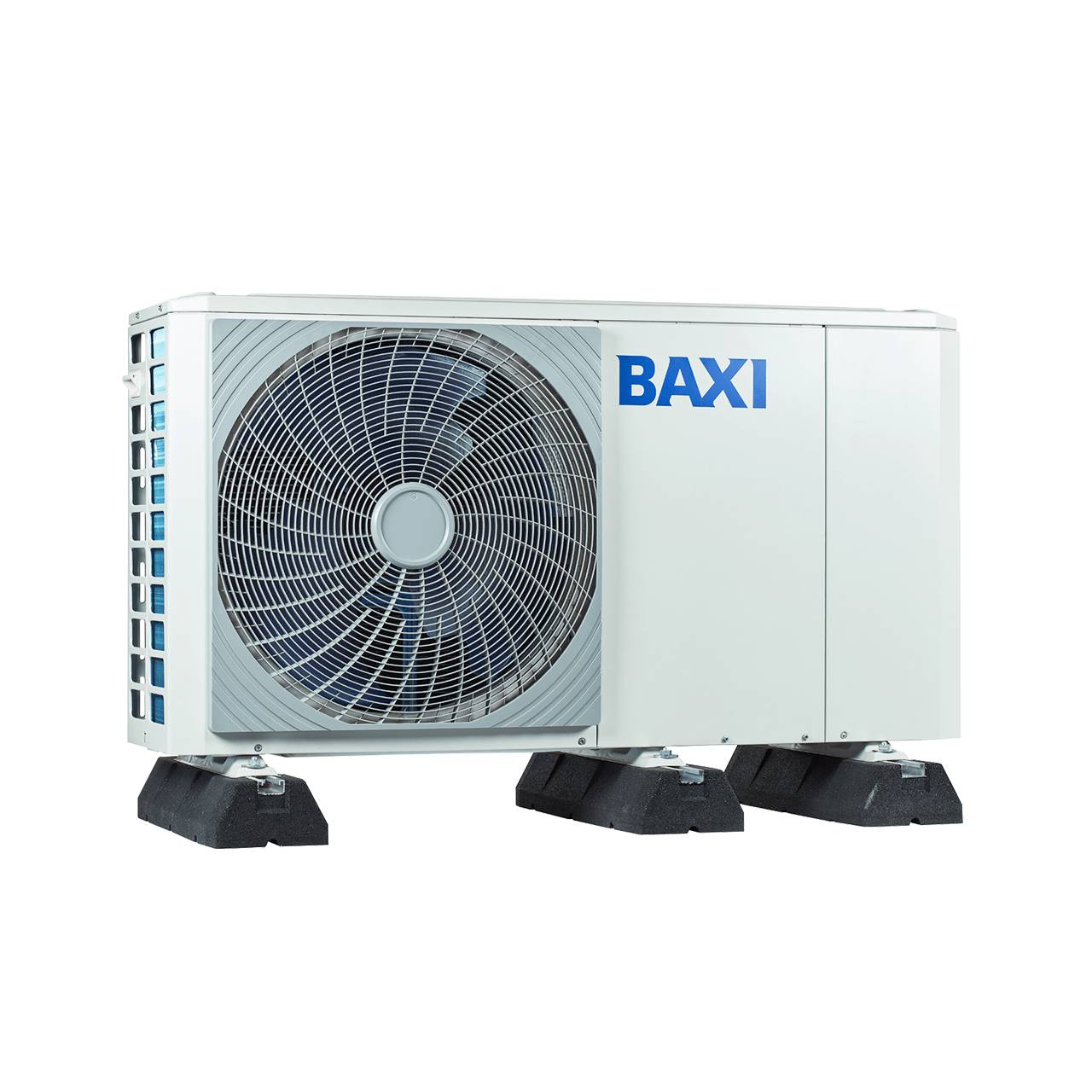

Baxi Assure HP50 Air Source Heat Pump

Verified by manufacturer 5 days ago

4 kW - HP50-4-1

BAXI HEATING UK LIMITED Variant:

High efficiency monobloc heat pump designed for stand alone or hybrid heating and hot water solutions.

Jump to:
0330 678 0140 Website

Application

Suitable for stand alone or hybrid heating and hot water solutions.

Description

A single self-contained outdoor air source heat pump (ASHP) unit. The Baxi Air Source Heat Pump provides reliable, energy-efficient heating and hot water.

Features and benefits:

  • Multiple outputs - available in outputs 4–13 kW.
  • Cheaper operating costs - SCOP up to 5.03.
  • Quiet operation - sound power down to 55 dB(A).
  • Low carbon footprint - GWP 675.
  • High temperature - up to 65°C flow temperature - particularly suitable for retrofit applications.
  • Available with an optional back-up heater to maintain comfort levels in very cold weather.
  • Easily-accessible internal components for servicing and maintenance.
  • Self-contained R32 refrigerant, giving low Global Warming Potential (GWP).
  • Monobloc design complete with integrated water pump and expansion vessel.
  • Built in outdoor temperature sensor enhances comfort by maintaining the right temperature at all times.
  • A+++ ERP rating at 35°C flow temperature.
  • Quiet in operation.
  • Up to five-year warranty for peace of mind.
  • Compatible with the Baxi Assure ASHP Hot Water Cylinder.

General information

Color

White

Material

Metal

Shape

Rectangle

Length

400 mm

448 mm

Width

1309 mm

1388 mm

Height

700 mm

850 mm

Warranty description

Five year

Guidance for specification option:

Up to five year enhanced warranty.

Enhanced warranty options subject to terms and conditions; consult manufacturer for details.

Uniclass

Pr_70_60_37_04 Air-to-water heat pumpsPrimary

CAWS

T90/505 Air-to-water heat pumps

SKU Code

7830577

Specification data - Air-to-water heat pumps

Classification data

Standards

-

Test requirements

To BS EN 14511-1, BS EN 14511-2, BS EN 14511-3 and BS EN 14511-4.

Electrical safety

To BS EN 60335-2-40.

Heat pump type

Monobloc.

Mode

Heating.

Coefficient of performance (minimum)

SCOP 35°C: 4.66.
SCOP 45°C: 3.93.
SCOP 55°C: 3.19.

Integrated service fittings

Integrated water pump and expansion vessel.

Output

-

Heating

4 kW.

Manufacturer guidance

Refer to manufacturer's technical data sheets for further detail.

Fan

-

Type

Axial.

Fan drive

Direct.

Configuration

Horizontal.

Electrical supply type

Single-phase.

Guidance for specification option:

220–240 V, single-phase, 50 Hz.

Compressor

-

Type

Scroll.

Sealing

Hermetically sealed.

Drive

Inverter-driven.

Sound power level

55 dB(A).

Guidance for specification option:

Sound pressure level at 1 m: 45 dB(A).

Environmental rating

A+++ at 35℃.
A++ at 55℃.

Accessories

Not required.
Back-up heater.

Refrigerant

R32.

Operating temperature

-25℃ to +35℃.

Connections

G 1".

Manufacturer guidance

Flow/ return connections.

Expansion Vessel Size

8 L.

Manufacturer guidance

Internal expansion vessel.

Water pressure

3 bar.

Manufacturer guidance

Maximum water pressure.

Dimensions

700 x 1309 x 400 mm.

Manufacturer guidance

Height x width x depth.

Weight

86 kg (net); 107 kg (gross).

Sustainability data

Contains Red List materials

No

Material

Metal

Recyclability

-

Manufacturer guidance

The unit is partially recyclable:

  • Metals (copper, aluminum, steel) can be recovered.
  • Plastics and refrigerants require specialist recycling.
  • Baxi supports responsible disposal through certified waste handlers.

Expected Life

20 year

Literature

Baxi Assure HP50 Monobloc ASHP Technical Specification Guide

Baxi Assure HP50 Monobloc ASHP Technical Specification Guide
