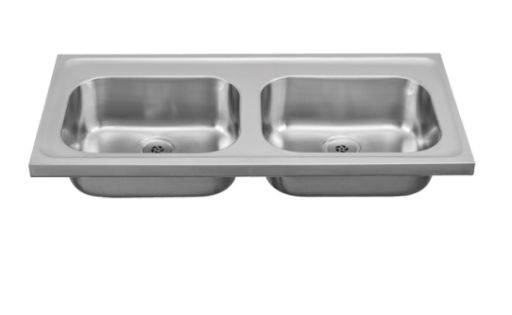

Hospital Sink - G22004
Verified by manufacturer over a year ago

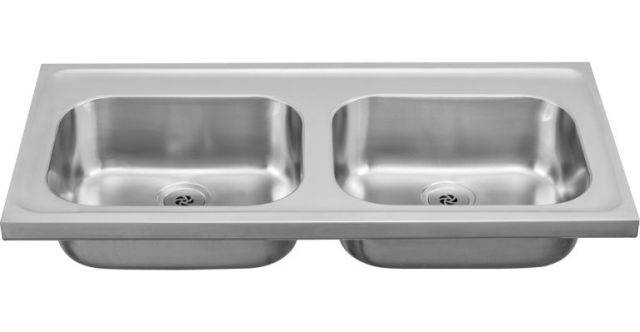

SK2 double bowl hospital sink.
Application
For hospital settings.
Description
A double bowl sink.
Features and benefits:
- Mounted on either stainless steel cantilever brackets or stainless steel front leg supports (available separately).
- No drainer.
- Installing sink assemblies on brackets or leg frames.
- Unit mounted taps can be supplied.
- Standard models are provided without tap holes, for use with wall mounted bib taps.
- Two 38 mm BSP flush grated waste outlet, (F2068) 203.0000.288.
General information
Finish | Satin |
Material | Stainless steel |
Shape | Rectangle |
Length | 600 mm |
Width | 1200 mm |
Height | 200 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/25 Sinks N13/331 Sinks |
Product range |
Specification data - Sinks
Form | Sit-on.Guidance for specification option: Unit mounted taps can be supplied. |
Bowls | Two. |
Drainers | None. |
Materials | |
Body | Stainless steel type 1.4301 (304). |
Finish and colour | Satin, silver.Guidance for specification option: Brushed polish satin finish. |
Size | 1200 x 600 x 200 mm.Guidance for specification option: Bowl depth 200 mm. |
Water supply, overflow and waste holes | |
Water supply | No tap holes.Guidance for specification option:
|
Waste | Two 38 mm BSP flush grated waste outlet, (F2068) 203.0000.288. |
Integral accessories | (G26523L) 215.0000.047 Cantilever wall bracket (left-hand) 40 x 180 x 557 mm.(G26523R) 215.0000.049 Cantilever wall bracket (right-hand), 40 x 180 x 557 mm.(G26524L) 215.0000.050 Front leg support, left-hand.(G26524R) 215.0000.052 Front leg support, left-hand. |
Execution | Installing sink assemblies on brackets or leg frames. |
Product Reference | (G22004N) 215.0000.017 |
Accessories/ Other requirements | Not required. (G26523L) 215.0000.047 Cantilever wall bracket (left-hand) 40 x 180 x 557 mm. Guidance for specification option: Cantilever wall bracket (left-hand) 40 x 180 x 557 mm. (G26523R) 215.0000.049 Cantilever wall bracket (right-hand), 40 x 180 x 557 mm. Guidance for specification option: Cantilever wall bracket (right-hand), 40 x 180 x 557 mm. (G26524L) 215.0000.050 Front leg support, left-hand. Guidance for specification option: Front leg support, left-hand. (G26524R) 215.0000.052 Front leg support, left-hand. Guidance for specification option: Front leg support, left-hand. |
Steel thickness | 1.2 mm. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
