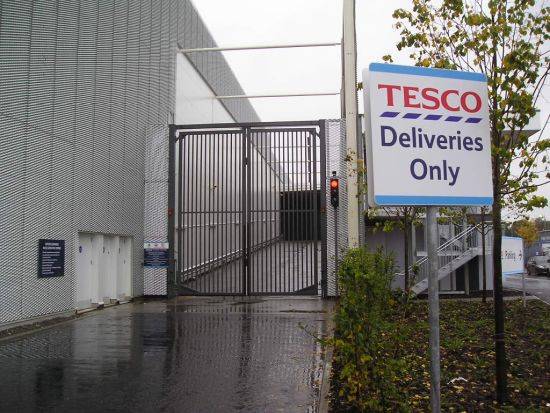

Hinged/ Swing Automatic Vehicle Gates - Hinged/Swing Automatic Vehicle Gate
Verified by manufacturer 2 months ago
Hinged/ swing automatic vehicle gates. Security Hinged Gate - not impact rated.
Application
Suitable for controlling vehicle access in factories and commercial premises, banks, embassies, warehouses and distribution centres, hospitals, airports and transport terminals.
Description
Automatic hinged and swing gates are designed to provide a high degree of security within a fence line where the runback required for a sliding gate installation is not available. A choice of automation depending on the size of the gate: Gate back actuators (hydraulic), Dutyman actuators (electro-mechanical) and underground Trojan actuators (hydraulic). Heavy-duty rams with PLC-controlled slowdown to ensure quick and safe operation. Operational speed is drive dependent. Contact manufacturer for details.
Features and benefits:
- Can be custom made designed to match project requirements.
- Compliant with BS EN 13849.
General information
Finish | Painted Guidance for specification option: Shot blasted, hot zinc sprayed, primed and finished with a final coat of polyurethane paint to a BS or RAL number. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493. |
Material | Steel |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | Q40/45 Gates Q40/570 Gates |
Product range |
Specification data - Carbon steel gates
Standard | To BS EN 13241-1:2003 and BS EN 1627:2021. |
Dimensions | |
Span | Manufacturer guidanceInsert requirement.
|
Height | Manufacturer guidance2400 mm (standard), bespoke available . Insert requirement. |
Posts | Square, 240 mm. |
Gate leaves | Bar.Bar and weldmesh infill.Ornate.Palisade.Perforated steel sheet.Sheet.Special order.Guidance for specification option: Contact manufacturer's technical sales department and insert requirements. Weldmesh.Wooden cladded gate. |
Hardware | |
Securing | Locking bolt.Shoot bolt.Drop bolt. |
Operating | Electro mechanical - dutyman actuator.Hydraulically driven - trojan actuator. |
Finish as delivered | |
Worked finish | Shot blasted. |
Applied finish | Polyurethane painted.Guidance for specification option: Hot zinc sprayed, primed and finished with a final coat of polyurethane paint to a BS or RAL number. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493. |
Access control | ANPR – Automatic number plate recognition Audio intercom Card reader Digital keypad GSM intercom |
Accessories | None. 100 mm diameter red/ green LED traffic light head with monitored safety circuit. Biodegradable oil. Control pedestal – dual height. Control pedestal – HGV height. |
Colour | Manufacturer guidanceInsert BS or RAL requirement. |
Top protection | Not required. Anti-climb rotating strip. Anti-climb serrated edges. |
Door leaves | 2.4 x 5 m. Guidance for specification option: Hinged single leaf, standard height. 2.4 x 10 m. Guidance for specification option: Hinged single leaf, maximum height. 5 x 5 m. Guidance for specification option: Hinged double leaf, standard height. 5 x 10 m. Guidance for specification option: Hinged double leaf, maximum height. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
