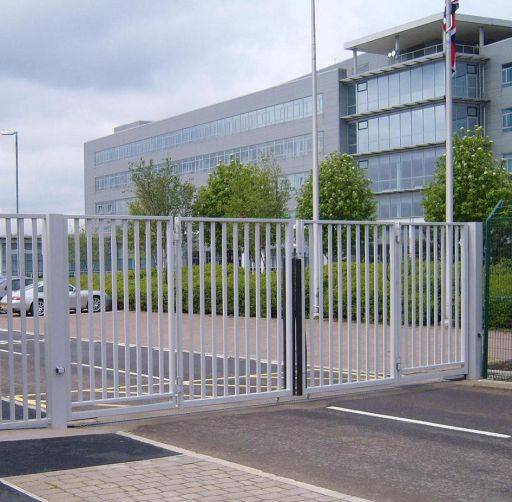

Bi-folding Speed Gates (Double Leaf up to 10 m) Trojan Actuator
Verified by manufacturer 2 months ago
Bi-folding Speed Gate. Security Gate - not impact rated.
Application
Controls vehicle access in factories and commercial premises, banks, embassies, warehouses and distribution centres, hospitals, airports and transport terminals. Suitable for sites with limited gate operation area.
Description
Automatic bi-folding speed gates are fast-acting security gates designed to provide a high degree of security. The gates are available in a wide range of styles to complement both contemporary and traditional architectural designs. They are custom made to match company-specific requirements. Guided and trackless models are also available. Compliant with BS EN 13849. Heavy-duty rams with PLC-controlled slowdown to ensure quick and safe operation. 100% duty rated. Operational speed is drive dependent. Contact manufacturer for details.
Features and benefits:
- Fast-acting.
- Fully-welded construction.
General information
Finish | Painted |
Material | Steel Guidance for specification option: Low-carbon. |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | Q50/20 Gate Q50/130 Gate Q40/570 Gates Q40/45 Gates |
Product range |
Specification data - Carbon steel gates
Dimensions | |
Span | Manufacturer guidanceInsert requirement or refer to drawing or schedule. Available up to 10 000 mm. |
Height | Manufacturer guidanceInsert requirement or refer to drawing or schedule. 2400/4500 mm (standard/ maximum). |
Finish as delivered | |
Worked finish | Shot blasted. |
Applied finish | Galvanized/ painted.Guidance for specification option: Hot zinc sprayed, primed and finished with a final coat of polyurethane paint to a BS or RAL number. This process provides a 20-year corrosion protection system for exterior, industrial polluted inland sites to BS 5493. |
Colour | Guidance for specification option: Insert BS or RAL requirement. |
Access control | ANPR - Automatic number plate recognition. Audio intercom. Digital keypad. GSM intercom. HMI – Human machine interface. |
Accessories | None. 100 mm diameter red/ green LED traffic light head with monitored safety circuit. Biodegradable oil. Control pedestal – dual height. Control pedestal – HGV height. |
Actuation/ Safety | Not applicable. Guidance for specification option: For manual operation. Audible alarms. Flashing beacons. Gate back actuators (hydraulic). Induction loop/ Vehicle detector loop system. |
Gate guide | Overhead guidance (Trackless). Underground guidance. |
Gate infill | Bar. Bar and weldmesh infill. Ornate. Palisade. Perforated steel sheet. |
Top protection | Not required. Anti-climb rotating strip. Anti-climb serrated edges. |
Type | Automatic; electro-mechanical, bottom guidance. Automatic; electro-mechanical, overhead top guidance. Automatic; electro-mechanical, trackless. Automatic; hydraulic, bottom guidance. Automatic; hydraulic, overhead guidance. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 2 |
 Revit | Revit 2016 | 3 |
Literature

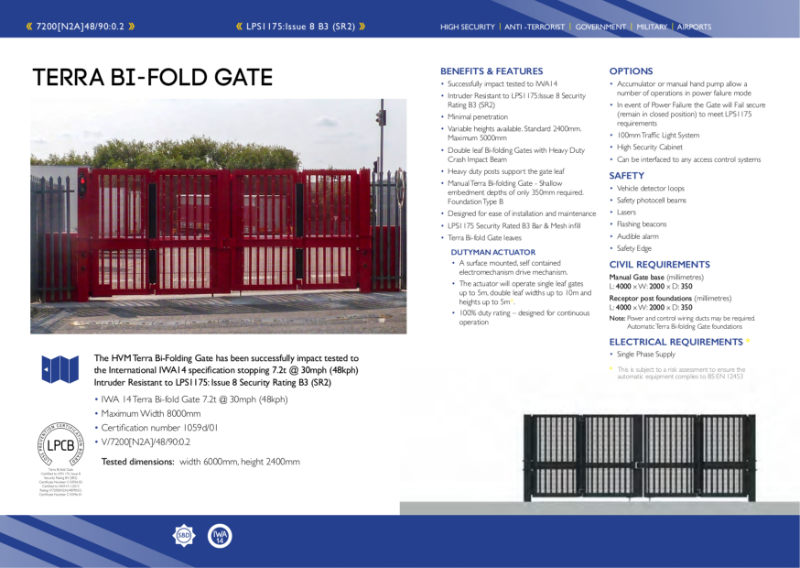

HVM Terra Bi-fold Gate - IWA14 & LPS1175
