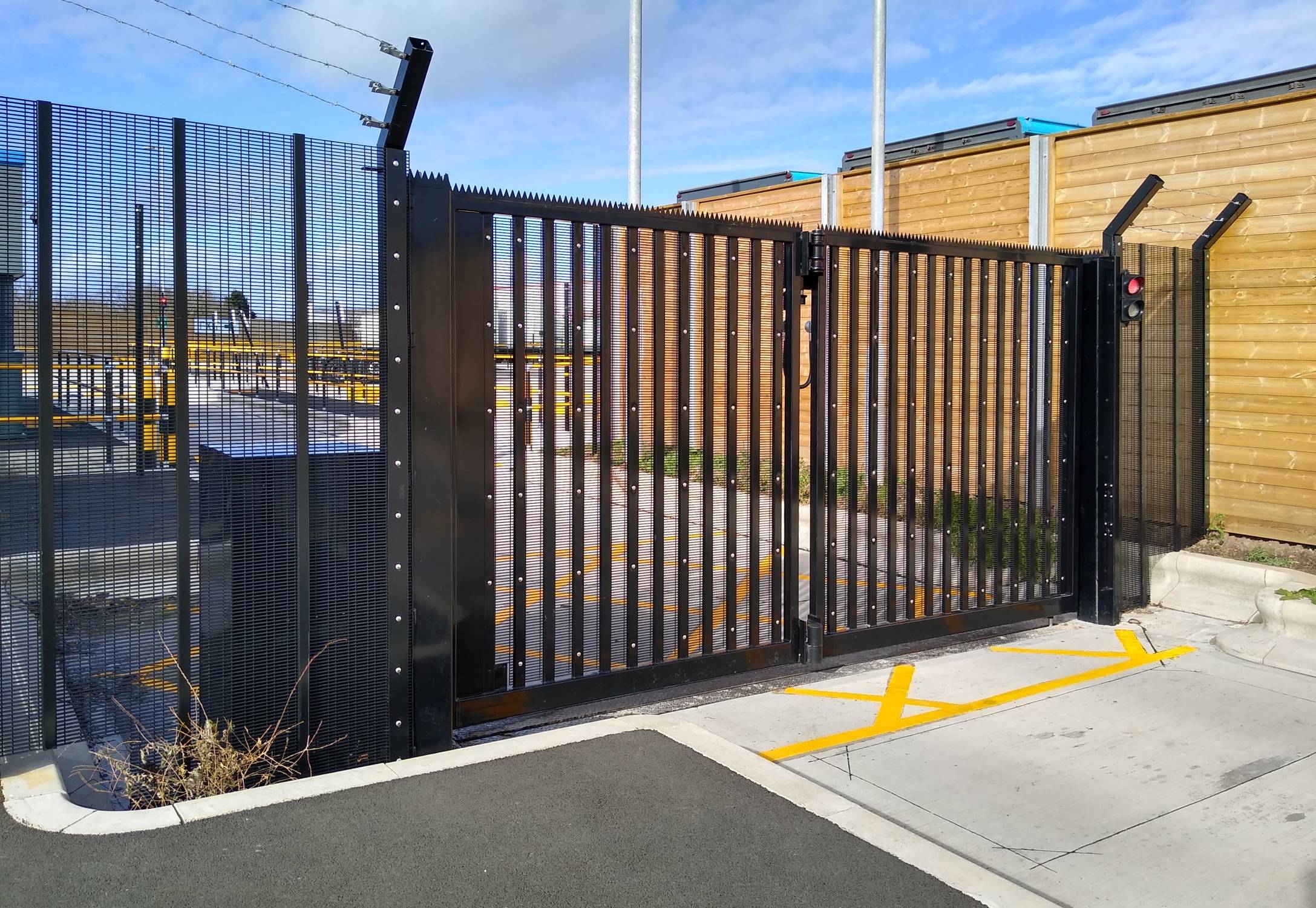

Bi-folding Speed Gates (Single Leaf up to 5 m) Dutyman Actuator - Single Leaf Bi-fold Gate
Verified by manufacturer 2 months ago
Bi-folding Speed Gate.
Application
For high security, government, local authority, industrial, commercial applications. Suitable for sites with limited gate operation area.
Description
Bi-folding Speed Gates (Single Leaf up to 5 m) Dutyman Actuator. Bespoke fully welded construction of rectangular hollow section gate, low carbon steel to BS 4848-2. Operation with a Dutyman Actuator MKII is a self-mounted, self-contained electromechanical drive mechanism. The actuator will operate single leaf gates up to 5 m and double leaf widths up to 10 m with heights up to 6 m (dependent on a risk assessment to ensure the automatic equipment complies to BS EN 12453). It has a 100% operating duty cycle designed for continuous and frequent use. Manufactured to suit site requirements and programmed to control specifications.
Features and benefits:
- Secures apertures up to 10 m.
- Standard height: 2400 mm, maximum height of 6000 mm.
- Fully-welded construction.
- Choice of infills, including security weldmesh, bar and weldmesh, sheet, decorative and wood.
- Bespoke manufacturing.
- Fast-acting.
- Dutyman actuator is 6–10 times more powerful than standard drives.
- Speed control for extra-high torque.
General information
Finish | Painted Guidance for specification option: Shotblasted, hot zinc sprayed, primed and finished with a final coat of polyurethane paint to a BS or RAL number. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493. |
Material | Steel Guidance for specification option: Low carbon. |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | Q50/130 Gate Q50/20 Gate Q40/570 Gates Q40/45 Gates |
Product range |
Specification data - Carbon steel gates
Dimensions | |
Span | Manufacturer guidanceInsert requirement or refer to drawing or schedule. Single leaf gates up to 5 m and double leaf widths up to 10 m. |
Height | Manufacturer guidanceInsert requirement or refer to drawing or schedule. 2400 mm as standard, maximum height of 6000 mm. |
Finish as delivered | |
Worked finish | Shot blasted. |
Applied finish | Polyurethane painted. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 3 |
 IFC | - | 2 |
Literature
Frontier Pitts Bi-folding Gate
