Hermetically Sealing Sliding Door – Fire Rated

Name: Hermetically Sealing Sliding Door – Fire Rated
Brand: Dortek Ltd
SKU: 4Toxqdujd4mLiB38fcgM9F

Verified by manufacturer 2 months ago

Fire rating 30

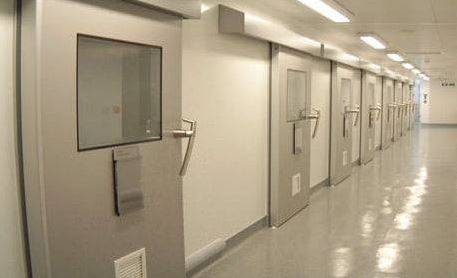

A hermetically sealing sliding door for use in pharmaceutical facilities, healthcare and cleanrooms.

Jump to:

BOS

Application

Suitable for the following applications:

A hermetically sealing sliding door which is designed for use in pharmaceutical facilities and cleanrooms.

Features and benefits:

Dortek hermetic fire doors are designed to provide fire protection and air control in conditioned areas.
The door has an exclusive patented track system which enables it to seal perfectly when closed, helping to reduce air handling costs, cross contamination and wound infections. Air leakage has been tested independently and results up to 400 Pa pressure are available.
A flush seamless surface with an attractive finish which is easy to keep clean. Free from ledges and gaps to eliminate breeding grounds for bacteria. These doors make optimal use of room space and cause less accidents when opening and closing.
Controls air leakage.
Lower air handling costs.
Reduces cross contamination.
Smooth hygienic surface.
Safe reliable, low maintenance.
No floor track required.
Good sound reduction creates quiet working environment.
Fire resistant up to one hour.

Color	Blue White Manufacturer guidance Choice of Dortek standard colours, see chart or any RAL/ BS to order.
Finish	Laminated
Material	High pressure laminate (HPL)
Shape	Rectangle
Width	Bespoke Guidance for specification option: 800—2000 mm inside frame width.
Height	Bespoke Guidance for specification option: 2100—2700 mm inside frame height.
Warranty description	One year

Uniclass	Pr_30_59_24_80 Sliding door and partition setsPrimary
CAWS	L20/490 Automatic doors L20/520 Sliding doors L20/60 Doors

Product range	Doors / Hermetic Doors Doors / Fire Doors Doors / Sliding Doors

Track system	Anodized aluminium rail system with nylon bearings.
Door leaves	-
Construction	Hard plastic laminate facing over PU core. Guidance for specification option: 60 mm thick with a 1 mm thick hard plastic laminate facing on 5 mm thick board and a 48 mm thick core. Framed in anodized aluminium profiles.
Finish and colour	F2255 Polar White. F2296 Sno White. F7927 Folkestone. F1998 Oslo. F7880 Thistle. F5127 Monaco. F2828 Tropical Blue. F7851 Spectrum Blue. F2833 Sandstone. F2731 Sand Maple. F2887 Savoy Beech. F2510 Golden Morning Oak. Other. Guidance for specification option: Other finishes may be available upon request.
Operation	Automatic. Guidance for specification option: Automated doors include a micro-processor controlled safety photo-cell with in-built safety sensor to open the door if obstructed. Interlocking systems available. Other methods of actuation available - contact manufacturer.

Fire resistance	30 minutes.
Vision panels	300 x 600 mm. 400 x 400 mm. 600 x 600 mm.
Canopy	Aluminium with sloping top. Stainless steel with sloping top. Steel, polyester powder coated white with sloping top.
FrameMaterial	Stainless steel.
Guides	Internal bottom track with nylon guide.
Width	800 - 1850 mm. 2100 - 2300 mm.
Handles	Stainless steel D handle and flush grip. Stainless steel lever handle both sides.
Battery back-up	Not required. Required.
Type	Automated with two infra-red detectors. Automated with two push buttons. Automated with two touchless sensors.
