Summary
A hermetically sealing sliding door for use in pharmaceutical facilities, healthcare and cleanrooms.
A hermetically sealing sliding door for use in pharmaceutical facilities, healthcare and cleanrooms.
Application
Suitable for the following applications:
- Pharmaceutical facilities.
- Operating theatres.
- Laboratories.
- Intensive care units.
- Hospitals.
Suitable for the following applications:
- Pharmaceutical facilities.
- Operating theatres.
- Laboratories.
- Intensive care units.
- Hospitals.
Description

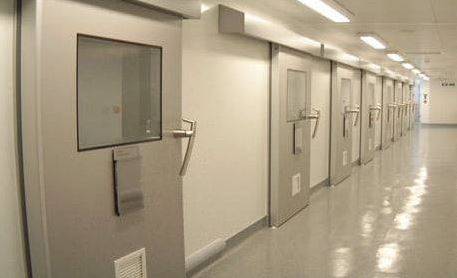

A hermetically sealing sliding door which is designed for use in pharmaceutical facilities and cleanrooms.
Features and benefits:
- Dortek hermetic fire doors are designed to provide fire protection and air control in conditioned areas.
- The door has an exclusive patented track system which enables it to seal perfectly when closed, helping to reduce air handling costs, cross contamination and wound infections. Air leakage has been tested independently and results up to 400 Pa pressure are available.
- A flush seamless surface with an attractive finish which is easy to keep clean. Free from ledges and gaps to eliminate breeding grounds for bacteria. These doors make optimal use of room space and cause less accidents when opening and closing.
- Controls air leakage.
- Lower air handling costs.
- Reduces cross contamination.
- Smooth hygienic surface.
- Safe reliable, low maintenance.
- No floor track required.
- Good sound reduction creates quiet working environment.
- Fire resistant up to one hour.
A hermetically sealing sliding door which is designed for use in pharmaceutical facilities and cleanrooms.
Features and benefits:
- Dortek hermetic fire doors are designed to provide fire protection and air control in conditioned areas.
- The door has an exclusive patented track system which enables it to seal perfectly when closed, helping to reduce air handling costs, cross contamination and wound infections. Air leakage has been tested independently and results up to 400 Pa pressure are available.
- A flush seamless surface with an attractive finish which is easy to keep clean. Free from ledges and gaps to eliminate breeding grounds for bacteria. These doors make optimal use of room space and cause less accidents when opening and closing.
- Controls air leakage.
- Lower air handling costs.
- Reduces cross contamination.
- Smooth hygienic surface.
- Safe reliable, low maintenance.
- No floor track required.
- Good sound reduction creates quiet working environment.
- Fire resistant up to one hour.
Digital objects
Color
Blue, White
Blue, White
Finish
Laminated
Laminated
Material
High pressure laminate (HPL)
High pressure laminate (HPL)
Shape
Rectangle
Rectangle
Width
Bespoke
Bespoke
Height
Bespoke
Bespoke
Warranty description
One year
One year
Specification
Classification data
Track system
Anodized aluminium rail system with nylon bearings.
Anodized aluminium rail system with nylon bearings.
Door leaves
-
-
Construction
Hard plastic laminate facing over PU core.
Hard plastic laminate facing over PU core.
Finish and colour
F2255 Polar White., F2296 Sno White., F7927 Folkestone., F1998 Oslo., F7880 Thistle., F5127 Monaco., F2828 Tropical Blue., F7851 Spectrum Blue., F2833 Sandstone., F2731 Sand Maple., F2887 Savoy Beech., F2510 Golden Morning Oak., Other.
F2255 Polar White., F2296 Sno White., F7927 Folkestone., F1998 Oslo., F7880 Thistle., F5127 Monaco., F2828 Tropical Blue., F7851 Spectrum Blue., F2833 Sandstone., F2731 Sand Maple., F2887 Savoy Beech., F2510 Golden Morning Oak., Other.
Operation
Automatic.
Automatic.
Additional properties
Fire resistance
30 minutes.
60 minutes.
Vision panels
300 x 600 mm., 400 x 400 mm., 600 x 600 mm.
300 x 600 mm., 400 x 400 mm., 600 x 600 mm.
Canopy
Aluminium with sloping top., Stainless steel with sloping top., Steel, polyester powder coated white with sloping top.
Aluminium with sloping top., Stainless steel with sloping top., Steel, polyester powder coated white with sloping top.
FrameMaterial
Stainless steel.
Stainless steel.
Guides
Internal bottom track with nylon guide.
Internal bottom track with nylon guide.
Width
800 - 1850 mm., 2100 - 2300 mm.
800 - 1850 mm., 2100 - 2300 mm.
Handles
Stainless steel D handle and flush grip., Stainless steel lever handle both sides.
Stainless steel D handle and flush grip., Stainless steel lever handle both sides.
Battery back-up
Not required., Required.
Not required., Required.
Type
Automated with two infra-red detectors., Automated with two push buttons., Automated with two touchless sensors.
Automated with two infra-red detectors., Automated with two push buttons., Automated with two touchless sensors.
Sustainability data
Contains Red List materials
No
No
