Dortek Hermetic Sealing Sliding Lead Lined X-Ray Doors
Verified by manufacturer 3 days ago
Hospital door with hermetically sealing sliding action. Lead lined for X-ray environments.
Application
Suitable for the following applications:
- X-ray theatres.
- Operating theatres.
- Isolation wards.
- Hospitals.
- Veterinary practices.
- Research laboratories.
- ICU doors
Description

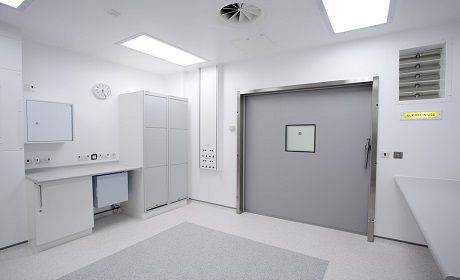

Hermetically sealing sliding lead lined X-ray hospital door.
Features and benefits:
- Dortek hermetic lead lined doors are designed for areas requiring hygiene, X-ray protection and air leakage control.
- The door has a unique patented track system which enables it to seal perfectly when closed, helping to reduce air handling costs, cross contamination and wound infections. Air leakage has been tested independently and results up to 400 Pa pressure are available.
- A flush seamless surface with an attractive finish which is easy to keep clean. Free from ledges and gaps to eliminate breeding grounds for bacteria. These doors make optimal use of room space and cause less accidents when opening and closing.
- Controls air leakage.
- Lower air handling costs.
- Reduces cross contamination.
- Smooth hygienic surface.
- Radiation proof.
- Safe reliable, low maintenance.
- No floor track required.
- Good sound reduction creates quiet working environment.
General information
Color | Blue White |
Finish | Laminated |
Material | High pressure laminate (HPL) |
Shape | Square Rectangle |
Uniclass | |
CAWS | L20/490 Automatic doors L20/520 Sliding doors L20/60 Doors |
Product range |
Specification data - Sliding door and partition sets
Track system | Anodized aluminium rail system with nylon bearings. |
Door leaves | |
Finish and colour | F2255 Polar White.F2296 Sno White.F7927 Folkestone.F1998 Oslo.F7880 ThistleF5127 Monaco.F2828 Tropical Blue.F7851 Spectrum Blue.F2833 Sandstone.F2731 Sand Maple.F2887 Savoy Beech.F2510 Golden Morning Oak.Other.Guidance for specification option: Other finishes may be available upon request. |
Operation | Guidance for specification option: Automated doors include a micro-processor controlled safety photo-cell with in-built safety sensor to open the door if obstructed. Interlocking systems available. Other methods of actuation available - contact manufacturer. |
Door frame | Anodized aluminium corner profile. Stainless steel. |
X-ray protection | 1 mm thick lead sheet under surface of door leaf. 2 mm thick lead sheet under surface of door leaf. |
Vision panels | 300 x 600 mm. 400 x 400 mm. 600 x 600 mm. Manufacturer guidanceDouble glazed. |
Canopy | Aluminium with sloping top. Stainless steel with sloping top. Steel, polyester powder coated white with sloping top. |
Handles | Stainless steel D handle and flush grip. Stainless steel lever handle both sides. |
Materials | Guidance for specification option: 60 mm thick with a 1 mm thick hard plastic laminate facing on 5 mm thick board and a 48 mm thick polyurethane core. Framed in anodized aluminium profiles. |
Guides | Internal bottom track with nylon guide. |
Door width | 1000–1100 mm. 1200–1600 mm. 1700–2000 mm. Bespoke. Guidance for specification option: Special sizes available upon request, consult manufacturer. Manufacturer guidanceStandard door blade widths. |
Height | 2100 mm. 2400 mm. Manufacturer guidanceStandard door blade heights. |
Sustainability data
Contains Red List materials | No |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
