HERADESIGN® Superfine Alpha+ - Wood Wool Panel

Verified by manufacturer 3 months ago

System: A2.1, A2.2

Knauf Ceiling Solutions Limited Variant:

HERADESIGN® – the brand for high-quality acoustic solutions made of magnesite-bonded wood wool panels from Knauf Ceiling Solutions. The precise synergy of sound absorbing HERADESIGN® ceiling and wall

Jump to:
+44 (0)191 518 8600 Website

Application

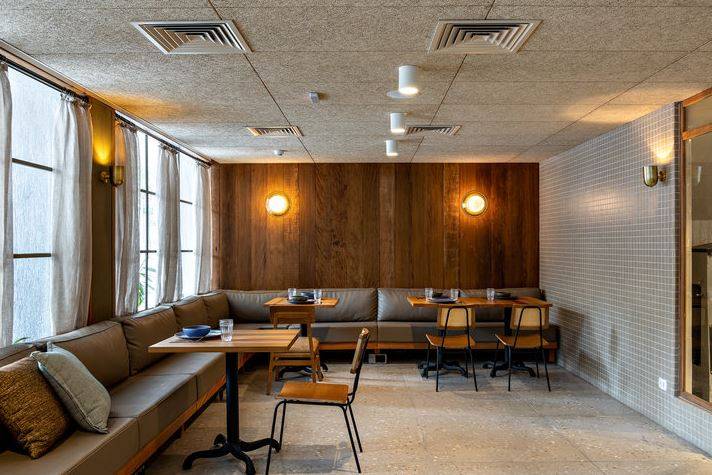

A decorative and acoustically effective suspended ceiling and wall panel for use in interior spaces as well as roofed outdoor areas that are not directly exposed to environmental influences such as rain or pollutants.

Description

HERADESIGN® Superfine Alpha+ provides a high sound absorption performance made possible by the innovative combination of a wood wool acoustic board with a special a non-woven acoustic fleece laminated on to the back of the panel.


Features and benefits:

  • Homogeneous wood wool panels with acoustic fleece.
  • Highest absorption (class A) without mineral wool insulation material.
  • Less obstruction in the ceiling void making installation, maintenance, disassembly and recycling easier.
  • The sound absorption performance is increased compared to a standard panel – up to class A without increasing the thickness.
  • Available in 15 mm, 25 mm and 35 mm thickness and a wide range of edge details.


HERADESIGN® Alpha+ is the new product line within the successful range of wood wool acoustic panels from Knauf Ceiling Solutions. In addition to the existing product lines, the fleece-laminated HERADESIGN® Alpha+ offers the proverbial plus in acoustic efficiency, effectiveness, ecology and design options.


HERADESIGN® Alpha+ stands for highly absorbing performance properties, made possible by an innovative composite construction of wood wool acoustic panels and reverse-side laminated acoustic fleece. Thus, with HERADESIGN® Alpha+, architects and planners have at their disposal an alternative that is increasingly favoured by the market and consequential in terms of ecological building compared to other composite constructions and replaces the classic acoustic pads.


The change from a two-layer product with a mineral wool layer to  a homogeneous product with an acoustic fleece layer achieves and ensures at least double the loading volume when  transporting the panels by truck or container, resulting in a significant reduction of CO₂ emissions.


The fleece for lamination of wood wool, corresponds with  customers’ ever increasing requirements and demands for consistent use of natural materials in composite construction.


  • The fleece lamination improves the panel’s acoustic properties  without change to the existing, standard thickness, 15mm, 25mm and 35mm.
  • The panel’s new design construction facilitates the choice among all edge finishes and systems.
  • Ball impact resistant installation can be guaranteed in accordance with DIN 18 032 / part 3 resp. class 1A as to EN 13964  attachment D.
  • Alpha+ makes possible constructions with the highest absorption, class A, without the use of inorganic fibre insulation materials.
  • The necessity for foil packaging of mineral wool for trickle protection is not required.
  • The wood wool acoustic panels can be installed in one go which saves time and cost. The material can be installed in a  lengthwise as well as a crosswise traversing direction.
  • Cavity remains free of loose acoustic layers, therefore installations are freely accessible.
  • The flexible design structure offers advantages during disassembly.
  • The flexible design simplifies the disposal or recycling.

General information

Color

Other

Beige

Black

Blue

Bronze

Show more

Finish

Wood grain

Material

Wood wool

Shape

Circle

Elliptical

Diamond

Formless

Hexagon

Show more

Length

600 mm

1200 mm

Bespoke

Width

600 mm

Bespoke

Height

15 mm

25 mm

35 mm

Warranty description

-

Manufacturer guidance

Please request EPD from Knauf Ceiling Solutions.

Uniclass

Pr_25_71_97_97 Wood-wool boardsPrimary

CAWS

K40/115 Unit/ modular suspended ceiling system

K40/10 Unit/ modular suspended ceilings

K40/105 Suspended ceiling system

Specification data - Wood-wool boards

Standard

To BS EN 13168.

Third-party certification

FSC certified, PEFC certified, EDP certified.

Thermal conductivity (maximum)

To EN 12667, 0.09 W/mK.

Reaction to fire classification

To EN 13501-1, Euroclass B-s1,d0.

Thickness

15 mm.

Recycled content

-

Manufacturer guidance

Please request EPD and data sheet.

17—25%.

System

A2.1, A2.2.

Edge detail

VK-09.

Dimensions

600 x 600 mm.

625 x 625 mm.

1200 x 600 mm.

1250 x 625 mm.

Other.

Guidance for specification option:

Additional sizes on request. Consult manufacturer and insert requirements.

Weight

7.8—12.6 kg/m².

Guidance for specification option:

  • 15 mm thick: 7.8 kg / m².
  • 25 mm thick: 12.6 kg / m².

Noise reduction coefficient

Up to 0.85 NRC.

Sound absorption

Up to 0.90 αw.

Sound attenuation

To DIN EN ISO 10848-2:2006, Dn,f,w up to 30 dB.

Impact resistance

To EN 13964 and DIN 18032, Class 1A.

Guidance for specification option:

  • Ceiling panelling system: B2.1, B2.2, C2.1.
  • Wall panelling system: B2.1, B2.2, S2.1.

Manufacturer guidance

Ball impact resistant.

Fire resistance

To DIN EN 1364-2, EI 30.

Constant humidity resistance

90%.

Guidance for specification option:

Suitable for rooms with a constant humidity of up to 90%. For applications where there is a constant relative air humidity in excess of 80%, expert advice for building physics is recommended.

Colour

White.

Guidance for specification option:

Standard colour. Similar to RAL 9010.

Beige.

Guidance for specification option:

Standard colour. Natural tone 13.

Granite.

Guidance for specification option:

Vario design colours.

Steel.

Guidance for specification option:

Vario design colours.

Green marble.

Guidance for specification option:

Vario design colours.

Show more

Sustainability data

Contains Red List materials

No

Country of material origin

Austria

Country of product manufacture

Austria

Material

Wood wool

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-

Manufacturer guidance

Please request EPD.

Recyclability

100

Manufacturer guidance

Please request EPD.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Please request EPD and data sheet.
