HERADESIGN® Baffle Element Profile - Ceiling baffle

Verified by manufacturer 2 days ago

HERADESIGN® Fine - 600 x 300 mm

Knauf Ceiling Solutions Limited Variant:

Element profile two-layer ceiling baffles.

Jump to:
+44 (0)191 518 8600 Website

Application

For applications including schools or public buildings, commercial and health settings.

Description

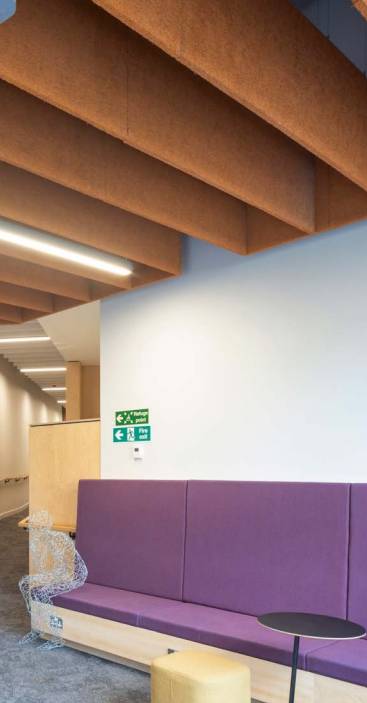

HERADESIGN® Baffle Element Profile is a two-layer cost-effective wood wool acoustic solution, with HERADESIGN® face sheets and concealed sleeves for attaching the supplied hangers.

Features and benefits:

  • They are supplied as a kit and are therefore quick and easy to install.
  • The Baffles are available in HERADESIGN® Fine and Superfine surfaces
  • Available in a range of sizes.
  • Many colours from colour systems such as RAL and NCS are possible.
  • Two-layer Baffle with HERADESIGN® face sheets and anodized aluminium profile on the top side.
  • Special shapes and dimensions are available upon request.

General information

Color

White

Beige

Black

Blue

Bronze

Show more

Finish

Wood grain

Material

Wood wool

Shape

Square

Rectangle

Length

600 mm

1200 mm

1800 mm

Width

300 mm

600 mm

Height

30 mm

Manufacturer guidance

individual product and approved KCS installed system

Warranty description

-

Manufacturer guidance

Please refer to manufactures guidelines.

Uniclass

Pr_25_71_97_97 Wood-wool boardsPrimary
Pr_35_93_13_80 Sound attenuator infill units

CAWS

K40/115 Unit/ modular suspended ceiling system

K40/270 Boards

K40/10 Unit/ modular suspended ceilings

K40/135 Board-suspended ceiling system

Specification data - Wood-wool boards

Classification data

Standard

To EN ISO 354.

Third-party certification

FSC and PEFC certified.

Reaction to fire classification

To EN 13501-1, B-s1,d0.

Thickness

30 mm.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

14%.

System

U-profile grouping system.
Hanging wire kit with ceiling rail.
Hanging wire kit without ceiling rail.
Short hanger with ceiling kit.

Weight

3.1 kg/pc.

Light reflectance

70%.

Colour

White.

Guidance for specification option:

Similar to RAL 9010.

Nature.

Guidance for specification option:

Similar to RAL 1015.

Granite

Guidance for specification option:

Similar to RAL 9005.

Steel.
Green marble.
Copper.
Oak.
Brass.
Sandstone.
Concrete.

Manufacturer guidance

Deviations in colour and visual appearance may occur due to the rough fibre and panel surface.

Form

Baffle.

Rigidity

Rigid.

Sound absorption

To EN ISO 354, αw = up to 0.55.

Size (length x width)

600 x 300 mm.

Edges

SK.

Surface pattern

Fleece.

Design

Manufacturer's standard.
Custom shape.

Guidance for specification option:

Consult manufacturer and insert requirements.

Sustainability data

Contains Red List materials

No

Country of material origin

Austria

Manufacturer guidance

Heradesign: Austria. Thermatex: Germany.


Country of product manufacture

Austria

Material

Wood wool

Recyclability

95

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

14 %

Literature

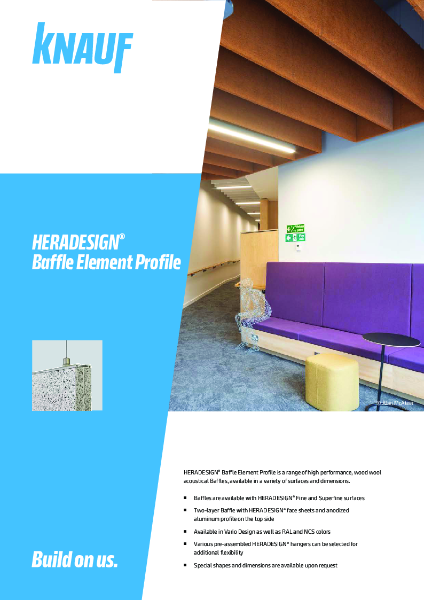

HERADESIGN® Baffle Element Profile - Product Data Sheet

HERADESIGN® Baffle Element Profile - Product Data Sheet
