HERADESIGN® Fine Alpha + - Wood Wool Panel
Verified by manufacturer 24 days ago
Fine Alpha+ - 15 mm
Fine Alpha+ - 15 mm
Homogeneous wood wool panel with acoustic fleece and higher sound absorption with the same panel thickness.
Application
For applications including schools or public buildings, commercial and health settings.
Description
Homogeneous wood wool panel with acoustic fleece and higher sound absorption with the same panel thickness.
Features and benefits:
- Fewer obstructions in the ceiling cavity, which facilitates installation, maintenance, disassembly and recycling easier.
- The sound absorption performance is increased compared to a standard panel without increasing the thickness.
- Available in 15 mm, 25 mm and 35 mm thicknesses and a variety of edge details of edge details.
General information
Color | Beige Black Blue Bronze Brown |
Finish | Wood grain |
Material | Wood wool Fleece |
Shape | Circle Crescent Diamond Elliptical Formless |
Length | 600 mm 1200 mm Bespoke |
Width | 600 mm |
Height | 15 mm 25 mm 35 mm |
Uniclass | |
CAWS | K13/170 Acoustic panel lining K13/170 Acoustic panel lining K40/265 Infill units K40/135 Board-suspended ceiling system K40/10 Unit/ modular suspended ceilings K40/270 Boards K40/115 Unit/ modular suspended ceiling system |
Specification data - Wood-wool boards
Classification data | |
Standard | To BS EN 13168. |
Reaction to fire classification | To EN 13501-1, Euroclass B-s1,d0. |
Thickness | 15 mm. |
Weight | 8.2 kg/m². |
Colour | White. Guidance for specification option: Similar to RAL 9010. Nature. Guidance for specification option: Similar to RAL 1015. Black. Guidance for specification option: Similar to RAL 9005. Granite. Steel. Green marble. Copper. Oak. Brass. Sandstone. Concrete. |
Form | Panel. |
Rigidity | Rigid. |
Sound absorption | To EN ISO 354, αw = 0.55–0.75. Guidance for specification option: Dependant on mounting height, consult manufacturers literature for more information. |
Size (length x width) | 600 x 600 mm. 625 x 625 mm. 1200 x 600 mm. 1250 x 625 mm. Other. |
Edges | VK-09. Guidance for specification option: Compatible with systems:
VK-10. Guidance for specification option: Compatible with systems:
VK-10/5. Guidance for specification option: Compatible with systems:
GK. Guidance for specification option: Compatible with systems:
AK-00. Guidance for specification option: Compatible with systems:
AK-01. Guidance for specification option: Compatible with systems:
AK-02/5. Guidance for specification option: Compatible with systems:
AK-02/10. Guidance for specification option: Compatible with systems:
AK-02/20. Guidance for specification option: Compatible with systems:
AK-03. Guidance for specification option: Compatible with systems:
SK-04. Guidance for specification option: Compatible with systems:
SK-05. Guidance for specification option: Compatible with systems:
SK-06. Guidance for specification option: Compatible with systems:
SY-02. Guidance for specification option: Compatible with systems:
|
Surface pattern | Fleece. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Austria |
Country of product manufacture | Austria |
Material | Wood wool Fleece |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidancePlease refer to manufacturers EPD |
Literature

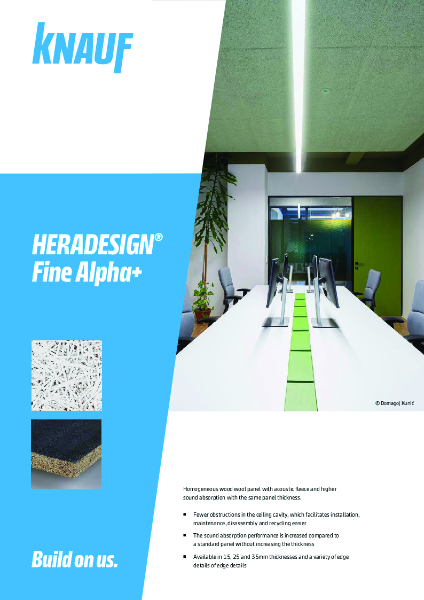

HERADESIGN® Fine Alpha + - Product Data Sheet
