HERADESIGN® Creative Line - Wood Wall Board

Verified by manufacturer 5 months ago

HERADESIGN® Fine

Knauf Ceiling Solutions Limited Variant:

HERADESIGN® Creative line is a single layer magnesite bonded wood wool acoustic ceiling and wall panel.

Jump to:
+44 (0)191 518 8600 Website

Application

A decorative and acoustically effective suspended ceiling and wall panel for use in interior spaces as well as roofed outdoor areas that are not directly exposed to environmental influences such as rain or pollutant


Suitable applications:

  • Education.
  • Retail.
  • Residential.
  • Health and leisure.
  • Hospitality.

Description

HERADESIGN® Creative line is a single layer magnesite bonded wood wool acoustic ceiling and wall panel.


Due to the natural main components of HERADESIGN® Creative acoustic tiles – wood, water and magnesite – the tiles are a natural product and therefore suitable for applications in interiors of all kinds.


Eco-friendly production: the material consists of 100% natural or renewable raw materials, which are completely utilized due to zero-waste production process. HERADESIGN® Creative acoustic tiles are environmentally friendly and completely recyclable.


Features and benefits:

  • Flexible and innovative design solution with up to twelve patterns to choose from.
  • Available in HERADESIGN® Fine and Superfine.
  • High sound absorption performance.
  • 100% recyclable.

General information

Color

Beige

White

Other

Guidance for specification option:

Available in a range of popular RAL and NCS colour systems.

Finish

Grooved

Material

Wood wool

Shape

Rectangle

Other

Length

1200 mm

Width

600 mm

Height

25 mm

Warranty description

-

Manufacturer guidance

Please refer to EPD (Environmental Product Declaration).

Uniclass

Pr_25_71_97_97 Wood-wool boardsPrimary
Pr_35_93_13_80 Sound attenuator infill units

CAWS

K40/105 Suspended ceiling system

K40/10 Unit/ modular suspended ceilings

K40/115 Unit/ modular suspended ceiling system

Specification data - Wood-wool boards

Third-party certification

Indoor Air Comfort Gold - certified, FSC certified, PEFC certified, Blue Angel certified, EDP certified, M1 classification.

Thermal conductivity (maximum)

To EN 1266, 0.09 W/mK.

Reaction to fire classification

To EN 13501-1, B-s1,d0 and A2-s1,d0.

Thickness

25 mm.

Recycled content

Guidance for specification option:

Please refer to EPD (Environmental Product Declaration).

Edge detail

AK-01.

Dimensions

1200 x 600 mm.

System

Screw-fix on wooden battens - system B2.1.

Screw-fix on CD channels - system B2.2.

Weight

12.6–19.0 kg/m².

Sound absorption

0.90 αw.

Noise reduction coefficient

0.90.

Constant humidity resistance

90%.

Guidance for specification option:

Suitable for rooms with a constant humidity of up to 90%. For applications where there is a constant relative air humidity in excess of 80%, expert advice for building physics is recommended.

Colour

White.

Guidance for specification option:

Similar to RAL 9010.

Beige.

Guidance for specification option:

Natural tone 13.

Pastel colours.

Guidance for specification option:

Consult manufacturer and insert requirements.

Solid colours.

Guidance for specification option:

Consult manufacturer and insert requirements.

Metallic colours.

Guidance for specification option:

Consult manufacturer and insert requirements.

Show more

Manufacturer guidance

  • Choose from a range of popular RAL and NCS colour systems.
  • Deviations in colour and visual appearance may occur due to the rough fibre and panel surface.

Design

Line DL 16.

Line DL 8.

Line DR 16.

Line DR 8.

Line DLR 16.

Show more

Manufacturer guidance

Consult manufacturer literature.

Sustainability data

Contains Red List materials

No

Country of material origin

Austria

Country of product manufacture

Austria

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-

Manufacturer guidance

Please refer to EPD (Environmental Product Declaration).

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Please refer to EPD (Environmental Product Declaration).

Literature

Knauf Ceiling Solutions Wood Wool

Knauf Ceiling Solutions Wood Wool

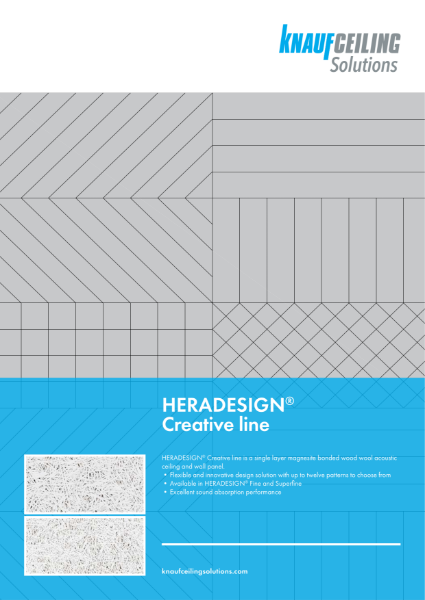

HERADESIGN® Creative Line

HERADESIGN® Creative Line

HERADESIGN® Creative Line Product Brochure

HERADESIGN® Creative Line Product Brochure
