Heaveguard

Name: Heaveguard
Brand: Cordek Ltd
SKU: d3EfTAyoe4qCsvtRjqRzDf

Verified by manufacturer 4 months ago

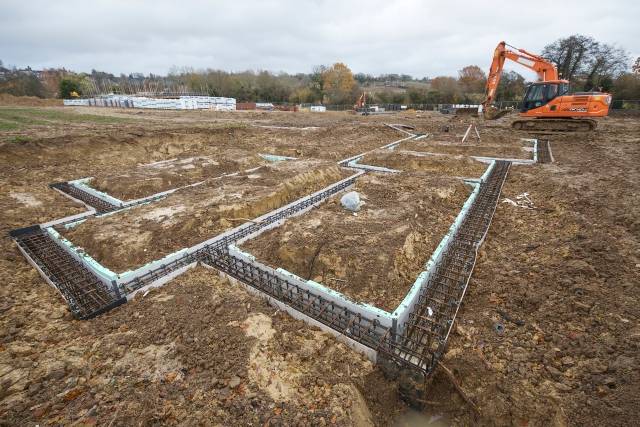

Compressible EPS board for vertical installation against the sides of ground beams and deep trench fill foundations. The product is available in a range of thicknesses.

Jump to:

BOS

+44 (0)1403 799600 Website

Application

Used to alleviate the lateral force of ground heave on foundations.

Description

It is a compressible expanded polystyrene (EPS), specifically manufactured within a critical density range.

Features and benefits:

Water resistant.
Suitable for projects where the foundations are below the water table.
Available in various thicknesses.
Reduces the lateral force transmitted to the structure, meets the NHBC’s Technical Standards, available as a pile collar to aid installation of Cordek’s Cellcore range.

General information

Color	Green
Material	Polystyrene Guidance for specification option: Low density expanded polystyrene (EPS).
Shape	Rectangle
Length	2400 mm
Height	50 mm 75 mm 100 mm 150 mm 200 mm 250 mm 300 mm Show more

Uniclass	Pr_25_71_29_62 Permanent insulation formwork (PIF)Primary
CAWS	E20/185 Compressible board substructure formwork E20/47 Compressible board substructure formwork

Specification data - Permanent insulation formwork (PIF)

Third party product certification	BBA Agrement certificate. Guidance for specification option: Certificate no. 17/5448.

Material:	Low density expanded polystyrene (EPS).
Designation fire retardant class	Euroclass F.
Thickness	50 mm. 75 mm. 100 mm. 150 mm. 200 mm. 250 mm. 300 mm. Show more
Colour	Green.
Dimensions	2400 x 1200 mm. Guidance for specification option: Bespoke options available on request.

Sustainability data

Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Polystyrene Guidance for specification option: Low density expanded polystyrene (EPS).
Recyclability	Guidance for specification option: Expanded Polystyrene can be recycled.
