Cellform HX
Verified by manufacturer 4 months ago

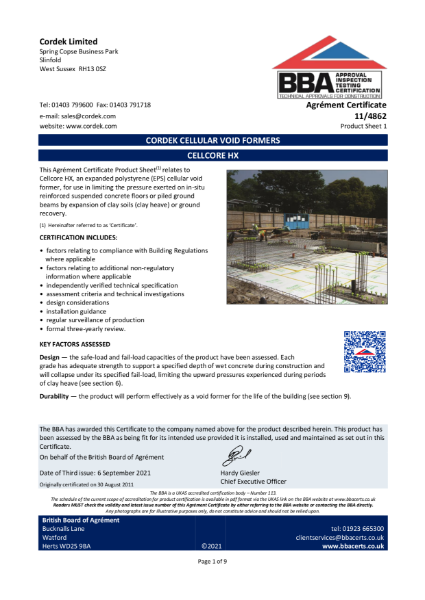

BBA Agrément Certificate
Certificate type

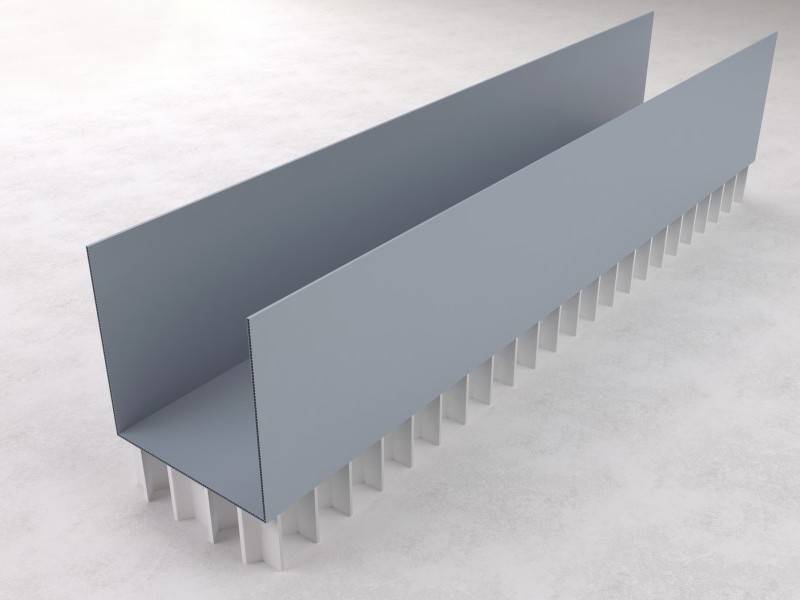

Collapsible void former with integral permanent formwork for use under reinforced concrete ground beams. The product has a number of variables including panel width, depth and loading characteristics.
Application

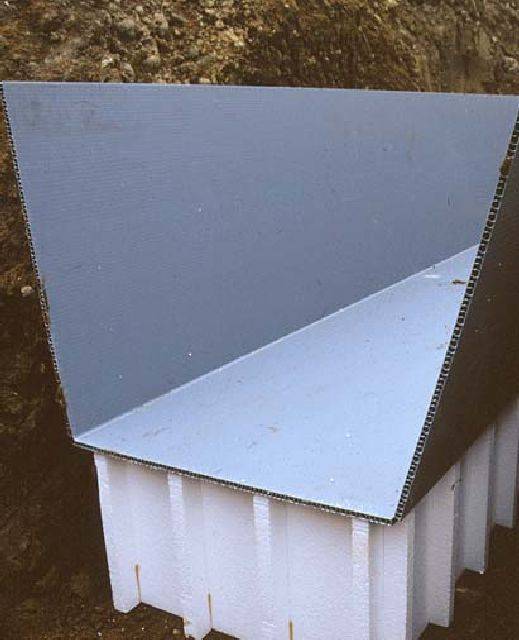

Designed for use beneath reinforced concrete ground beams to protect against the potential effects of ground heave.
Description
Comprising of a cellular construction of moulded expanded polystyrene combined with a robust polypropylene permanent formwork, which has been designed and tested to tight tolerances to achieve the specified performance characteristics. It is available in a variety of depths and grades to suit the most commonly encountered combinations of soil heave potential and concrete depths.
Features and benefits:
- Reduces the upward force transmitted to the structure.
- Wide range of depths and grades to suit most applications.
- Meets the NHBC Technical Standards.
- Consistent performance supported by extensive testing.
- Integral, permanent formwork to suit the depth / width of the ground beam.
- Manufactured to suit ground beam dimensions, range of accessories available.
General information
Color | White |
Material | Polystyrene Polypropylene |
Shape | Rectangle Guidance for specification option: Available in panels. |
Length | 2400 mm |
Width | Bespoke Manufacturer guidanceWidths and depths to suit specific beam sizes. |
Height | 85 mm 155 mm 220 mm |
Uniclass | |
CAWS | E20/190 Substructure formwork for ground beams and pile caps E20/47 Compressible board substructure formwork |
Specification data - Permanent insulation formwork (PIF)
Material standard | NHBC Technical Standards. |
Designation | |
Structure | Moulded EPS board with integral polypropylene formwork. |
Fire retardant class | E. |
Third party product certification | Agrément certificate. |
Wall width (overall) | Manufacturer guidanceInsert requirement, available 300–1200 mm in 25 mm increments. |
Execution | Installing permanent formwork |
Grade | Manufacturer guidanceDependent on the total load that will be exerted onto the panels. Consult manufacturer for information. |
Integral formwork | To suit required dimensions of the ground beam. |
Grade depth options | 9 / 13. Guidance for specification option: Safe load/ fail load (kN/m²), 300 mm maximum concrete depth. 13 / 18. Guidance for specification option: Safe load/ fail load (kN/m²), 460 mm maximum concrete depth. 18 / 24. Guidance for specification option: Safe load/ fail load (kN/m²), 660 mm maximum concrete depth. 24 / 32. Guidance for specification option: Safe load/ fail load (kN/m²), 900 mm maximum concrete depth. |
Thickness | 85 mm. 155 mm. 220 mm. |
Length | 2400 mm. Guidance for specification option: Widths and depths to suit specific beam sizes. |
Colour | White. |
Material: | Compressible EPS honeycomb with a heavy-duty polypropylene top. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Polystyrene Polypropylene |
Recyclability | Manufacturer guidanceBoth expanded polystyrene (EPS) and polypropylene can be recycled. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 5 |
 IFC | IFC2X3 | 2 |
Third party certifications
Literature

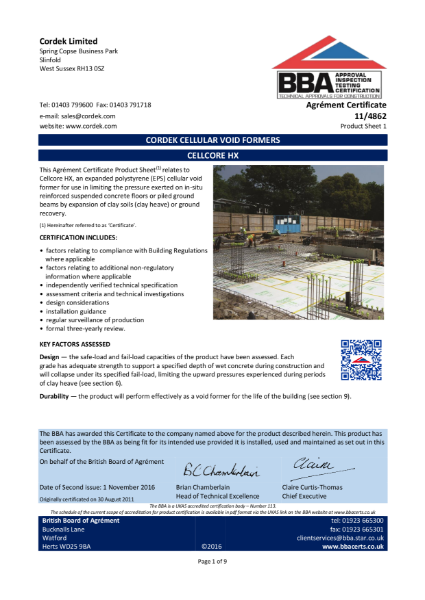

Cordek Cellcore HX BBA Certificate

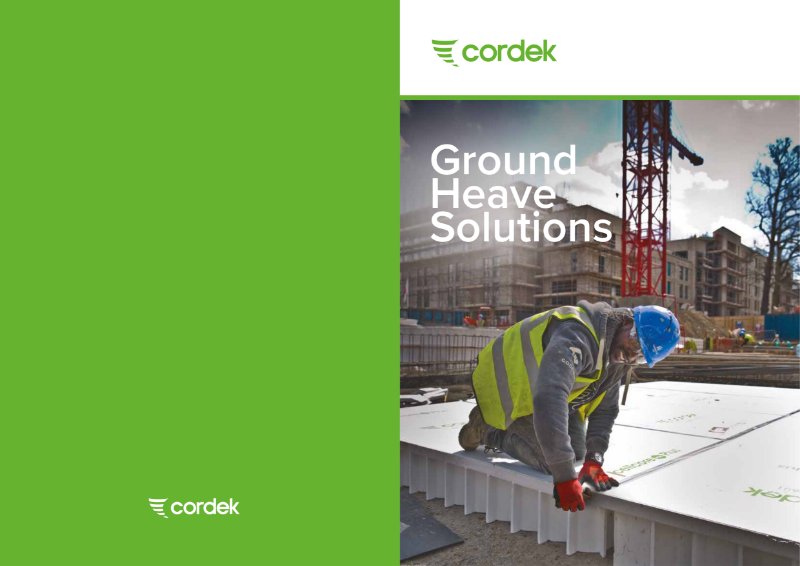

Cordek Ground Heave Solutions Brochure

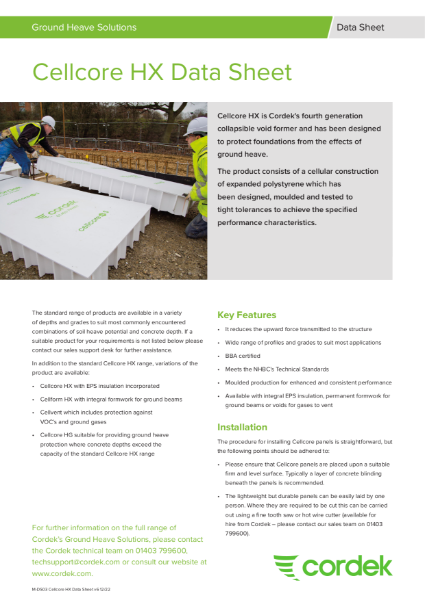

Cordek Cellcore HX Data Sheet
