Hardie® Architectural Panel Metallics Cladding 8 mm
Verified by manufacturer 2 months ago

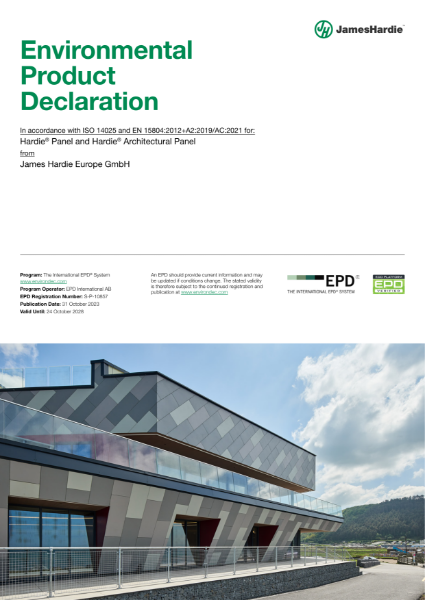

EPD
Certificate type

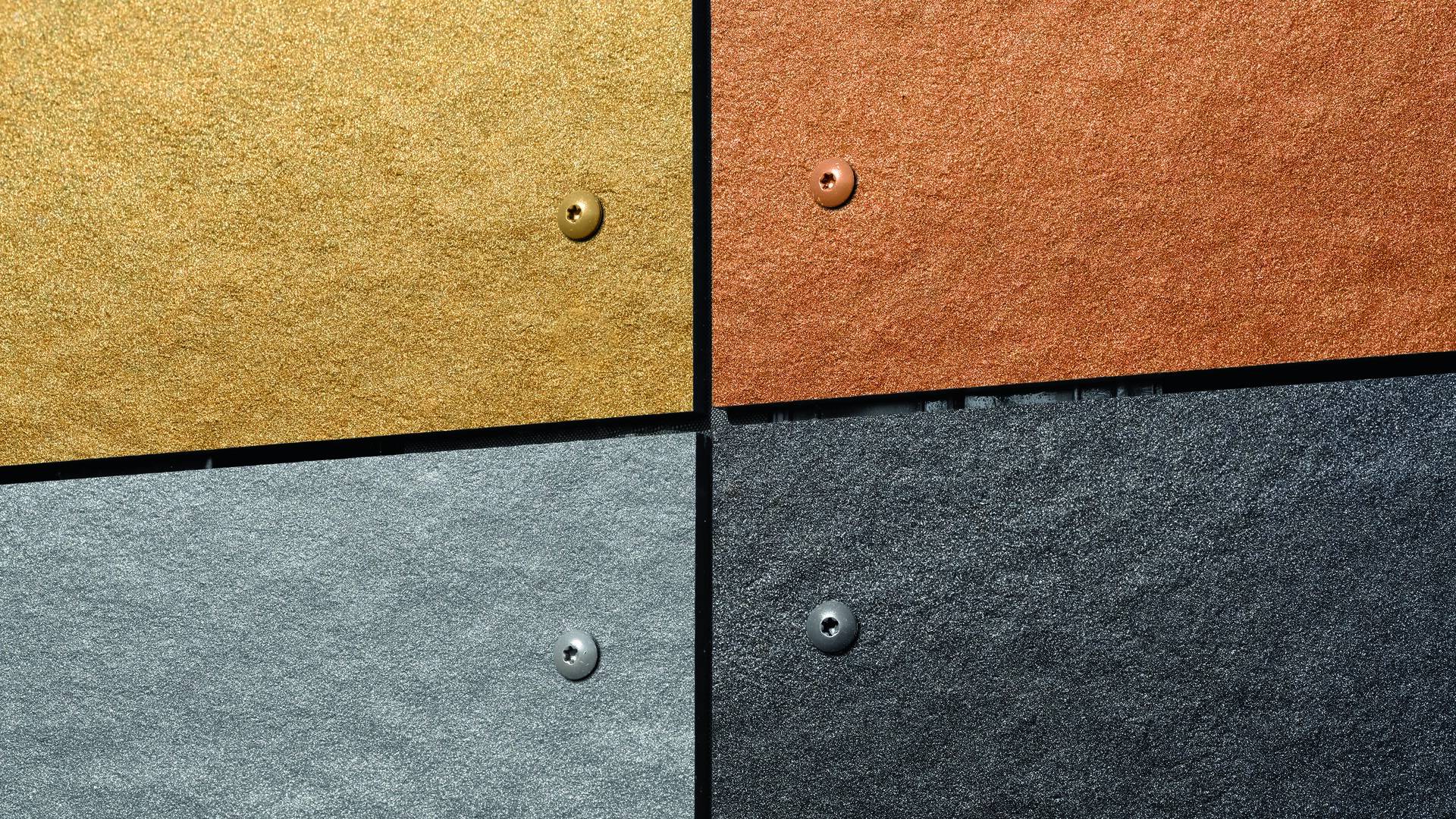

Hardie® Architectural Panel Metallics cladding is an 8 mm thick, large format sheet in six core colours.
Application
Purposely designed as an external cladding for residential and commercial buildings in both new build and renovation. Hardie® Architectural Panel Metallics cladding can be used in a ventilated construction fixed to timber frame, steel frame or masonry walls using corrosion resistant screws or rivets.
Hardie® Architectural Panel Metallics cladding can be installed horizontally and vertically, with or without insulation.
Description
Hardie® Architectural Panel Metallics cladding is a robust, heavy-duty fibre cement cladding product available in a smooth effect finish, providing diverse design options.

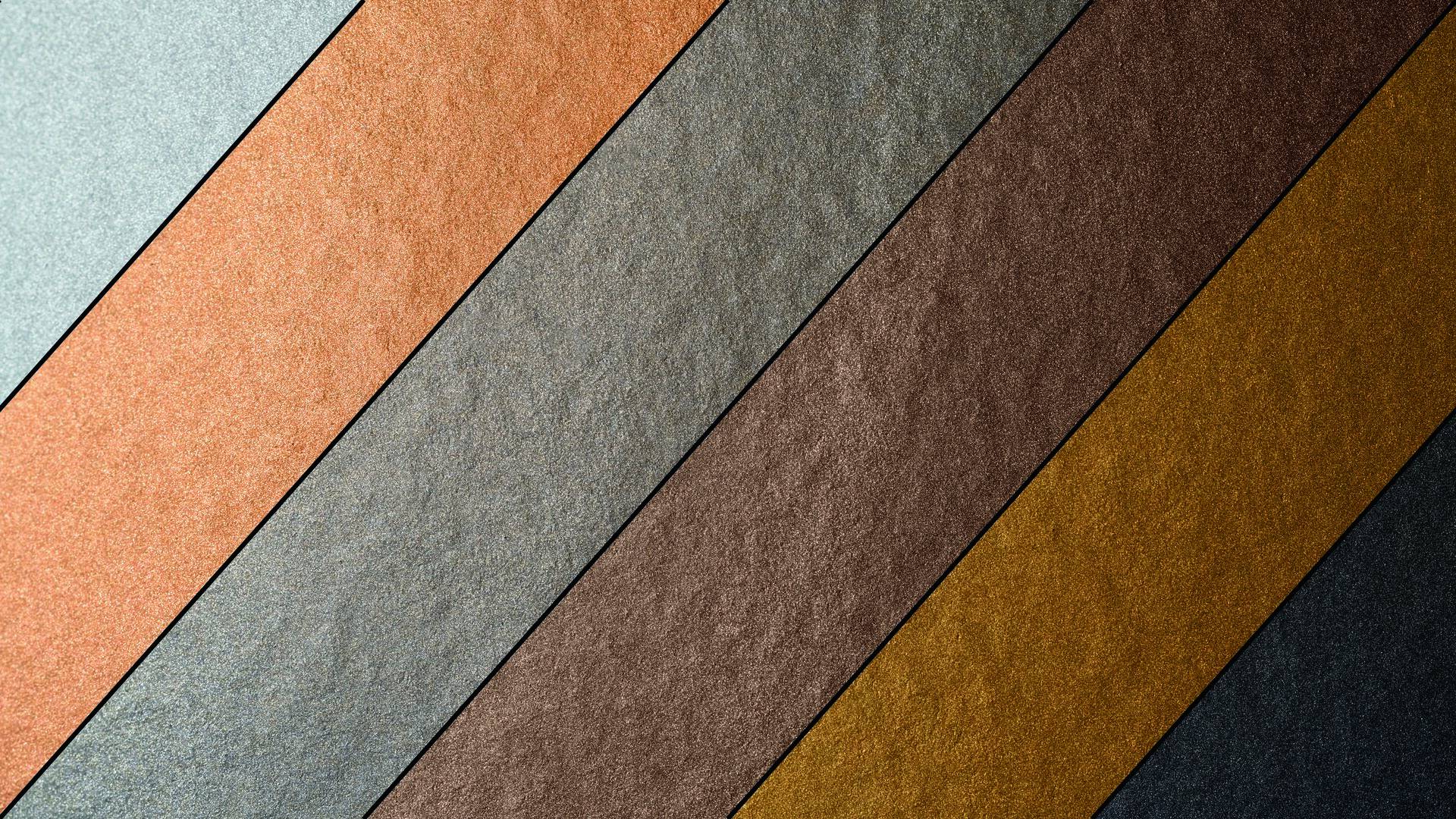

Hardie® Architectural Panel Metallics is available in six core colours. The 15 year warranty guarantees that all Hardie® Panel cladding installations will maintain their fresh appearance year after year.
Installation requires minimum pre-drilling and the panel sheets can be easily cut to size on site. Hardie® Architectural Panel Metallics offers a simple, durable and economical solution and is particularly suitable for large new or renovation projects.
Features and benefits:
- Cost effective, functional large sheet cladding offering great design flexibility.
- Fire resistant and non combustible A2-s1, d0 fire rated.
- Engineered for climate and offering year round install for ease.
- Low maintenance.
- Made to last.
- The best of both strength and usability.
- Superior dimensional stability.
- Linear strain of ≤0.05 mm/m (between 30–90% relative humidity).
Standards:
- Construction material class as per EN 13501-1: non-flammable A2-s1, d0.
- DIBt approval = abZ Z-31.4-193.
General information
Color | Gold Copper Bronze Silver |
Finish | Smooth |
Material | Cement Guidance for specification option: Portland cement, sand, cellulose fibres, water and selected additives. |
Shape | Rectangle |
Length | 3048 mm |
Width | 1220 mm |
Height | 8 mm |
Warranty description | 15 year Guidance for specification option: Covering paint and labour, protecting against peeling, cracking, and chipping. |
Uniclass | |
CAWS | H20/10 Sheet cladding H20/150 Sheet cladding (attached to metal support systems) H20/155 Sheet cladding (attached to timber battens) H30/120 Fibre cement H30/110 Fibre cement H92/120 Rainscreen cladding |
Specification data - Fibre-reinforced cement weatherboards
Standard | To BS EN 12467. |
Third-party certification | BBA certified 05/4248. |
Fire rating | To EN 13501-1, A2-s1, d0.Guidance for specification option: Non-combustible. |
Edges | Square. |
Finished size | 3048 x 1220 mm. |
Thickness | 8 mm. |
Surface texture | Natural fibre cement. |
Colour | Silver.Gold.Copper.Steel.Bronze.Gunmetal. |
Density | 1300 kg/m³. |
Panel weight | 11.2 kg/m². |
ThermalConductivity | 0.23 W/m⋅K. |
Thermal resistance | 0.035 m²K/W. |
Modulus of elasticity | 6200 N/mm². |
Flexural strength | To EN 12467, 15.5 MPa (perpendicular to fibre direction); 10.1 MPa (parallel to fibre direction). |
Accessories | Not required. Hardie™ Panel MetalTrim™. Guidance for specification option: Length: 3000 mm, for exterior corners. Available in all standard colours to match the Hardie® Panel range. Hardie™ Panel Rivet. Guidance for specification option: With stainless steel rivet mandrel for the installation of Hardie® Panel cladding to metal sub-frames. Hardie™ Panel Standing Seam Trim. Guidance for specification option: Length: 3000 mm, facade design option. Available in Anthracite Grey and Midnight Black. Other colours available on request. Hardie™ Panel Standing Seam End Trim. Guidance for specification option: Length: 3000 mm, facade design option. Available in Anthracite Grey and Midnight Black. Other colours available on request. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United States |
Country of product manufacture | United States |
Material | Cement Guidance for specification option: Portland cement, sand, cellulose fibres, water and selected additives. |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 5.32 kg CO₂ eq/m² |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Third party certifications
Third party certifications
Literature
Hardie® Panel Brochure
Hardie® Panel Installation Guide
