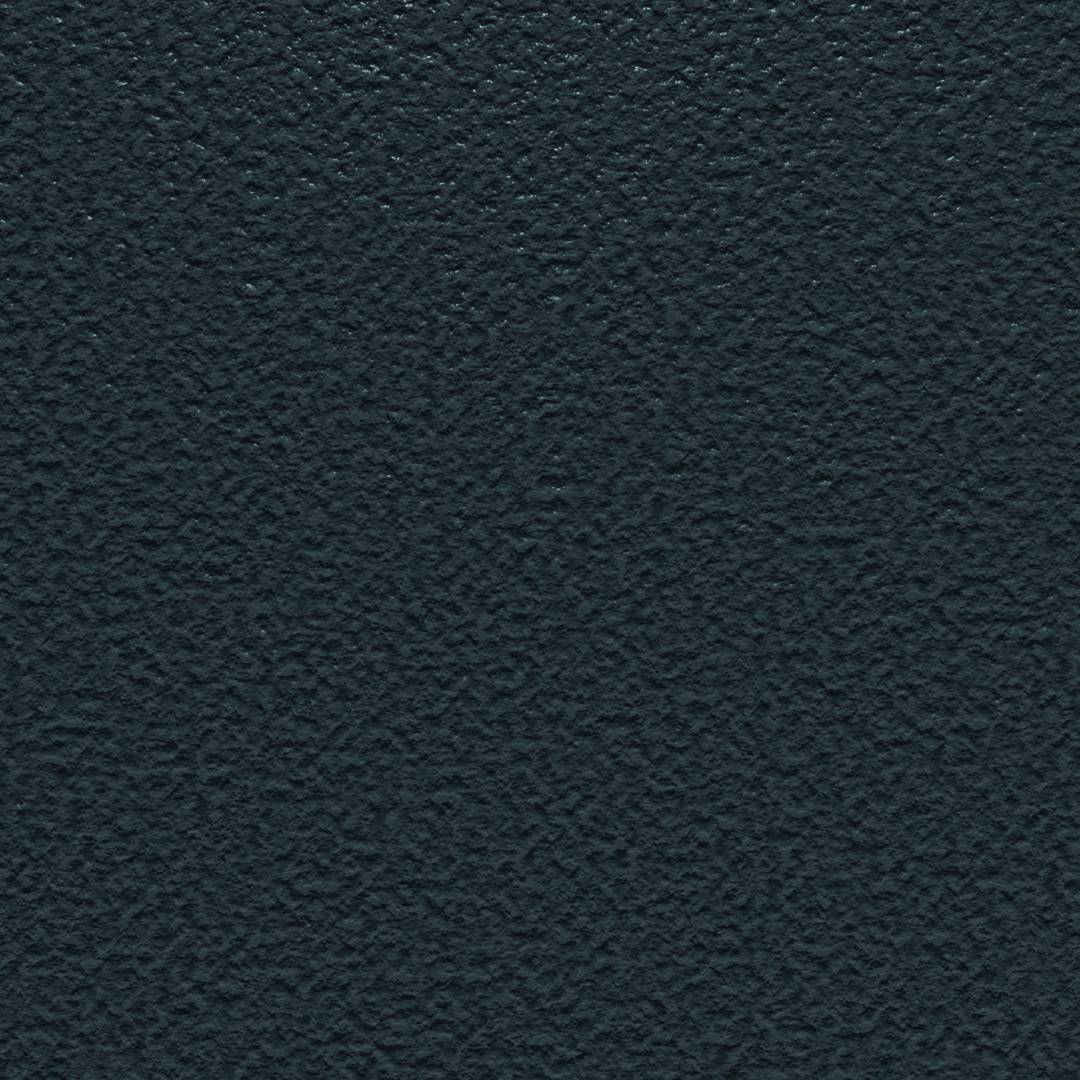

Hardie® Architectural Panel Cladding - Smooth Sand 8mm

Verified by manufacturer 6 months ago

James Hardie Building Products Ltd Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • EPD

    EPD

    Certificate type

Hardie® Architectural Panel cladding is an 8 mm thick, large format sheet available in six core colours.

Jump to:
+44(0)1213113480 Website

Application

Purposely designed as an external cladding for residential and commercial buildings in both new build and renovation. Hardie® Architectural Panel cladding can be used in a ventilated construction fixed to timber frame, steel frame or masonry walls using corrosion resistant screws or rivets.


Can be installed horizontally and vertically, with or without insulation.

Description

Hardie Architectural Panel cladding is a robust, heavy-duty fibre cement cladding product available in a smooth effect finish, providing diverse design options.


Available in six core colours, each offering advanced ColourPlus™ Technology for projects that call for specific colours. The 15 year limited warranty guarantees that all Hardie® Panel cladding installations will maintain their fresh appearance year after year.


Installation requires minimum pre-drilling and the panel sheets can be easily cut to size on site. Hardie® Architectural Panel offers a simple, durable and economical solution and is particularly suitable for large new or renovation projects.


Features and benefits:

  • Cost effective, functional large sheet cladding offering great design flexibility.
  • Fire resistant and non combustible A2-s1, d0 fire rated.
  • Engineered for climate and offering year round install for ease.
  • Low maintenance.
  • Made to last.
  • The best of both strength and usability.
  • Superior dimensional stability.


Standard or Brushed Concrete versions also available, both specified separately.


Standards:

  • Construction material class as per EN 13501-1: non-flammable A2-s1, d0.
  • BBA certified 05/4248.
  • DIBt approval = abZ Z-31.4-193.

General information

Color

White

Grey

Black

Other

Finish

Sandfaced

Material

Cement

Guidance for specification option:

Portland cement, sand, cellulose fibres, water and selected additives.

Shape

Rectangle

Length

3048 mm

Width

1220 mm

Height

8 mm

Warranty description

15 year

Guidance for specification option:

Covering paint and labour, protecting against peeling, cracking, and chipping.

Uniclass

Pr_25_71_11_31 Fibre-reinforced cement weatherboardsPrimary

CAWS

H20/10 Sheet cladding

H20/150 Sheet cladding (attached to metal support systems)

H20/155 Sheet cladding (attached to timber battens)

H30/120 Fibre cement

H30/110 Fibre cement

H92/120 Rainscreen cladding

Specification data - Fibre-reinforced cement weatherboards

Standard

To BS EN 12467.

Third-party certification

BBA certified 05/4248.

Fire rating

To EN 13501-1, A2-s1, d0.

Guidance for specification option:

Non-combustible.

Edges

Square.

Finished size

3048 x 1220 mm.

Thickness

8 mm.

Surface texture

Smooth Sand.

Colour

Arctic White.

Light Mist.

Cobblestone.

Grey Slate.

Anthracite Grey.

Midnight Black.

Custom colour.

Guidance for specification option:

Consult manufacturer and insert requirements.

Density

1300 kg/m³.

Panel weight

11.2 kg/m².

ThermalConductivity

0.23 W/m⋅K.

Thermal resistance

0.024 m²K/W.

Sustainability data

Contains Red List materials

No

Country of material origin

United States

Country of product manufacture

United States

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

5.32 kg CO₂ eq/m²

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

EPD

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

BBA 05/4248

EPD

EPD

Hardie® Panel and Hardie® Architectural Panel 8mm Environmental Product Declaration
