Application

Suitable for all roof pitches.


Description

A rigid preformed profile support positioned at eaves level to prevent underlay sagging between rafters/ tilting fillets. Suitable for use on roof pitches from 15 to 45°.


Features and benefits:

  • Provides consistent felt support.
  • Prevents water pooling.
  • Promotes correct discharge into gutter.

General information

Color

Black

Grey

Material

PVC-U

Guidance for specification option:

Un-plasticized polyvinyl chloride.

Polypropylene

Shape

Rectangle

Length

1500 mm

Width

240 mm

Height

2 mm

Uniclass

Pr_30_59_29_64 Plastics rafter ventilator traysPrimary

CAWS

H60/355 Ventilated eaves with separated grilles/ trays

H60/47 Detailing at eaves

H61/355 Ventilated eaves with separated grilles/ rays

H61/47 Eaves

H62/355 Ventilated eaves with separated grilles/ trays

H62/47 Eaves

H65/355 Ventilated eaves – separated grilles/ trays

H65/47 Eaves

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Literature

Ventilation Product Guide

Ventilation Product Guide

Protecting the Building Envelope Volume 28 (cavity tray, damp proofing, ventilation and cavity closers)

Protecting the Building Envelope Volume 28 (cavity tray, damp proofing, ventilation and cavity closers)

Similar products from Cavity Trays Ltd

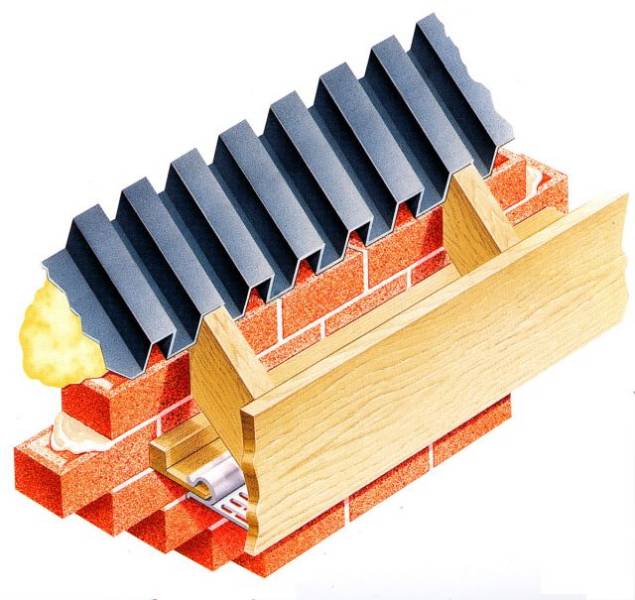

Type EROV Roll Panel Ventilator

Type EROV Roll Panel Ventilator

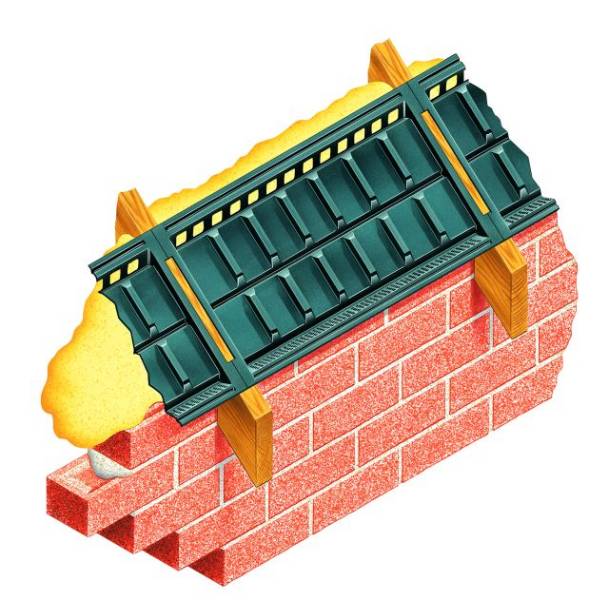

Type OEVWF

Type OEVWF

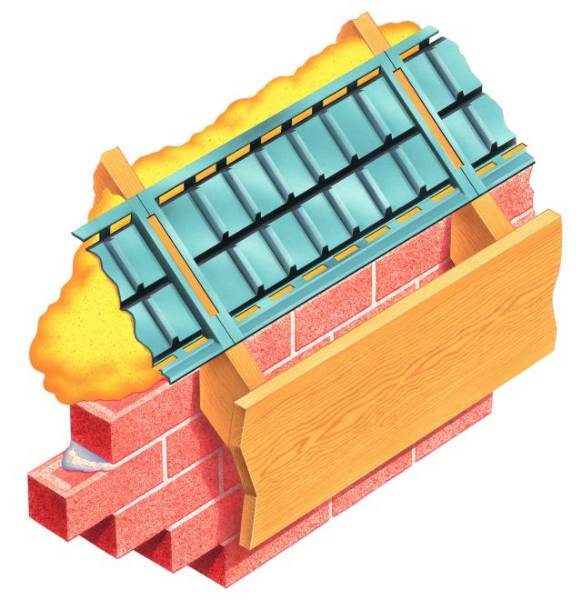

Type PV - Panel Ventilator

Type PV - Panel Ventilator

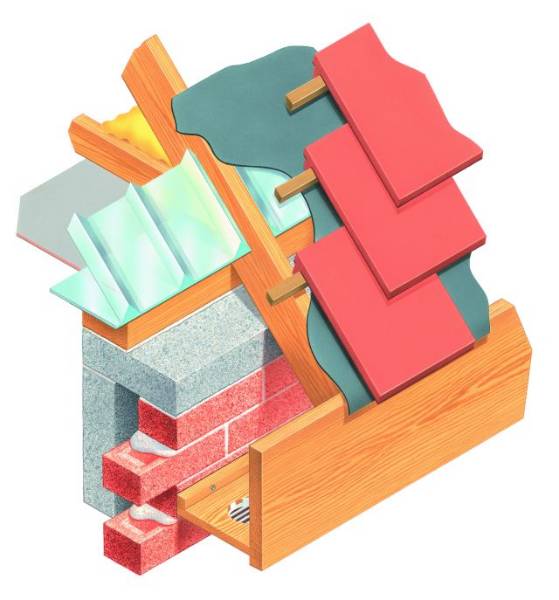

Type REV - Refurbishment Eaves Ventilator
