Gustafs Linear Rib Ceilings

Name: Gustafs Linear Rib Ceilings
Brand: LSA Projects Ltd
SKU: o8UgaJHtvArckFmq1ALeJ7

Verified by manufacturer 3 months ago

GLR-R Round Corners

LSA Projects Ltd

Product certifications:

EPD
Certificate type

A veneered gypsum product for ceilings.

Jump to:

+44 (0)1376 501199 Website

Application

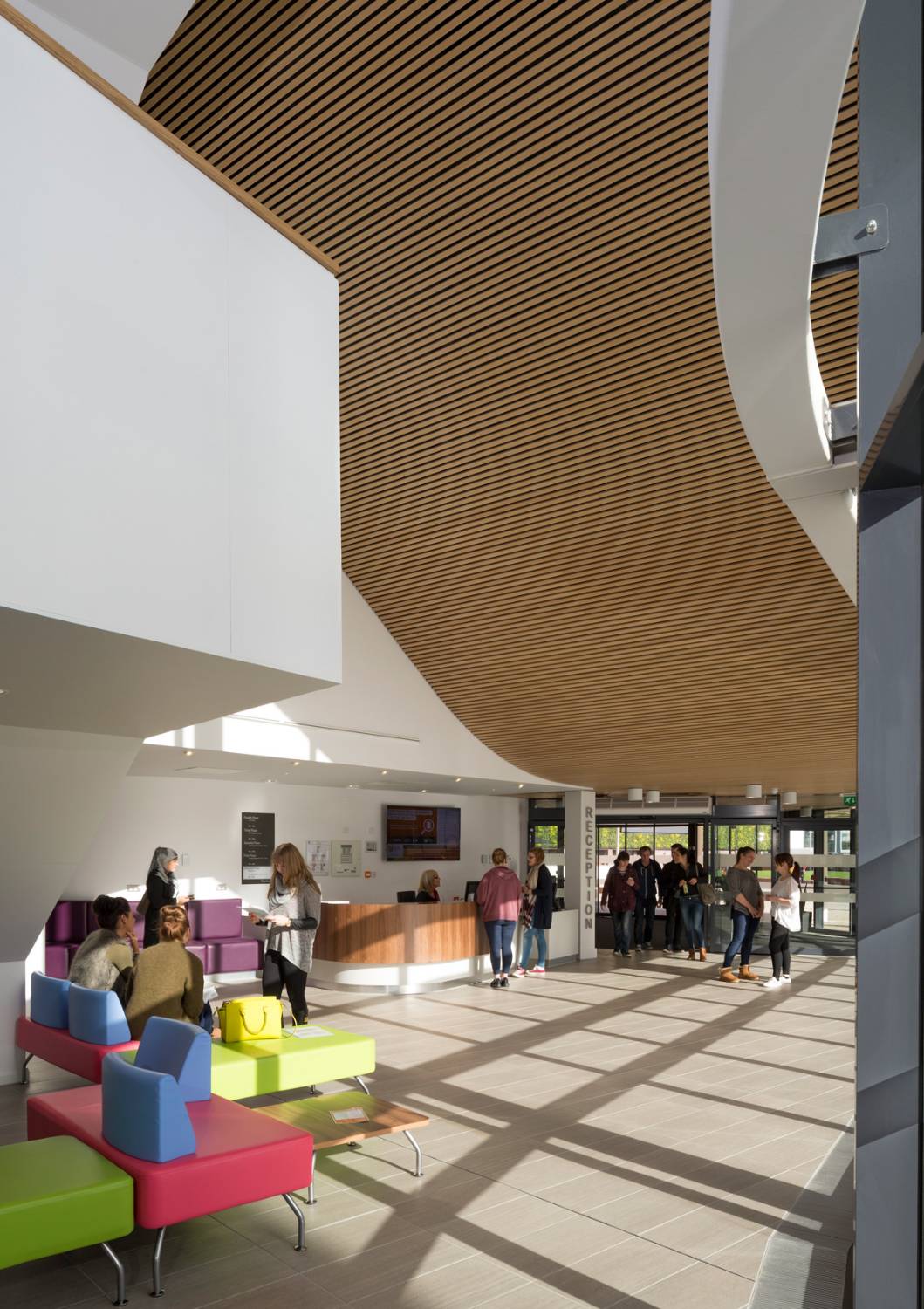

Suitable for commercial, education and public buildings.

Description

Gustafs Linear Rib is a natural veneer-wrapped rib product which is available in a range of widths and depths. The product can be installed to walls and ceilings with their standardised Easy-Up Base Capax profiles or customised to your specifications.

General information

Color	Brown Beige Black Blue Bronze Copper Gold Cream Green Grey Ivory Orange Pink Red Silver Turquoise Purple White Other Yellow Show more
Finish	Veneered Foil Painted Lacquered Gloss Stained Show more
Material	Gypsum Wood
Shape	Rectangle Other
Length	2400 mm 2550 mm 2970 mm
Width	22 mm 38 mm 88 mm Bespoke
Height	13 mm 22 mm 28 mm 34 mm 40 mm 44 mm 54 mm Bespoke Show more
Warranty description	Two year

Uniclass	Ss_30_25_22_47 Linear ceiling lining systemsPrimary Ss_25_25_75_95 Wood veneered panel lining systems Ss_25_25_75_05 Acoustic panel lining systems
CAWS	K13/120 Wood-veneered panel lining K13/120 Wood-veneered panel lining K13/170 Acoustic panel lining K13/170 Acoustic panel lining K40/115 Unit/ modular suspended ceiling system K40/10 Unit/ modular suspended ceilings

Specification data - Linear ceiling lining systems

Classification data
System performance	- Manufacturer guidance Insert requirements or omit. Acoustic performance: Class B for 12 mm Gaps, Class A for 22 mm. Contact LSA for full acoustic report.
Ceiling support	CAPAX BASE-C, 3262, U-FIX 50 clips and screws, U-FIX 200 clips at rib joints, and ceiling hanger angles (by others). Guidance for specification option: CAPAX BASE-C: Maximum 600 mm centres - perpendicular. 3262: Maximum 1200 mm centres - parallel. U-FIX 50 clips and screws: Maximum 600 mm centres along rib. Secure hangers directly to BASE-C profile at maximum 400 mm centres.
Support fasteners	- Manufacturer guidance Insert requirement to suit substrate.
Linear strip	Veneered gypsum particleboard ribs.
Barriers in ceiling void	-
Fire barriers	- Manufacturer guidance Insert requirements or omit.
Acoustic barriers	- Manufacturer guidance Insert requirements or omit.
Plenum barriers	- Manufacturer guidance Insert requirements or omit.
Samples required	- Manufacturer guidance Insert requirements or omit.
System accessories	- Manufacturer guidance Consult manufacturer and insert requirements or omit.
Reaction to fire	To EN 13501-1, Euroclass B-s1, d0.
Design	GLR-R round corners.
Pitch	Base-C for Fixed Ribs at 50 mm centres. Base-CD for Demountable Ribs at 50 mm centres. Base-CD for Demountable Ribs at 60 mm centres. Manufacturer guidance Rib pitch.
Facing	Nature veneer - Oak. Nature veneer - Birch. Nature veneer - Rotary cut Birch. Nature veneer - Maple. Nature veneer - Ash. Nature veneer - Beech. Nature veneer - Pear. Nature veneer - Mahogany. Nature veneer - Oregon Pine. Nature veneer - Elm. Nature veneer - Cherry. Nature veneer - Teak. Nature veneer - Walnut. Nature veneer - Oak. Nature veneer - Birch. Nature veneer - Rotary cut Birch. Nature veneer - Maple. Nature veneer - Ash. Nature veneer - Beech. Nature veneer - Pear. Nature veneer - Mahogany. Nature veneer - Oregon Pine. Nature veneer - Elm. Nature veneer - Cherry. Nature veneer - Teak. Nature veneer - Walnut. Foil. Guidance for specification option: It is also possible to wrap the ribs with coloured foil. Contact LSA Projects for more information regarding coloured ribs.
Acoustic insulation	Not required. 17 mm mineral wool, density 147 kg/m³. Guidance for specification option: Available from LSA on request. Manufacturer guidance Please consult LSA for arrangement details.
Dimensions	22 x 22 x 2400 mm. 22 x 28 x 2400 mm. 22 x 34 x 2400 mm. 22 x 44 x 2400 mm. 22 x 54 x 2400 mm. 22 x 22 x 2970 mm. 22 x 28 x 2970 mm. 22 x 34 x 2970 mm. 22 x 44 x 2970 mm. 22 x 54 x 2970 mm. 38 x 22 x 2400 mm. 38 x 28 x 2400 mm. 38 x 34 x 2400 mm. 38 x 40 x 2400 mm. 38 x 34 x 2550 mm. 38 x 40 x 2550 mm. 38 x 13 x 2970 mm. 38 x 22 x 2970 mm. 38 x 28 x 2970 mm. 88 x 22 x 2400 mm. 88 x 28 x 2400 mm. 88 x 22 x 2970 mm. 88 x 28 x 2970 mm. Custom. Guidance for specification option: Insert requirements. NB: The 2970 mm length is available for custom sized ribs as long as one dimension (width or depth) is 28 mm or less. If both dimensions are larger than 28 mm, the longest length that can be manufactured is 2550 mm. Consult manufacturer for details. Manufacturer guidance W x D x L
Weight	22–41 kg/m². Guidance for specification option: Depending on thickness and spacing of ribs.

Sustainability data

Contains Red List materials	No
Country of material origin	Sweden
Country of product manufacture	Sweden
Material	Gypsum Wood
Recyclability	Product is demountable and reusable within expected lifespan.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	94 % Manufacturer guidance All products based on fibre gypsum boards have a recycled content of at least 94%. 17% of the final panel is post consumer recycled.
