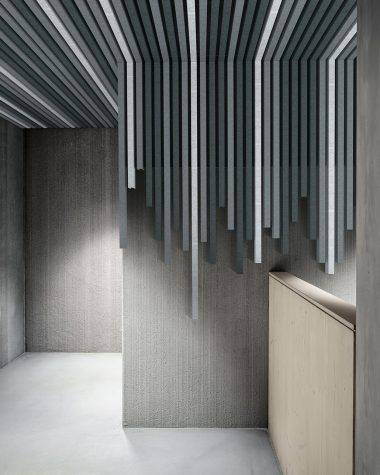

Gustafs Feltfon Ceilings - Acoustic Linear System
Verified by manufacturer 1 month ago
BS EN 13501-1
Certificate type
Linear sound absorption system for ceiling applications.
Application
Suitable for commercial ceiling applications with high throughput of people such as in schools and other public spaces.
Description
Gustafs Feltfon Linear is a customisable linear felt solution which gives a soft, warmth to walls, while providing effective sound attenuation.
Features and benefits:
- Elegant and practical acoustic felt solution.
- Provides effective sound dampening with an acoustic class of ‘A’.
- Appearance is akin to wool, it has a strong textural appeal and represents a further exploration of material innovation.
- Manufactured from recycled PET bottles and can be recycled multiple times.
- Available in three shades of grey, the lightest wool grey, a medium grey called dark grey, and the darkest shade, anthracite.
- Available in a wide range of standard dimensions.
- Installation with the Capax installation system which is fully demountable.
- Produced with 100% fossil free energy.
- Fire rating of class B-s1,d0.
General information
Color | Grey Beige Cream Brown Green |
Finish | Textured |
Material | Felt Polyester fibre (PET) Aluminium |
Shape | Rectangle Circle Crescent Elliptical Formless |
Length | Bespoke |
Width | 40 mm 71 mm 102 mm Bespoke |
Height | Bespoke |
Warranty description | Two year |
Uniclass | |
CAWS | K40/10 Unit/ modular suspended ceilings K40/115 Unit/ modular suspended ceiling system K13/170 Acoustic panel lining K13/170 Acoustic panel lining |
Specification data - Linear ceiling lining systems

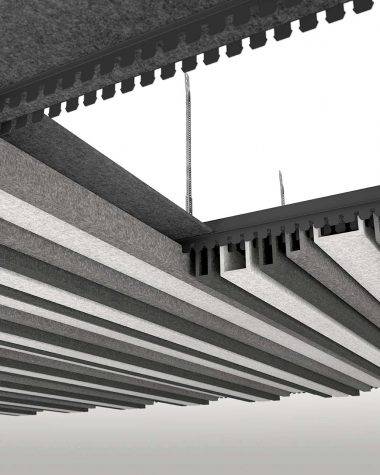

Ceiling support | 3262 Capax Suspended Ceiling Support System, black.3262 Capax Suspended Ceiling Support System, aluminium. |
Support fasteners | Nonius locking pin. |
Linear strip | Linear Feltfon ribs. |
Barriers in ceiling void | |
Acoustic barriers | Gustafs Acoustex sheets to infill inside of and between Capax 3262 profiles for additional acoustic performance. 9 mm in standard Feltfon colour range. |
System accessories | Not required.LED lighting.Wooden infill strips.Guidance for specification option: Insert requirement:
|
Insulation | Gustafs Acoustex, 9 mm thick in standard Feltfon colour range. |
Reaction to fire | To EN 13501-1, Euroclass B-s1,d0. |
Design | Linear rectangular design. Linear layers design. Guidance for specification option: Layered acoustic art combining straight and curved lines in overlapping designs. Linear vector design. Guidance for specification option: A choice between straight or curved lines, allowing cross-over rib designs. |
Spacing | Guidance for specification option: Consult manufacturer and insert requirements. Manufacturer guidanceRib spacing. |
Acoustic performance | Acoustic absorption coefficients up to Class A. Guidance for specification option: Consult manufacturer for details. |
Colour | Anthracite. Dark Grey. Wool Grey. Sand. Wet Sand. Manufacturer guidanceFeltfon rib colour. |
Length | 2400 mm. 3000 mm. Manufacturer guidanceRib length. |
Width | 40 mm. 71 mm. 102 mm. Bespoke. Guidance for specification option:
Manufacturer guidanceRib width. |
Depth | 40 mm. 60 mm. 80 mm. 100 mm. 120 mm. Manufacturer guidanceRib depth. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Sweden |
Country of product manufacture | Sweden |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 60 % Manufacturer guidance
|
Third party certifications
BS EN 13501-1
Feltfon Fire Test Report
Literature
Gustafs Linear Feltfon Walls
Gustafs Product Sheet Feltfon 3D
Gustafs Product Sheet Feltfon Linears
Gustafs Product Sheet Feltfon Vectors
Case studies
Feltfon Linear Sound Absorption System
