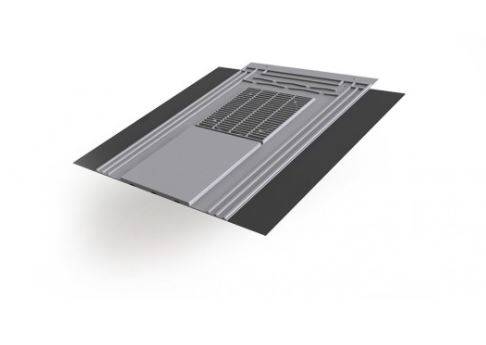

Glidevale Protect GV11 Slate Ventilator - Slate Vent

Name: Glidevale Protect GV11 Slate Ventilator - Slate Vent
Brand: BPD Building Product Design Ltd
SKU: mzLGPMPbXLytpxzKbTkh1F

Verified by manufacturer 5 months ago

BPD Building Product Design Ltd

In-line® GV11 Universal Soaker Slate Ventilator with a 10 000 mm² ventilation area.

Jump to:

+44 (0)161 905 5700 Website

Application

Suitable for use:

With natural and man-made double lap slates.
At low level or high level where the roof construction does not allow for eaves or ridge ventilation.
Where complex wall or fire break walls obstruct air flow in the roof space.
In complex roof shapes where effective cross ventilation is not possible.
As a terminal for soil vent pipes or mechanical extract terminals with separately supplied accessories.

Description

Glidevale Protect GV11 In-Line Slate Vent is a universal tile ventilator and terminal solution which matches with all natural and man-made double lap slates of all sizes. It can be used for all roof space ventilation requirements and can also be adapted into an SVP and mechanical extraction terminal by means of a pipe adaptor and flexible pipe.

Features and benefits:

Unobtrusive profile makes it virtually unseen from the ground.
Concealed baffles catch any wind driven rain or snow that might penetrate the grille and return it via positive drainage channels to the roof slope.
Easily installed in the normal slating process.
Superior wind uplift resistance on interlocking designs
Easily converted for use as SVP or mechanical extraction.
Easily installed wherever required as part of the normal tile/slating process.
Excellent ‘free draining’ design ensures no ponding of water in the vent.
Integral 4 mm insect screen ensures no unwanted visitors.
Designed and developed under BS EN ISO 9001.

General information

Color	Grey Black Red Brown Blue
Finish	Smooth Manufacturer guidance Multi-coat water based environmentally friendly UV-resistant coating.
Material	Polypropylene Acrylonitrile butadiene styrene (ABS)
Shape	Rectangle
Width	290 mm
Height	425 mm

Uniclass	Pr_30_59_29_73 Roof slope ventilator tilesPrimary
CAWS	H67/70 Roof ventilator tiles H65/840 Ventilator tiles H65/86 Ventilator tiles H60/86 Ventilator tiles H60/840 Ventilator tiles

Specification data - Roof slope ventilator tiles

Purpose	Roof ventilator; extract terminal.
Ventilation opening	10 000 mm²/m.
Colour	Blue-black. Guidance for specification option: Blue / black.
Accessories	SUA Soil Universal Pipe Adapter. Flexi Pipe.

Roof pitch	20°. Guidance for specification option: Minimum.
AirFlowRate	Guidance for specification option: 54 m³/hr: Airflow resistance when used as SVP/extract terminal at 10 Pa (15 L/s). 108 m³/hr: Airflow resistance when used as SVP/extract terminal at 42 Pa (30 L/s). 216 m³/hr: Airflow resistance when used as SVP/extract terminal at 162 Pa (60 L/s).
