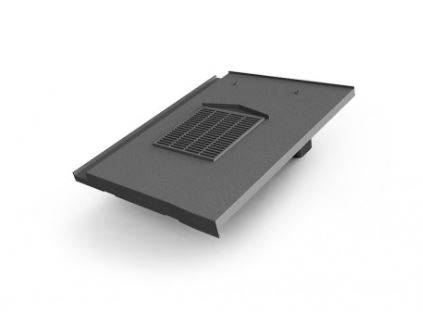

Glidevale Protect Universal In-line® Flat Interlocking Tile Ventilator - Roof Tile Vent

Verified by manufacturer 2 months ago

BPD Building Product Design Ltd

Universal In-line® Flat Interlocking Tile Ventilator with a 10 000 mm² ventilation area.

Jump to:
+44 (0)161 905 5700 Website

Application

Suitable for use:

  • With Condron Concrete Slate Tile, Lagan Flat, Marley Modern, Marley Duo Modern, Northstone Donard or Penrose, Quinn Western Slate, Redland Mini Stonewold, Redland Mockbond Mini Stonewold, Russell Grampian, Russell Highland, Sandtoft Calderdale, Sandtoft Dual Calderdale
  • At low level or high level where the roof construction does not allow for eaves or ridge ventilation.
  • Where complex wall or fire break walls obstruct air flow in the roof space.
  • In complex roof shapes where effective cross ventilation is not possible.
  • As a terminal for soil vent pipes.

Description

Glidevale Universal In-Line Flat Interlocking Tile Vent is a universal tile ventilator and terminal solution which matches with various interlocking tile profiles. It can be used for all roof space ventilation requirements and can also be adapted into an SVP and mechanical extraction terminal by means of a pipe adaptor and flexible pipe.


Features and benefits:

  • Unobtrusive profile makes it virtually unseen from the ground.
  • Concealed baffles catch any wind driven rain or snow that might penetrate the grille and return it via positive drainage channels to the roof slope.
  • Easily installed in the normal tiling process.
  • Superior wind uplift resistance.
  • Easily converted for use as SVP or mechanical extraction.
  • Manufactured with a high quality, long lasting surface treatment.
  • Excellent ‘free draining’ design ensures no ponding of water in the vent
  • Integral 4 mm insect screen ensures no unwanted visitors.
  • Designed and developed under BS EN ISO 9001.

General information

Color

Red

Guidance for specification option:

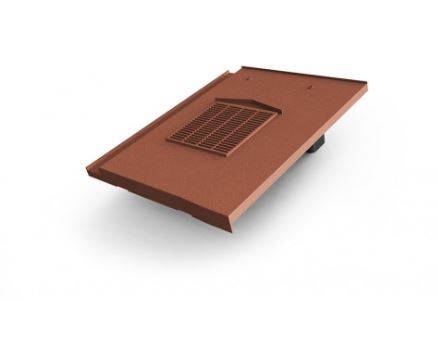

Standard, terracotta or red streak.

Brown

Grey

Black

Guidance for specification option:

Blue-black.

Finish

Sanded

Manufacturer guidance

All exposed surfaces are coated with a silica sand entrained in a multi-coat water based environmentally friendly uv-resistant coating.

Material

Acrylonitrile butadiene styrene (ABS)

Polypropylene

Shape

Rectangle

Width

330 mm

Height

420 mm

Material

Acrylonitrile butadiene styrene (ABS)

Polypropylene

Uniclass

Pr_30_59_29_73 Roof slope ventilator tilesPrimary

CAWS

H67/70 Roof ventilator tiles

H65/86 Ventilator tiles

H60/86 Ventilator tiles

H65/840 Ventilator tiles

H60/840 Ventilator tiles

Specification data - Roof slope ventilator tiles

Purpose

Roof void ventilator and extract terminal.

Ventilation opening

10 000 mm²/m.

Colour

Red.

Brown.

Grey.

Terracotta.

Red streak.

Blue-black.

Black.

Accessories

SUA Soil Universal Pipe Adapter.

Flexi Pipe.

Roof pitch

22.5°.

Guidance for specification option:

Minimum

AirFlowRate

54 m³/hr (10 Pa), 108 m³/hr (42 Pa), 216 m³/hr (162 Pa).

Guidance for specification option:

  • 54 m³/hr: Airflow resistance when used as SVP/ extract terminal at 10 Pa (15 l/s).
  • 108 m³/hr: Airflow resistance when used as SVP/ extract terminal at 42 Pa (30 l/s).
  • 216 m³/hr: Airflow resistance when used as SVP/ extract terminal at 162 Pa (60 l/s).

Sustainability data

Country of product manufacture

United Kingdom

Material

Acrylonitrile butadiene styrene (ABS)

Polypropylene

BIM objects

Platform Compatible Version
Revit
-

1

Literature

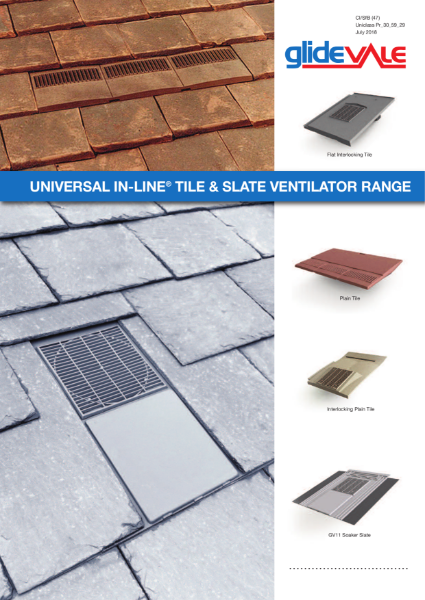

Glidevale Protect Universal In-line® Slate and Tile Ventilators

Glidevale Protect Universal In-line® Slate and Tile Ventilators

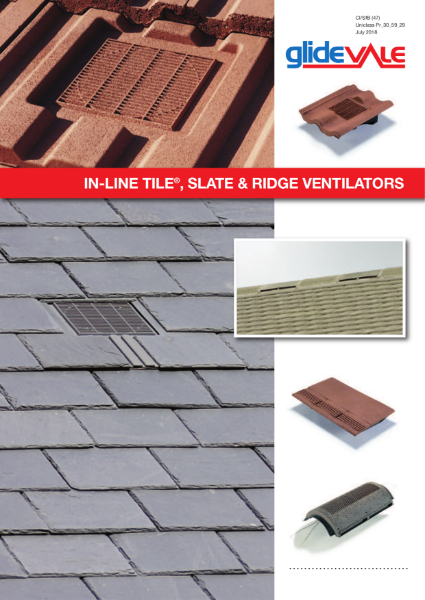

Glidevale Protect In-Line® Tile, Slate & Ridge Ventilators

Glidevale Protect In-Line® Tile, Slate & Ridge Ventilators

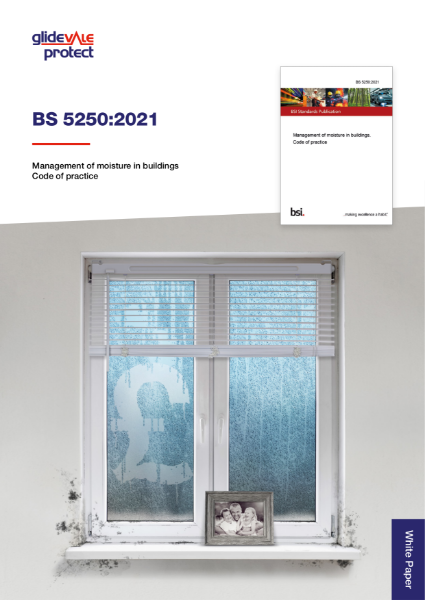

BS 5250:2021 Management of moisture in buildings
