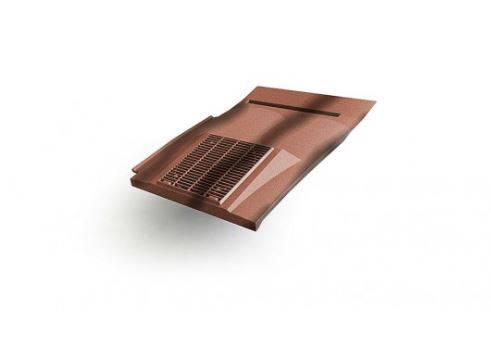

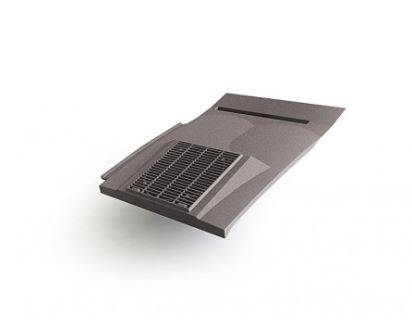

Glidevale Protect Universal In-line® Interlocking Plain Tile Ventilator - Roof Tile Vent

Name: Glidevale Protect Universal In-line® Interlocking Plain Tile Ventilator - Roof Tile Vent
Brand: BPD Building Product Design Ltd
SKU: nBxpEDAKdcq6DrHGENgk65

Verified by manufacturer 5 months ago

BPD Building Product Design Ltd

Universal In-line® Interlocking plain tile ventilator with a 10 000 mm² ventilation area.

Jump to:

+44 (0)161 905 5700 Website

Application

Suitable for use:

With Marley Ashmore, Redland Duo or Forticrete Gemini Roof tiles.
At low level or high level where the roof construction does not allow for eaves or ridge ventilation.
Where complex wall or fire break walls obstruct air flow in the roof space.
In complex roof shapes where effective cross ventilation is not possible.
As a terminal for soil vent pipes.

Description

Glidevale Protect Universal In-line® Interlocking Plain Tile Vent is a universal tile ventilator and terminal solution which matches with interlocking plain tiles

Features and benefits:

Unobtrusive profile makes it virtually unseen from the ground.
Designed to stop, catch and direct away any wind driven rain/ snow.
Easily installed in the normal tiling process.
Excellent wind uplift resistance.
Easily converted for use as SVP or mechanical extraction.
Manufactured with a high quality, long lasting surface treatment.
Integral 4 mm insect screen ensures no unwanted visitors.
Designed and developed under BS EN ISO 9001.

General information

Color	Red Guidance for specification option: Standard, terracotta or red streak. Brown Grey Black
Finish	Sanded Guidance for specification option: All exposed surfaces are coated with a silica sand entrained in a multi-coat water based environmentally friendly uv-resistant coating.
Material	Acrylonitrile butadiene styrene (ABS) Polypropylene
Shape	Rectangle
Width	332 mm
Height	404 mm

Uniclass	Pr_30_59_29_73 Roof slope ventilator tilesPrimary
CAWS	H67/70 Roof ventilator tiles H65/840 Ventilator tiles H65/86 Ventilator tiles H60/86 Ventilator tiles H60/840 Ventilator tiles

Specification data - Roof slope ventilator tiles

Purpose	Roof void ventilator and extract terminal.
Ventilation opening	10 000 mm²/m.
Colour	Red. Brown. Grey Terracotta. Red streak. Blue-black Black
Accessories	SUA Soil Universal Pipe Adapter. Flexi Pipe.

Roof pitch	22.5°. Guidance for specification option: Minimum.
AirFlowRate	54 m³/hr (10 Pa), 108 m³/hr (42 Pa), 216 m³/hr (162 Pa). Guidance for specification option: 54 m³/hr: Airflow resistance when used as SVP/ extract terminal at 10 Pa (15 l/s). 108 m³/hr: Airflow resistance when used as SVP/ extract terminal at 42 Pa (30 l/s). 216 m³/hr: Airflow resistance when used as SVP/ extract terminal at 162 Pa (60 l/s).
