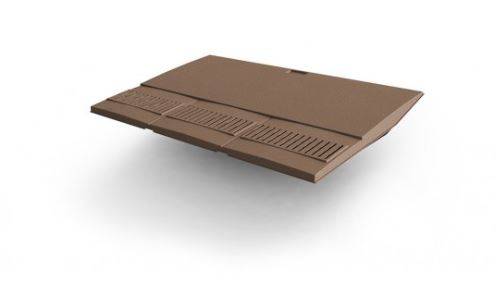

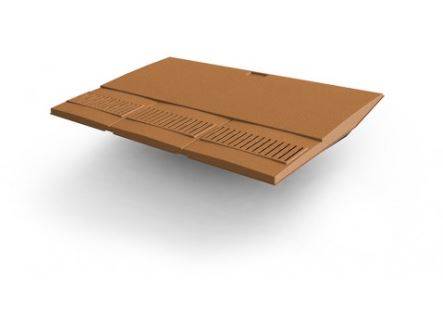

Glidevale Protect In-line® Plain Tile Ventilator - Roof Tile Vent

Verified by manufacturer 2 months ago

BPD Building Product Design Ltd

In-line® Housebuilder Plain Tile vent with a 7500 mm² ventilation area.

Jump to:
+44 (0)161 905 5700 Website

Application

Suitable for use:

  • With all concrete and clay double lap plain tiles.
  • At low level or high level where the roof construction does not allow for eaves or ridge ventilation.
  • Where complex wall or fire break walls obstruct air flow in the roof space.
  • In complex roof shapes where effective cross ventilation is not possible.
  • As a terminal for soil vent pipes or mechanical extract terminals with separately supplied accessories

Description

In-line® Housebuilder Plain Tile vent with a 7, 500 mm² ventilation area.


Features and benefits:

  • Unobtrusive profile makes it virtually unseen from the ground.
  • Designed to stop, catch and direct away any wind driven rain/snow.
  • Easily installed in the normal tiling process.
  • Excellent wind uplift resistance.
  • Easily converted for use as svp or mechanical extraction.
  • Manufactured with a high quality, long lasting surface treatment.
  • Integral 4 mm insect screen ensures no unwanted visitors.
  • Designed and developed under BS EN ISO 9001.

General information

Color

Red

Guidance for specification option:

Standard, terracotta or red streak.

Brown

Grey

Black

Finish

Sanded

Manufacturer guidance

All exposed surfaces are coated with a silica sand entrained in a multi-coat water based environmentally friendly uv-resistant coating.

Material

Acrylonitrile butadiene styrene (ABS)

Polyethylene

Shape

Rectangle

Width

324 mm

Height

499 mm

Uniclass

Pr_30_59_29_73 Roof slope ventilator tilesPrimary

CAWS

H60/840 Ventilator tiles

H60/86 Ventilator tiles

H65/86 Ventilator tiles

H65/840 Ventilator tiles

H67/70 Roof ventilator tiles

Specification data - Roof slope ventilator tiles

Purpose

Roof void ventilator; extract terminal.

Ventilation opening

7500 mm².

Colour

Red.

Brown.

Grey.

Terracotta.

Red streak.

Blue.

Guidance for specification option:

Blue / Black.

Black.

Accessories

SUA Soil Universal Pipe Adapter.

Flexi Pipe.

Roof pitch

35°.

Guidance for specification option:

Minimum.

AirFlowRate

54 m³/hr (10 Pa), 108 m³/hr (42 Pa), 216 m³/hr (162 Pa).

Guidance for specification option:

  • 54 m³/hr: Airflow resistance when used as SVP/ extract terminal at 10 Pa (15 l/s).
  • 108 m³/hr: Airflow resistance when used as SVP/ extract terminal at 42 Pa (30 l/s).
  • 216 m³/hr: Airflow resistance when used as SVP/ extract terminal at 162 Pa (60 l/s).

Sustainability data

Country of product manufacture

United Kingdom

BIM objects

Platform Compatible Version
Revit
-

1

Literature

Glidevale Protect Universal In-line® Slate and Tile Ventilators

Glidevale Protect Universal In-line® Slate and Tile Ventilators

Glidevale Protect In-Line® Tile, Slate & Ridge Ventilators

Glidevale Protect In-Line® Tile, Slate & Ridge Ventilators

BS 5250:2021 Management of moisture in buildings

BS 5250:2021 Management of moisture in buildings
