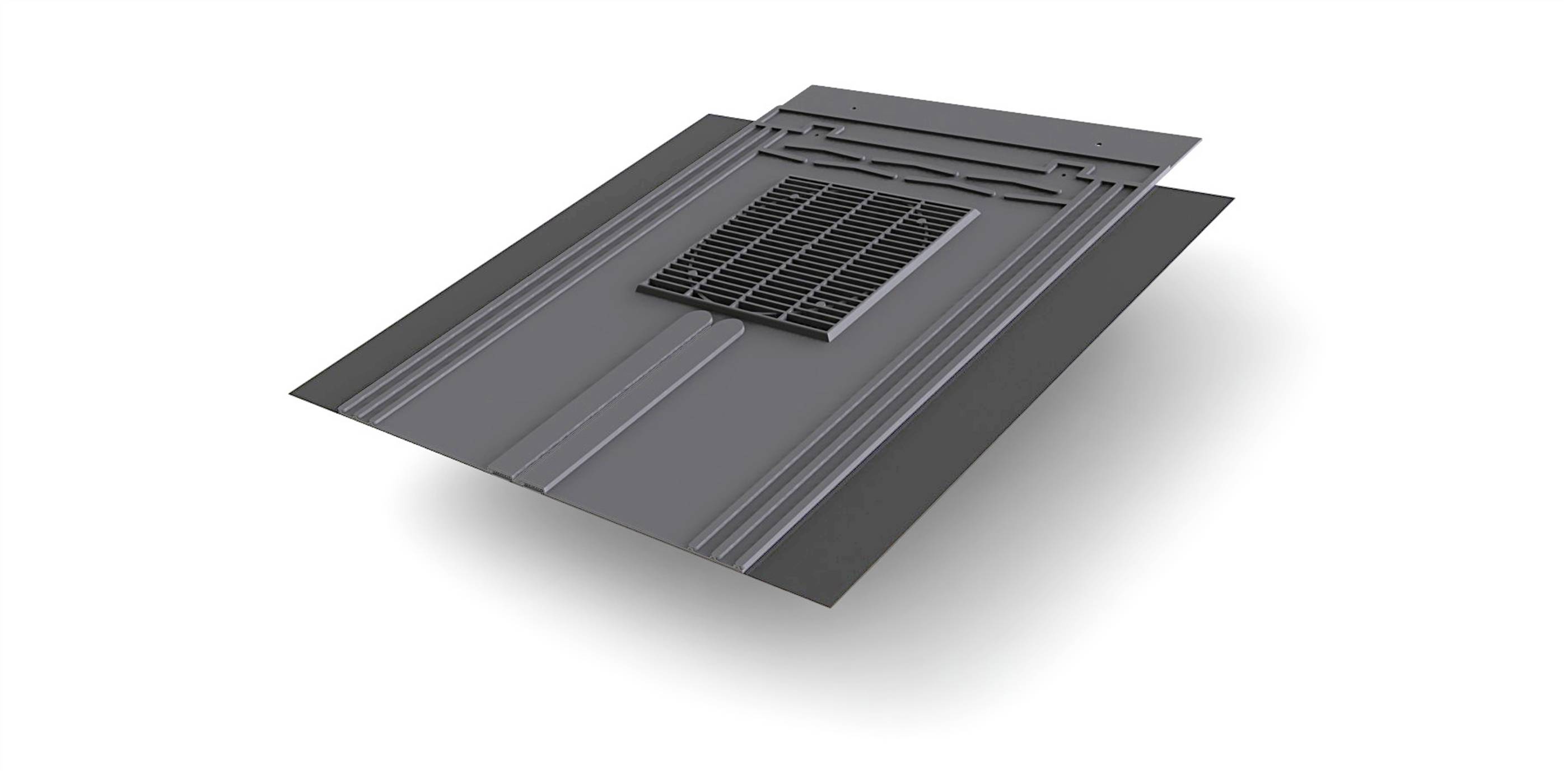

Glidevale Protect Universal In-line® Slate Ventilator - Roof Slate Vent

Verified by manufacturer 2 months ago

BPD Building Product Design Ltd

Universal In-line® Slate Ventilator with a 10 000 mm² ventilation area.

Jump to:
+44 (0)161 905 5700 Website

Application

Universal slate ventilator will work with the majority of slate sizes available.

Description

Glidevale Protect Universal IN-LINE® slate and tile ventilators have been designed to provide an aesthetic and unobtrusive solution to roof space ventilation. They can be used at low or high level where the roof construction does not allow eaves or ridge ventilators to be used, or where complex roof shapes do not allow effective cross ventilation.


Features and benefits:

  • Compact range of universal covers fit most of your ventilation requirements.
  • Unobtrusive profile – flush grille section set into the base ensures the vent is virtually unseen from the ground.
  • Concealed baffles catch any wind driven rain or snow that might penetrate the grille and return it via positive drainage channels to the roof slope.
  • Excellent ‘free draining’ design ensures no ponding of water in the vent.
  • Superior wind uplift resistance on interlocking designs.
  • Easily installed wherever required as part of the normal tile/ slating process.
  • Integral 4 mm insect screen ensures no unwanted visitors.
  • Designed and developed under BS EN ISO 9001.

General information

Color

Grey

Black

Red

Guidance for specification option:

Terracotta/ Red Streak

Brown

Finish

Smooth

Material

Acrylonitrile butadiene styrene (ABS)

Polypropylene

Shape

Rectangle

Width

316 mm

Height

452 mm

Material

Acrylonitrile butadiene styrene (ABS)

Polypropylene

Uniclass

Pr_30_59_29_73 Roof slope ventilator tilesPrimary

CAWS

H62/86 Ventilator slates

H61/86 Ventilator slates

H62/840 Ventilator slates

H61/840 Ventilator slates

Specification data - Roof slope ventilator tiles

Purpose

Roof void ventilator.

Extract termination.

Ventilation opening

10 000 mm².

Colour

Blue-black.

Grey.

Accessories

SUA Soil Universal Pipe Adapter.

Flexible connecting pipe.

Roof pitch

20°.

Air flow

54 m³/hr (10 Pa), 108 m³/hr (42 Pa), 216 m³/hr (162 Pa).

Guidance for specification option:

  • 54 m³/hr: Airflow resistance when used as SVP/ extract terminal at 10 Pa (15 l/s).
  • 108 m³/hr: Airflow resistance when used as SVP/ extract terminal at 42 Pa (30 l/s).
  • 216 m³/hr: Airflow resistance when used as SVP/ extract terminal at 162 Pa (60 l/s).

Sustainability data

Country of product manufacture

United Kingdom

Material

Acrylonitrile butadiene styrene (ABS)

Polypropylene
