G-Rail 2201 Curtain Track

Name: G-Rail 2201 Curtain Track
Brand: Goelst UK Ltd
SKU: gFcr4AqcMEPJthV23PiJt

Verified by manufacturer 4 months ago

Goelst UK Ltd

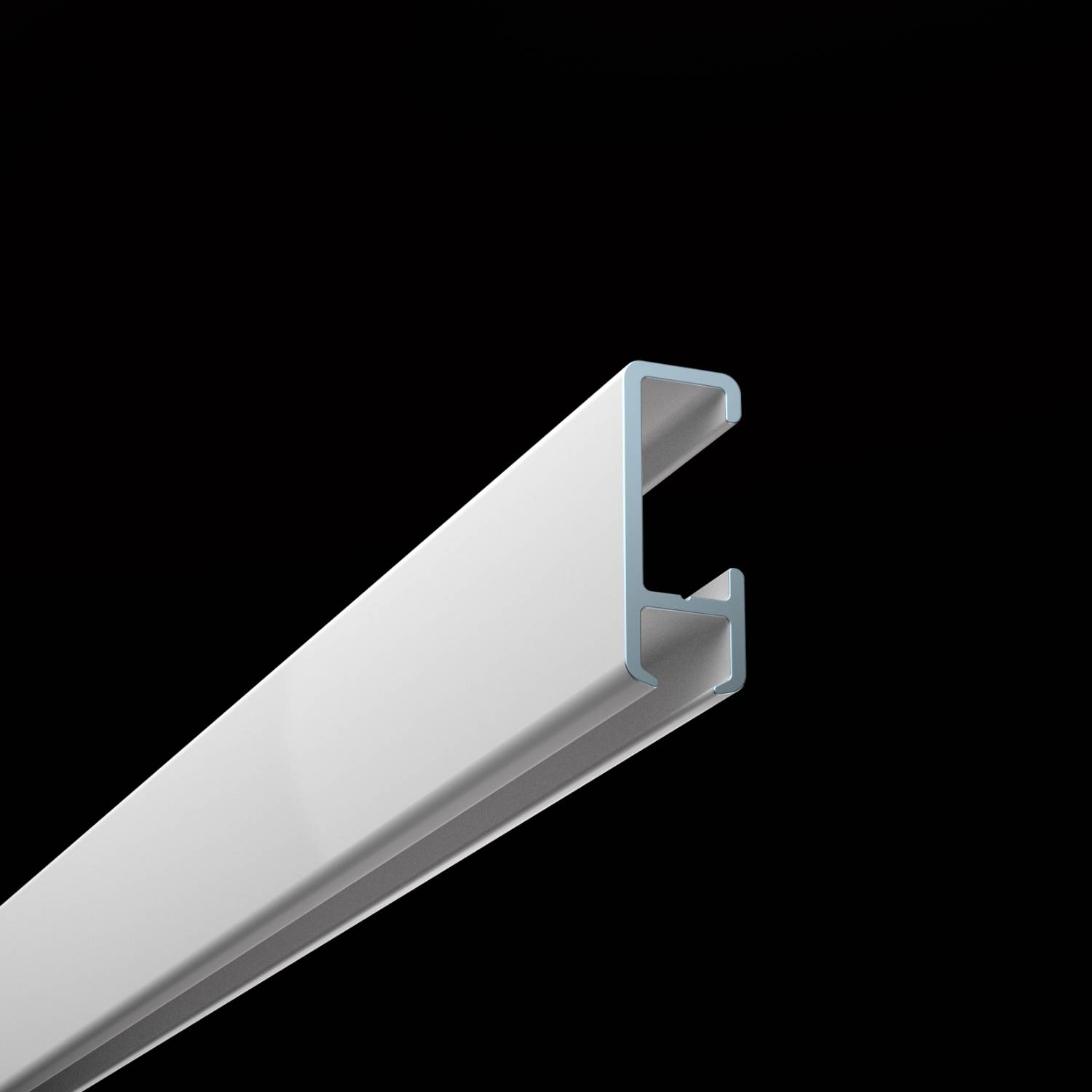

Light (23 mm) aluminium curtain track for hand-drawn medium weight curtains.

Jump to:

+44 (0)1423 873002 Website

Application

Designed for use with hand-drawn medium weight curtains.

Description

G-Rail 2201 Curtain Rail is designed for use with hand-drawn medium weight curtains.

Features and benefits:

Goelst profile 2201 is available in white RAL 9010 powder coated aluminium to 606035-T6-F22 (exceeds DIN 1725).
Shape and size tolerances are in accordance with DIN 17615.
The units are supplied complete with gliders at 16 per metre, two end stops and two end covers.
Profiles can be forward or reverse bent to a minimum radius of 100 mm.

General information

Color	White
Finish	Powder-coated
Material	Aluminium
Shape	Rectangle
Length	Bespoke
Width	8 mm
Height	22 mm
Warranty description	Five year Guidance for specification option: Warranty for five years against manufacturing defects.

Uniclass	Pr_40_30_20_96 Window curtain supportsPrimary
CAWS	N10/230 Curtain supports

Specification data - Window curtain supports

Overall length	- Manufacturer guidance Bespoke, manufacturered to size according to project requirements.
Material	Aluminium.
Finish	Powder coated.
Colour	RAL 9010, white. Guidance for specification option: Powder coated. Other. Guidance for specification option: A range of colours is available on request; consult manufacturer for details.

Fixing	Ref 2050-SYST. Guidance for specification option: Ref 2050-SYST: T-bar clip for ceiling grid – in combination with ceiling fixing bracket. Ref 2151-10. Guidance for specification option: Ref 2151-10: Wall fixing bracket. Ref 2216. Guidance for specification option: Ref 2216: Double fixing bracket – in combination with ceiling fixing bracket. Ref 2249-N. Guidance for specification option: Ref 2249-N: 90° Metal angle bracket. Ref 2250. Guidance for specification option: Ref 2250: Ceiling fixing bracket – extension brackets available. Ref 2254. Guidance for specification option: Ref 2254: Button clip. Ref 7450. Guidance for specification option: Ref 7450: Ceiling fixing bracket – extension brackets available. Ref 7451. Guidance for specification option: Ref 7451: Wall fixing bracket 60 mm. As drawing. Show more
Size (w x d)	23 x 8 mm.
Weight	135 g/m.
Accessories	Not required. Ref 2001-A: Metal end stop. Ref 2001-10: Twist end stop. Ref 2002: Screw twist end stop. Ref 2003: Spring stop. Ref 2010-10: Glider. Ref 2011-10: Glider with SS hook. Ref 2012-10: Click glider. Ref 2012-40: Click glider transversed. Ref 2012-50: Click glider with hook. Ref 2015-05: Extension bracket to suit ceiling brackets. brackets.Ref 2015-10: Extension bracket to suit ceiling brackets.Ref 2015-15: Extension bracket to suit ceiling brackets.Ref 2018-15: Extension bracket heavy-duty to suit ceiling brackets.Ref 2019-20: Extension bracket heavy-duty to suit ceiling brackets.Ref 2019-25: Extension bracket heavy-duty to suit ceiling brackets.Ref 2019-30: Extension bracket heavy-duty to suit ceiling brackets.Ref 2020: Double hook.Ref 2021: G-hook curtain hook.Ref 2022: Curtain hook.Ref 2023: Curtain hook for Ref: 2025.Ref 2024-55: Sew-in hook.Ref 2025: Glider with curtain hook.Ref 2248: Nylon corner connector.Ref 2248-N: Metal corner connector.Ref 2252-10: Connecting bridge.Ref 2253: End cap. Ref 2015-07.5: Extension bracket to suit ceiling brackets. Ref 2015-10: Extension bracket to suit ceiling brackets. Ref 2015-15: Extension bracket to suit ceiling brackets. Ref 2018-15: Extension bracket heavy-duty to suit ceiling brackets. Ref 2019-20: Extension bracket heavy-duty to suit ceiling brackets. Ref 2019-25: Extension bracket heavy-duty to suit ceiling brackets. Ref 2019-30: Extension bracket heavy-duty to suit ceiling brackets. Ref 2020: Double hook. Ref 2021: G-hook curtain hook. Ref 2022: Curtain hook. Ref 2023: Curtain hook for Ref: 2025. Ref 2024-55: Sew-in hook. Ref 2025: Glider with curtain hook. Ref 2248: Nylon corner connector. Ref 2248-N: Metal corner connector. Ref 2252-10: Connecting bridge. Ref 2253: End cap. Show more

Sustainability data

Country of product manufacture	United Kingdom Guidance for specification option: The UK and The Netherlands.
Recyclability	100% Guidance for specification option: Goelst aluminium profiles are 100% recyclable, synthetic components and raw materials are recycled either internally or by specialist converter.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	75 % Guidance for specification option: Goelst curtain track profiles are composed of 75% recycled aluminium.

Literature

G-Rail hand drawn small channel - 2200 series

Sustainability Document
