4100 Hand-Drawn Curtain Track

Application

  • For lightweight, mediumweight or heavy curtains and sheers.
  • Used in private homes as well as in professional environments such as office buildings, hotels and care institutions.
  • Compatible with the Goelst Flow System for regularly pleated curtains.

Description

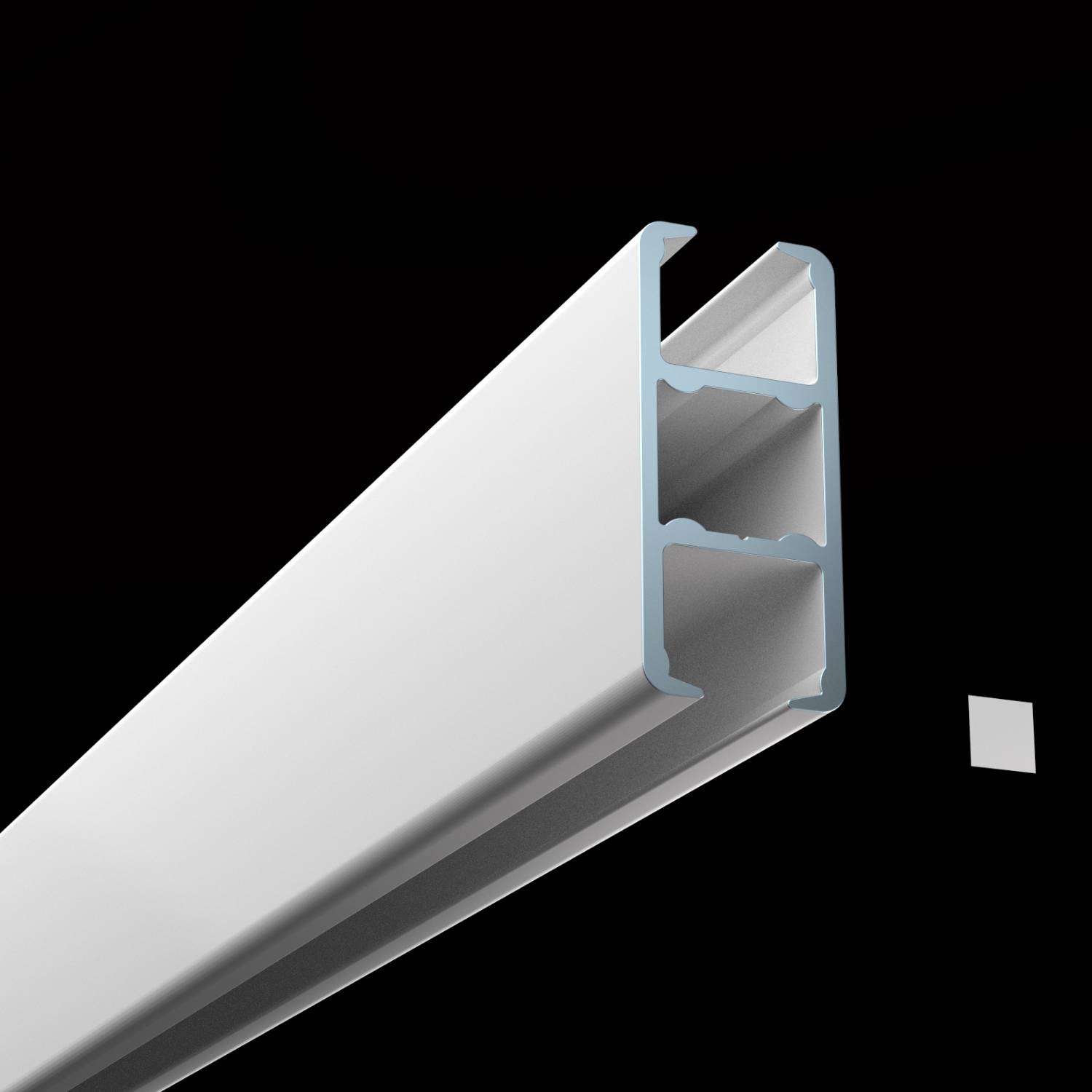

Hand-drawn aluminium curtain track.


Features and benefits:


  • The strongest curtain track in Goelst's range.
  • Easy to mount on a wall or a ceiling or can be a suspended system.
  • Easy to bend; silent and smooth running.
  • Selected materials allow curtains to run silently and smoothly, including around bends.
  • The curtain track can be pre-formed to match customer requirements and delivered as a single piece to eliminate the disadvantage of separate bends and joins in the running length.
  • Track lengths above 6.0 mts will include internal connecting bridge at appropriate position.

General information

Color

Silver

White

Black

Finish

Anodized

Powder coated

Material

Aluminium

Length

Bespoke

Width

15 mm

Height

34 mm

WarrantyDescription

Five year

Warranty for five years against manufacturing defects.

Uniclass

Pr_40_30_20_96 Window curtain supportsPrimary

CAWS

N10/60 Curtain supports

N10/230 Curtain supports

Specification data - Window curtain supports

Support

Curtain tracks.

Overall length

Bespoke, manufacturered to size according to project requirements.

-

Material

Aluminium.

Finish

Anodized.

Powder coated.

Colour

Self-coloured.

RAL 9010, white.

RAL 9005, black.

Operation

Manual.

Integral accessories

Gliders.

End stops.

End caps.

Metal ceiling support bracket.

Weight

405 g/m.

Environmental information

Country of product manufacture

United Kingdom

The UK and The Netherlands.

Recyclability

100%

Goelst aluminium profiles are 100% recyclable, synthetic components and raw materials are recycled either internally or by specialist converter.

Recycled content

75 %

Goelst curtain track profiles are composed of 75% recycled aluminium.

Literature

G-Rail hand drawn wide channel - 4100

G-Rail hand drawn wide channel - 4100
