NBS Source

Application

  • Ceiling mounted track for use with light-weight curtains.
  • Commonly used in caravans, campers and boats.
  • Compatible with the Goelst Flow System for regularly pleated curtains.

Description

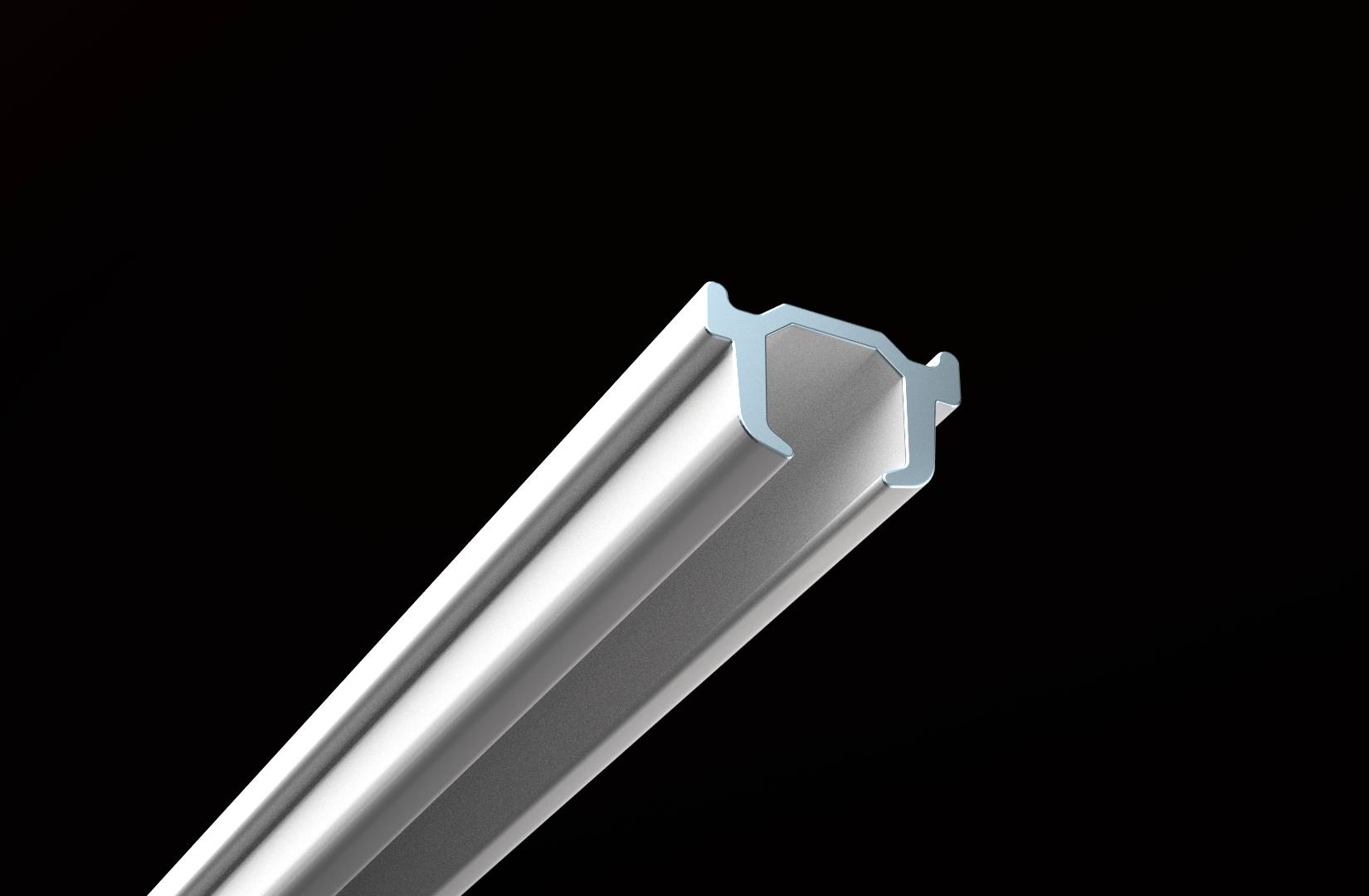

A 7.5 mm deep aluminium curtain track that can be mounted on concrete or timber.


Features and benefits:

  • Can be forward or reverse bent in different radii.
  • Concealed mounting on wooden ceilings with screws or on concrete ceilings with a metal fixing bracket.
  • Available as standard in two colours: white and anodised aluminium.
  • Accessories available in matching colours.
  • Coated aluminium.

General information

Color

Silver

White

Finish

Anodized

Powder-coated

Material

Aluminium

Length

Bespoke

Width

12 mm

Height

7 mm

WarrantyDescription

Five year

Warranty for five years against manufacturing defects.

Uniclass

Pr_40_30_20_96 Window curtain supportsPrimary

CAWS

N10/230 Curtain supports

Specification data - Window curtain supports

Support

Curtain tracks.

Overall length

Bespoke, manufacturered to size according to project requirements.

-

Material

Aluminium.

Finish

Anodized.

Powder coated.

Colour

Self-coloured.

RAL 9010, white.

Operation

Manual.

Integral accessories

Gliders.

End stops.

Accessories

Ref 2001.

Ref 2010.

Ref 2011.

Ref 2013.

Ref 2014.

Show more

Weight

94 g/m.

Environmental information

Country of product manufacture

United Kingdom

The UK and The Netherlands.

Recyclability

100%

Aluminium profile - 100% recyclable, synthetic components are recycled either internally or by specialist converter.

Recycled content

75 %

Goelst curtain track profiles are composed of 75% recycled aluminium.

Literature

2400

2400
