2102 Hand-Drawn Curtain Track - Hand Drawn Curtain Track

Name: 2102 Hand-Drawn Curtain Track - Hand Drawn Curtain Track
Brand: Goelst UK Ltd
SKU: 2ean1mTksEkU7ZAmFaN9wg

Verified by manufacturer 2 months ago

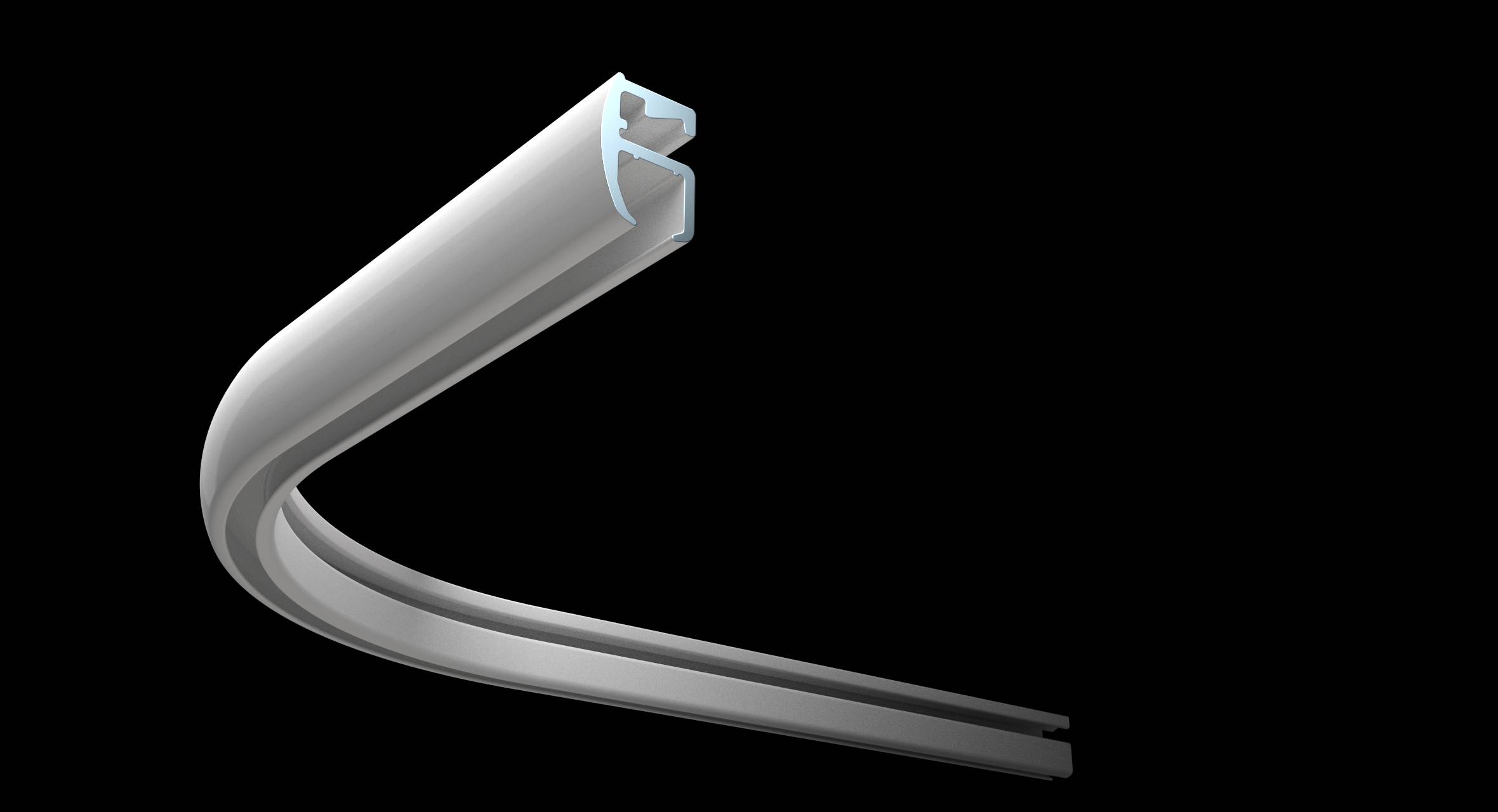

Narrow channel, hand-drawn aluminium curtain track.

Jump to:

Application

For use with hand-drawn, lightweight and mediumweight curtains and sheers.
Suitable for office buildings, care institutions and bay windows of private homes.

Hand-drawn, 15 mm deep aluminium curtain track that can be mounted on a wall or ceiling.

Features and benefits:

Profiles can be forward or reverse bent to a minimum radius of 100 mm.
Accessories available in matching colours.
Smart mounting brackets with cover flaps conceal screws from sight.
Silent and smooth running, including around bends.
The aluminium profile is available in silver anodized, RAL9005 Black or white RAL 9010 powder-coated aluminium 606035-T6-F22 (exceeds DIN 1725) finishes.
Shape and size tolerances are in accordance with DIN 17615.
The units are supplied complete with gliders at 16 per metre and two end stops.

Color	Silver White Black
Finish	Anodized Powder-coated
Material	Aluminium Guidance for specification option: EN AW-6060-T66
Shape	Other
Length	Bespoke
Width	10 mm
Height	15 mm
Warranty description	Five year Guidance for specification option: Warranty for five years against manufacturing defects.

Uniclass	Pr_40_30_20_96 Window curtain supportsPrimary
CAWS	N10/230 Curtain supports

Description	Narrow channel, hand-drawn aluminium curtain track.
Support	Curtain tracks.
Overall length	- Manufacturer guidance Bespoke, manufacturered to size according to project requirements.
Material	Aluminium. Guidance for specification option: EN AW-6060-T66
Finish	Anodized. Powder-coated.
Colour	Self-coloured. RAL 9010, white. RAL9005, Black.
Operation	Manual.
Integral accessories	Gliders. End stops. End caps. Connecting bridge. Support brackets with covers.

Accessories	Ref 2001-A: Metal end stop. Ref 2001-10: Twist end stop. Ref 2002: Screw twist end stop. Ref 2003: Spring stop. Ref 2010-10: Glider. Ref 2011-10: Glider with SS hook. Ref 2012-10: Click glider. Ref 2012-40: Click glider transversed. Ref 2012-50: Click glider with hook. Ref 2015-05: Extension bracket to suit ref 2150-10. Ref 2015-07.5: Extension bracket to suit ref 2150-10. Ref 2015-10: Extension bracket to suit ref 2150-10. Ref 2015-15: Extension bracket to suit ref 2150-10. Ref 2018-15: Extension bracket heavy-duty to suit ref 2150-10. Ref 2019-20: Extension bracket heavy-duty to suit ref 2150-10. Ref 2019-25: Extension bracket heavy-duty to suit ref 2150-10. Ref 2019-30: Extension bracket heavy-duty to suit ref 2150-10. Ref 2020: Double hook. Ref 2021: G-hook curtain hook. Ref 2022: Curtain hook. Ref 2023: Curtain hook for Ref: 2025. Ref 2024-55: Sew-in hook. Ref 2025: Glider with curtain hook. Ref 2152: Connecting bridge. Show more
Weight	174 g/m.
Fixing	Ref 2050-SYST T-bar clip for ceiling grid. Guidance for specification option: T-bar clip for ceiling grid in combination with 2150-10. Ref 2150-10 ceiling fixing bracket. Guidance for specification option: Ceiling fixing bracket; extension brackets available, see Accessories. Ref 2151-10 wall fixing bracket. Ref 2216 double fixing bracket. Guidance for specification option: Double fixing bracket in combination with 2150-10.

Country of material origin	Netherlands
Country of product manufacture	United Kingdom Guidance for specification option: The UK and The Netherlands.
Material	Aluminium Guidance for specification option: EN AW-6060-T66
Recyclability	100% Guidance for specification option: Goelst aluminium profiles are 100% recyclable, synthetic components and raw materials are recycled either internally or by specialist converter.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	75 % Guidance for specification option: Goelst curtain track profiles are composed of 75% recycled aluminium.
