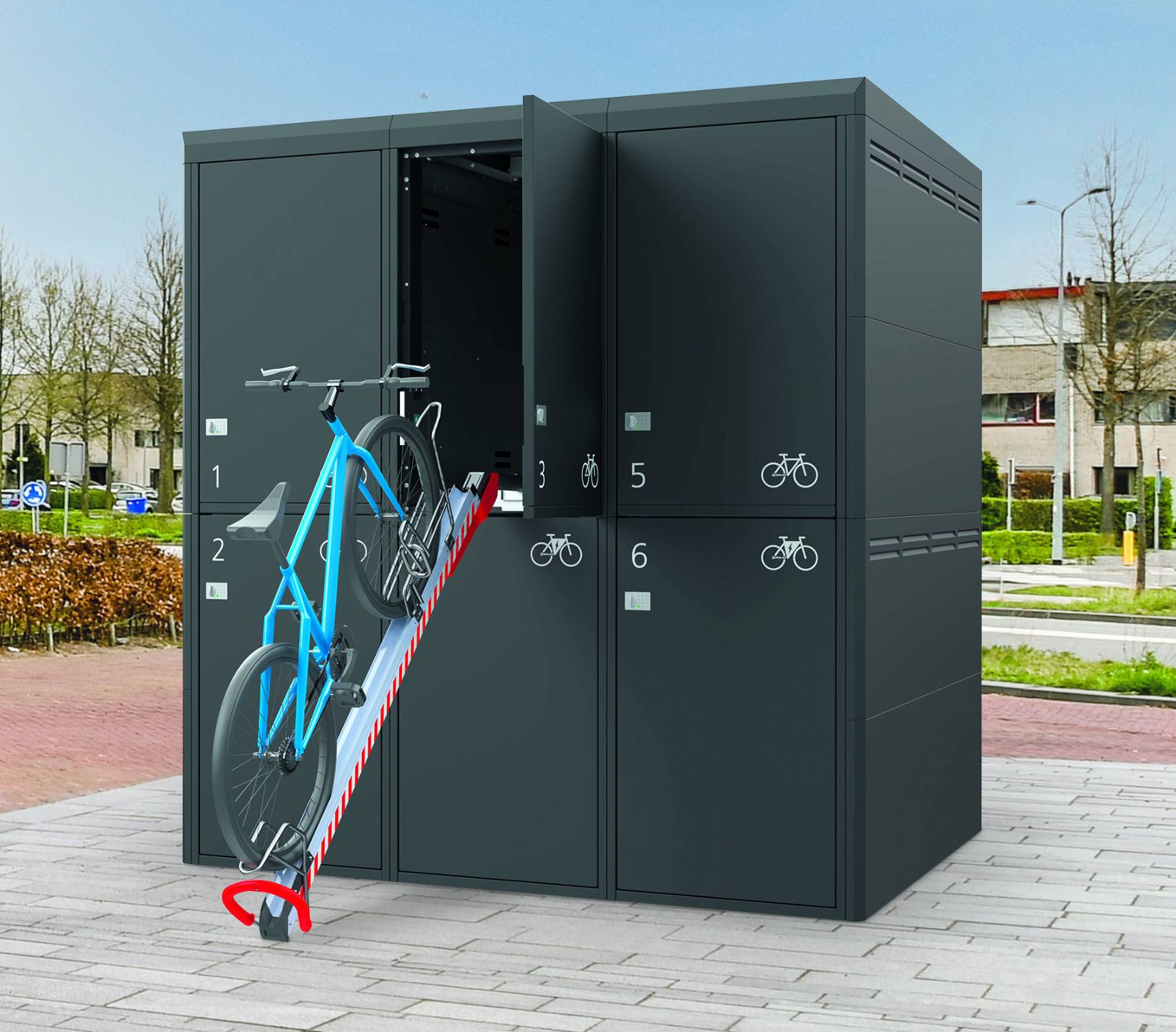

Fullerton PIN Bike Locker

The Fullerton PIN two-tier bike locker is suitable for safe and convenient bicycle parking. Manufactured according to DIN 79008 standards, this modular system offers the highest quality and durability.

Manufactured from folded steel sheet elements and a rail that easily accommodates tyres up to 60 mm wide, while guaranteeing maximum stability and safety.

This locker is equipped with numerous features, such as charging options, storage compartments with grounded sockets and USB ports, and LED interior lighting in each compartment for maximum convenience.

The wide range of colours and diverse design options allows for individual customisation and harmonious integration into the surroundings.

Thanks to the robust flat roof, galvanised side walls, and burglar-resistant door construction, the bicycle garage is optimally protected against the elements and unauthorised access.

Construction:

• Modular building system in single- or two-tier design, manufactured according to the requirements of DIN 79008
• Bent sheet steel elements, 1.5 mm or 2.0 mm thick, bicycle entry rail with front wheel holder for tyre width up to 60 mm
• Two-tier arm rack is gas-assisted and includes an anti-rollback device and a wheel holder
• Charging option in the lower box, including a storage compartment with 230V grounded socket and 3A circuit breaker with USB-A and USB-C ports, and LED interior lighting per compartment
• Versions for cargo bikes are available on request

Surface / Colour:

• All steel parts are galvanised
• Exterior is powder-coated

Roof:

• Flat roof made of robust steel sheet, 1.5 mm thick, with internal reinforcing profile beams
• Canopy and solar LED outdoor lighting for the two-story version in anthracite, as well as a green roof tray, available at an additional cost

Back, intermediate and side walls:

• Made of galvanised and profiled sheet steel, 1.5 mm thick, with ventilation slots to prevent condensation and for air circulation, burglar-resistant, screwed or riveted from the inside
• Additional side wall infills are available as an option with perforated sheet metal, wooden slats (spruce stained), aluminium strips in wood décor or WPC in standard colours

Door:

• Robust, reinforced door frame made of folded sheet steel, 2 mm thick, door with additional vertical reinforcing strut, opening supported by a gas spring
• Includes clothes and helmet hooks on the inside of the bicycle garage doors in the lower tier of boxes
• Outdoor locking mechanism with a multi-user PIN code
• Emergency unlocking from the outside is possible via master code. Emergency unlocking is also possible from the inside
• Labelling and numbering are available as options
• Booking software available on request

Drainage:

• Dripping freely over the rear roof edge

Mounting:

• Surface-mounted using adjustable feet on a rigid surface (not included)

Delivery:

• Flat-packed items, with assembly instructions included
• Installation by qualified personnel is recommended upon request.
