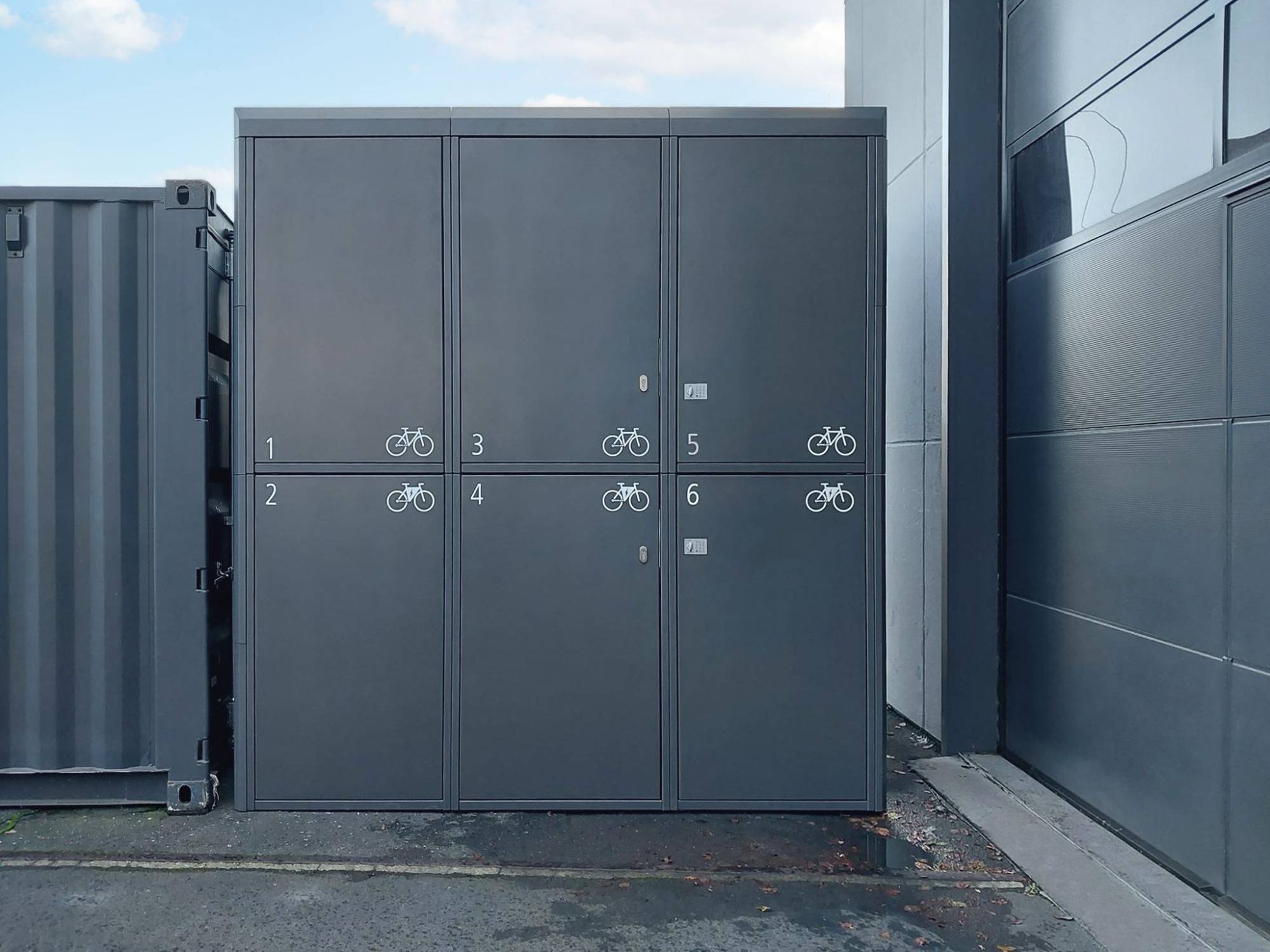

Fullerton E Bike Locker
Verified by manufacturer 6 days ago
A modular, secure bicycle garage for single or double‑deck storage, designed for weather protection and space efficiency. Certified to DIN 79008, the FULLERTON‑E offers optional electronic access cont
Application
Suitable for storing individual bicycles while providing excellent protection against the weather, vandalism, and theft.
Description
Fullerton E is suitable for storing individual bicycles while providing excellent protection against the weather, vandalism, and theft. Certified according to DIN 79008, meets the highest standard of safety and user-friendliness.
It is available in a single- or double-storey version and can be expanded as needed thanks to its modular design.
Integrated gas springs ensure easy access to and from the upper level for bicycles without requiring any special effort.
Offers optional electronic access control, e‑bike charging, LED lighting, and customizable panels. Fully galvanized and powder coated, flat roof with optional green tray. Includes hooks, ventilation, drainage, and concrete anchor fixings.
With its diverse design options, this high-quality bicycle box blends harmoniously into any environment.
At the end of its life cycle, materials can be separated and recycled.
Fullerton E is compatible with different electronic control solutions, making it an ideal bicycle parking solution for a wide range of (semi-)public operators.
General information
Color | Clear Beige Black Blue Bronze |
Finish | Galvanized Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | 1866 mm 2738 mm 3611 mm 4483 mm 5356 mm |
Width | 2100 mm |
Height | 1570 mm 2945 mm |
Warranty description | One year |
Uniclass | |
CAWS | Q50/212 Cycle lockers |
Specification data - Carbon steel cycle lockers
Classification data | |
Stand type | Cycle. |
Dimensions | |
Width | 1866 2738 3611 4483 5356 |
Depth | 2100 mm. |
Height | 1570 mm. Guidance for specification option: Single-storey. 2945 mm. Guidance for specification option: Two-storey. |
Materials | |
Frame | Carbon steel. |
Panels | Galvanized and profiled sheet steel, 1.5 mm thick, with ventilation slots to prevent condensation and for air circulation. Guidance for specification option: Further side wall filling optionally with perforated sheet, aluminium strips in wood décor, WPC or wood battens (spruce glazed) for an additional charge. Insert requirements. |
Finish as delivered | Galvanized to BS EN ISO 1461. |
Colours | RAL 1003 signal yellow. RAL 3003 ruby red. RAL 5009 azure blue. RAL 6009 fir green. RAL 7004 signal grey. RAL 7015 slate grey. RAL 7035 light grey. RAL 8016 mahogany brown. RAL 9010 pure white. RAL 1013 pearl white. RAL 3004 purple red. RAL 5010 gentian blue. RAL 6012 black-green. RAL 7005 mouse grey. RAL 7016 anthracite grey. RAL 7037 dusty grey. RAL 8019 grey-brown. RAL 9011 graphite black. RAL 1021 rapeseed yellow. RAL 3005 burgundy. RAL 5013 cobalt blue. RAL 6018 yellow-green. RAL 7006 beige grey. RAL 7021 black-grey. RAL 7039 quartz grey. RAL 9002 grey-white. RAL 9016 traffic white. RAL 2001 red-orange. RAL 3020 traffic red. RAL 5015 sky blue. RAL 6024 traffic green. RAL 7009 green-grey. RAL 7022 umbra grey. RAL 7043 traffic grey B. RAL 9005 deep black. ca. DB 701 Iron Mica. RAL 3000 fire red. RAL 5002 ultramarine blue. RAL 5017 traffic blue. RAL 7000 grey. RAL 7011 iron grey. RAL 7024 graphite grey. RAL 7044 silk grey. RAL 9006 white aluminium. ca. DB 702 Iron Mica. RAL 3001 signal red. RAL 5003 sapphire blue. RAL 6005 moss green. RAL 7001 silver-grey. RAL 7012 basalt grey. RAL 7030 stone grey. RAL 8002 signal brown. RAL 9007 grey aluminium. ca. DB 703 Iron Mica. RAL 3002 carmine red. Manufacturer guidanceThe wide range of colours and diverse design options allows customization of the garage and integrate it harmoniously into its surroundings. Select a ZIEGLER standard RAL colour or insert requirements. |
Accessories | Bicycle symbol for e-bikes/ pedelecs label. Bicycle symbol label. Canopy (for two-storey version). Electronic access control. Guidance for specification option: Electronic access authorisation is provided for the FULLERTON-E bicycle garage. The combination with the tried-and-tested, optionally available SmartBikeBox access control system creates a practical complete solution. Consult manufacturer for details and insert requirements. Green roof tray, gutter and downpipe/ canopy. Guidance for specification option: The FULLERTON-E bicycle garage can be extended with a green roof tray, gutter and downpipe or a canopy. A green roof offers special added value, because it is not only a visual highlight and brings a piece of nature back into our urbanized environment, but also has other advantages: The plants on the roof bind CO₂, retain water and, thanks to their structurally rich vegetation, act like a fine dust filter, which has a positive effect on the climate balance. The greening structure has a long service life and protects against weather extremes such as storms, hail, UV radiation and extreme temperatures, which are also occurring more and more frequently in our country. In addition, the use of sustainable green roofs is already anchored in the building regulations of many municipalities and municipalities. Greening tub. LED interior lighting (per subject). LED lighting outside (only for two-storey version). Label numbering. e‑bike charging. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Manufacturing plant location | |
Material | Steel |
Recyclability | Yes |
Expected Life | Ten year |
