FTS Tree Grilles - Tree Surround
Verified by manufacturer 4 months ago
MEDW06A
MEDW06A
Fully integrated fabricated tree grille systems.
Application
- Urban tree planting applications.
- Clyde grilles are not suitable for vertical tree guards.
Description

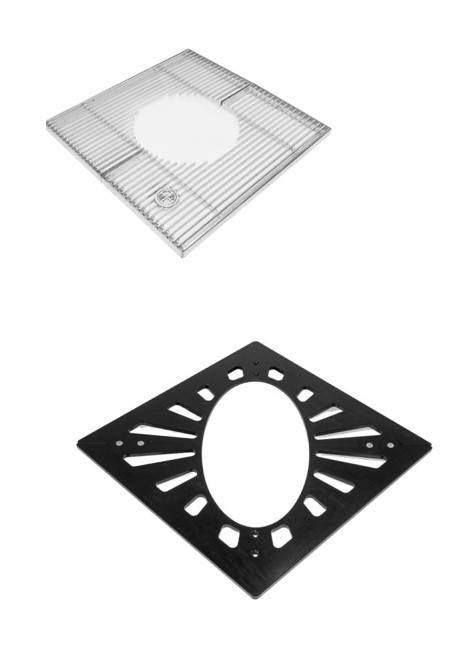

A range of fully integrated fabricated tree grille systems, including the Medway and Clyde grilles.

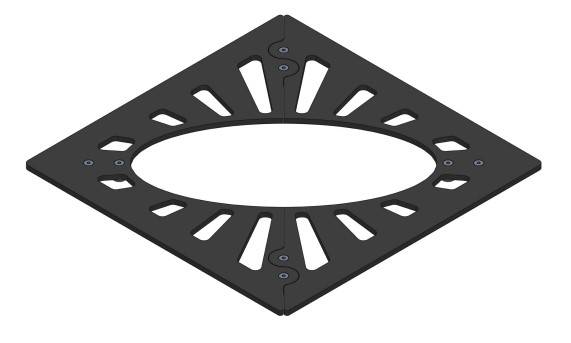

The Medway grille is 600 mm square designed to fit within the space of a single paving slab. Suits small species, low budget tree pits where full tree maturity is not required. RD510 root directors and Metro irrigation systems are supplied complete with the Medway tree grille to create a full low soil volume tree pit system. The Medway comes in a black powder coated finish.
The Clyde grille is a galvanized steel grille available in a range of sizes and can be powder-coated black. It has a heavy-duty galvanized support frame, anti-theft lugs and stainless steel fixings. The Clyde grille is compatible with GreenBlue Urban below ground systems and is strong enough for light vehicular overrun.
Features and benefits:
- Integrated irrigation system.
- Prevents compaction of soil.
- Enables water to freely access rooting area.
- Vandal-resistant.
General information
Color | Black Guidance for specification option: Standard colour RAL 9005 Matt Black. Full range of RAL colours available to order. Silver |
Finish | Powder-coated |
Material | Stainless steel Steel Guidance for specification option: Includes Cor-Ten. |
Shape | Square |
Length | 600 mm 1200 mm 1500 mm 1000 mm |
Width | 600 mm 1200 mm 1500 mm 1000 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | Q50/37 Tree grilles Q50/262 Tree grilles Q10/305 Tree grilles and surrounds |
Specification data - Tree grilles
Material | Mild galvanized steel.Guidance for specification option: As standard. Stainless steel, grade 304.Stainless steel, grade 316.Corten steel. |
Finish | None.Powder-coated. |
Shape | Square. |
Internal aperture | 500 mm.600 mm. |
Accessories | None.Spare fixing kit.Guards to grille fixing pack. |
Load capacity | 1.5 tonne (maximum) slow moving wheel load. |
Options | None. Heel safe/ DDA. HGV loading. Slip resistance. Alternative colours. |
Components | Medway laser cut steel tree grille, C/W RootRain Metro Irrigation and RD510 RootDirector. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Stainless steel Steel Guidance for specification option: Includes Cor-Ten. |
Recyclability | 100% recyclable |
Expected Life | 100 year |
Literature

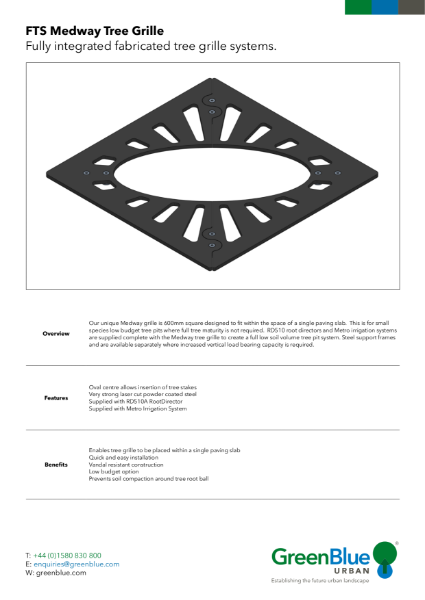

GBU Medway Tree Grille Datasheet

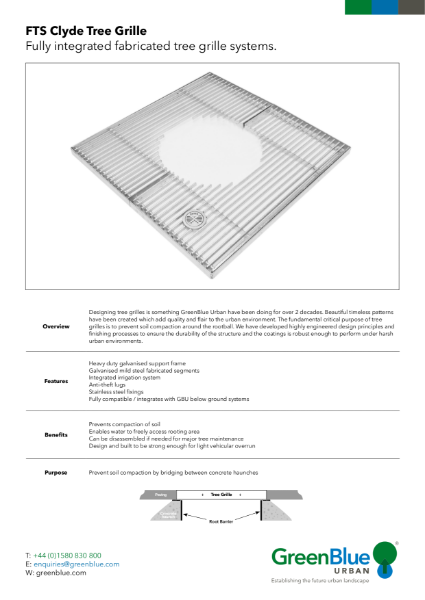

GBU Clyde Tree Grille Datasheet
