Precast Tree Grilles
Verified by manufacturer 4 months ago
SSPC12UGA - Precast SettStone
SSPC12UGA - Precast SettStone
Fully integrated precast tree grille systems.
Application
Urban tree planting applications.
Description

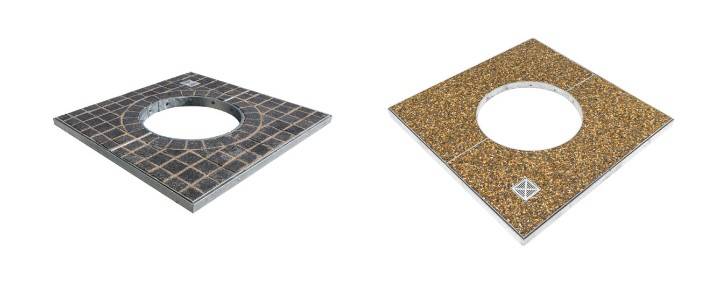

The tree grille systems consist of steel trays supplied prefilled with stone surfacing (Precast ArboResin) or granite sett surfacing (Precast SettStone). Integrated irrigation systems are included.
Features and benefits:
- Heavy duty galvanized support frame.
- Anti-theft lugs and central locking ring.
- Stainless steel fixings.
- Fully compatible with GreenBlue Urban below ground systems.
- Steel tray system prevents long term cracking and deterioration.
- Porous systems, suitable for perfect for SuDS applications.
- Heelproof and wheelchair friendly.
- Prevents compaction of soil.
- Permits natural irrigation and aeration of soil.
- Can be disassembled if needed for major tree maintenance.
- Design and built to be strong enough for light vehicular overrun.
General information
Color | Brown Black |
Material | Steel Stone |
Shape | Square |
Length | 1000 mm 1200 mm 1500 mm 1800 mm 2000 mm Manufacturer guidanceOpening size: 600 mm diameter. |
Width | 1000 mm 1200 mm 1500 mm 1800 mm 2000 mm |
Height | 71 mm 81 mm 150 mm |
Uniclass | |
CAWS | Q10/305 Tree grilles and surrounds Q50/262 Tree grilles Q50/37 Tree grilles |
Specification data - Tree grilles
Material | Galvanized steel frame and granite sett infill. |
Finish | Galvanized. |
Colour | Black. |
Shape | Square. |
Size | 1200 x 1200 x 71 mm. |
Internal aperture | 600 mm. |
Accessories | None.Spare fixing kit.Guard to grille fixing pack. |
Load capacity | 1.5 tonne (maximum) slow moving vehicle load. |
Options | None. Heel safe/ DDA. HGV loading. Slip resistance. Manufacturer guidanceConsult manufacturer and insert requirements. |
Permeability | SuDS compliant 65 L/m² per hour. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel Stone |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidanceGBU Target: Carbon Neutral 2020. |
Recyclability | 100% recyclable |
Expected Life | 100 year |
Literature
GBU Precast Arboresin Tree Grille Datasheet
GBU Precast Settstone Tree Grille Datasheet
