Freestanding Stove in Recess with Double Module Chimney Blocks

Verified by manufacturer 2 days ago

DM Block: 360 mm Square Casing

Schiedel Chimney Systems Variant:
Third party certifications:

  • ISO 9001 Quality Management

    Certificate type

  • TUV NORD

    TUV NORD

    Certificate type

Freestanding stove in recess with double module chimney blocks.

Jump to:
BOS
 +44 (0)191 416 1150 Website

Application

For DM block chimneys. Suitable for use in negative pressure (dry chimney) applications.

Description

Chimney system compromising pumice concrete high flue block, square casing, square corbel, support lintel, square support block, angled flashing kit and ceramic roll top pot.


Features and benefits:

  • Pumice concrete is easy to build.
  • Highly insulated.
  • Lightweight.
  • Resistance to temperature changes - 41—45% efficient.
  • Supplied with damper for less heat loss.
  • Angled flashing kit is manufactured with a malleable aluminium base and is used to provide a water tight flashing around the chimney as it passes through a roof pitched between 0—45 degrees.
  • Ceramic roll top pot is resistant to thermal shock, lightweight and has a smooth inner wall.

General information

Color

Cream

Guidance for specification option:

Buff.

Orange

Guidance for specification option:

Terracotta.

Manufacturer guidance

Roll top pot.

Finish

Other

Material

Concrete

Guidance for specification option:

Pumice concrete.

Ceramic

Aluminium

Stainless steel

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

20 year

Uniclass

Ss_37_17_13_50 Masonry chimney stack systemsPrimary

CAWS

F30/96 Chimney pots

F30/940 Chimney pots

Specification data - Masonry chimney stack systems

Masonry units

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Mortar

-

Mortar materials

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Dpcs

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Dpc joint sealant

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Wall ties

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Inset open fireplace

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Flue

Pumice concrete flue blocks.

Guidance for specification option:

126369.

  • Weight: 10 kg.
  • Internal diameter: 150 mm.
  • Height: 250 mm.

Flue copings and cappings

Ceramic chimney pot - 10 kg buff.

Guidance for specification option:

126370.

  • Internal diameter: 150 mm.
  • Height: 300 mm.
  • A: 450 mm.
  • Weight: 10 kg.

Ceramic chimney pot - 10 kg terracotta.

Guidance for specification option:

126371.

  • Internal diameter: 150 mm.
  • Height: 300 mm.
  • A: 450 mm.
  • Weight: 10 kg.

Ceramic chimney pot - 12 kg buff.

Guidance for specification option:

130697.

  • Internal diameter: 200 mm.
  • Height: 375 mm.
  • A: 450 mm.
  • Weight: 12 kg.

Ceramic chimney pot - 12.4 kg terracotta.

Guidance for specification option:

127341.

  • Internal diameter: 200 mm.
  • Height: 375 mm.
  • A: 450 mm.
  • Weight: 12.4 kg.

Manufacturer guidance

Roll top pot.

Ancillary structural components

Support lintel - 1500 x 140 mm.

Guidance for specification option:

146431.

  • Weight: 71 kg.
  • Max weight: 3250 kg.

Support lintel - 1500 x 215 mm.

Guidance for specification option:

146432.

  • Weight: 51 kg.
  • Max weight: 1650 kg.

System accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Samples required

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Flashing kit

Angled flashing kit 45° - 180 mm.

Guidance for specification option:

128088.

  • Weight: 2.3 kg.
  • Internal ∅: 180 mm.
  • External ∅: 235 mm.
  • Colour: Plain.

Angled flashing kit 45° - 200 mm.

Guidance for specification option:

128574.

  • Weight: 1.19 kg.
  • Internal ∅: 200 mm.
  • External ∅: 256 mm.
  • Colour: Plain.


Angled flashing kit 45° - 80 mm.

Guidance for specification option:

130509.

  • Weight: 1.03 kg.
  • Internal ∅: 80 mm.
  • External ∅: N/A.
  • Colour: Plain.


Angled flashing kit 45° - 100 mm.

Guidance for specification option:

124737.

  • Weight: 1.25 kg.
  • Internal ∅: 100 mm.
  • External ∅: N/A.
  • Colour: Plain.


Angled flashing kit 45° - 150 mm.

Guidance for specification option:

130662.

  • Weight: 1.32 kg.
  • Internal ∅: 150 mm.
  • External ∅: 200 mm.
  • Colour: Black.


Casing

Pumice concrete square casing - 360 mm.

Guidance for specification option:

130714.

  • Weight: 19 kg.
  • Width: 360 mm.
  • Height: 250 mm.
  • CE Designation (T450 N1 D 3 G(00).

Manufacturer guidance

DM block.

Corbel

Leca concrete square corbel - 570 mm.

Guidance for specification option:

130735.

  • Size: 570 mm.
  • Weight: 64.1 kg.

Support block

Pumice concrete square support block - 150 mm.

Guidance for specification option:

130716.

  • Weight: 12 kg.
  • Internal: 150 mm.
  • A: 200 mm.
  • B: 100 mm.


Pumice concrete square support block - 180 mm.

Guidance for specification option:

130721.

  • Weight: 12 kg.
  • Internal: 180 mm.
  • A: 285 mm.
  • B: 100 mm.

Pumice concrete square support block - 200 mm.

Guidance for specification option:

130730.

  • Weight: 12 kg.
  • Internal: 200 mm.
  • A: 285 mm.
  • B: 100 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Recyclability

Can be recycled

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

80 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
 -

1

IFC
 -

1

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

Declaration of Performance

TUV NORD

TUV NORD

DOP LINERS 2018 UK

TUV NORD

TUV NORD

DOP NEM 2018 UK

Literature

Roll Top Pots

Roll Top Pots

Support Lintel

Support Lintel

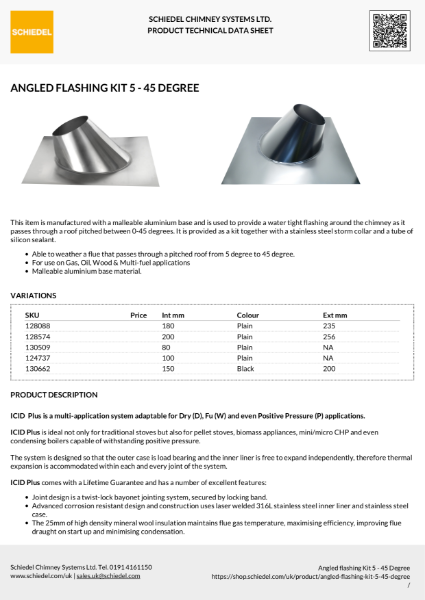

Angled Flashing Kit - 45°

Angled Flashing Kit - 45°

Isokern Pumice brochure

Isokern Pumice brochure

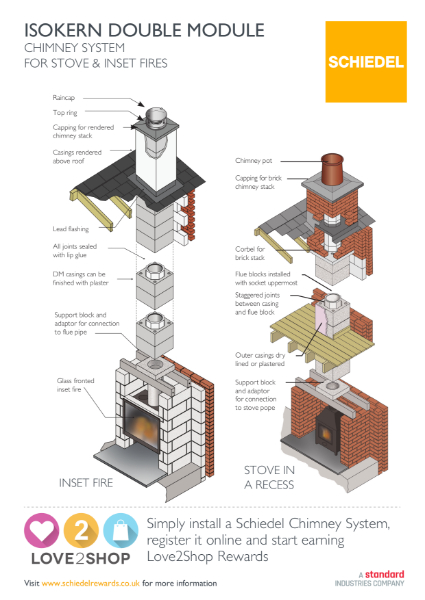

Isokern Double Module woodburning stove system (insert and recess)

Isokern Double Module woodburning stove system (insert and recess)

Isokern Pumice Chimney System brochure

Isokern Pumice Chimney System brochure

Case studies

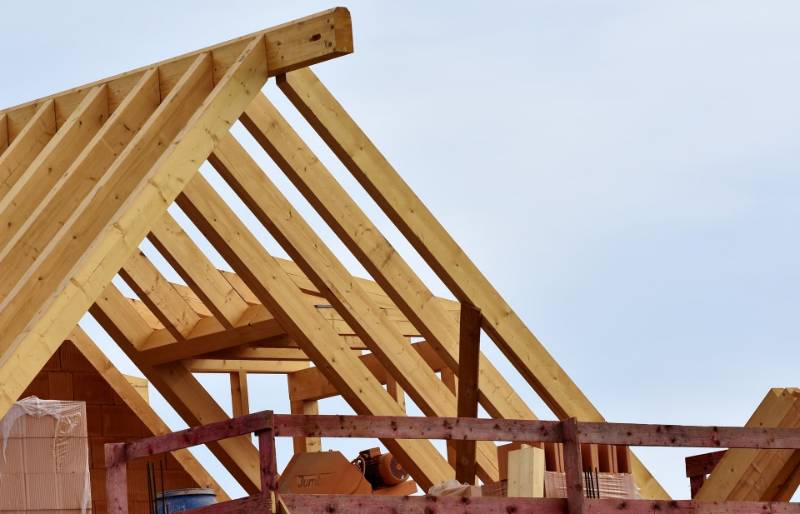

Using volcanic pumice building blocks to build a chimney during a self-build project.
