Flowshield SL System

Flowshield SL System

Third party certifications:
  • BSI Kitemark

    BSI Kitemark

    Certificate type

Flowcrete – a brand of CPG UK Ltd

Hygienic self smoothing resin floor finish.Typical uses include laboratories, clean rooms, warehouses, andelectronic, aerospace, automotive and printing plants.

Jump to:
+44 (0)1942 251400 www.flowcrete.co.uk
Application

For use in dry process areas where the floor is subjected to medium to heavy duty foot, trolley, pallet truck and rubber wheeled fork lift traffic. Typical uses include laboratories, clean rooms, warehouses, and electronic, aerospace, automotive and printing plants.

IMPORTANT: All specification information must be checked against the individual site requirements. Flowcrete advises that specifications are confirmed with their technical experts.

Description

A hygienic, self-smoothing epoxy resin floor finish.

Features and benefits:

  • Enhances working environment.
  • Hygienic – easy to clean.
  • Non-tainting, non-dusting.
  • Hard wearing floor finish.
  • Abrasion resistant.
  • Anti-static grade available.

Application:

For use in dry process areas where the floor is subjected to medium to heavy duty foot, trolley, pallet truck and rubber wheeled fork lift traffic. Typical uses include laboratories, clean rooms, warehouses, and electronic, aerospace, automotive and printing plants.

IMPORTANT: All specification information must be checked against the individual site requirements. Flowcrete advises that specifications are confirmed with their technical experts.

General information

Finish

Gloss

Features

Antistatic, easily cleaned, hard wearing, hygienic, non-dusting, non-tainting

Material

Self-smoothing epoxy resin

WarrantyDescription

6 years

Uniclass 2015

Ss_30_42_54_75 Resin flooring systemsPrimary

CAWS

M12/10 Resin flooring

M12/110 Resin flooring

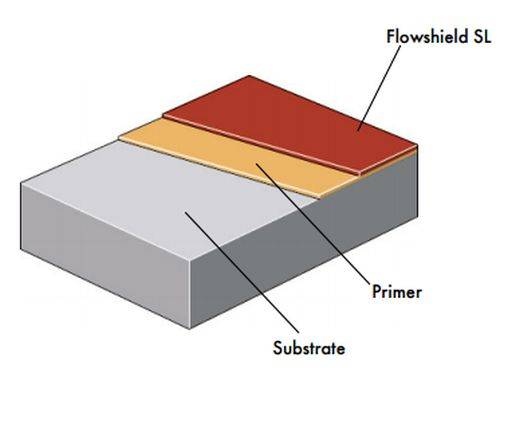

Specification data - Resin flooring systems

Product Reference

Flowshield SL System

Substrates

-

Preparation

Shotblast

Testing

Moisture content of substrates dry to 75% RH

Primer

Flowprime

Resin flooring

Flowshield SL (To FeRFA Type 5)

Bond strength

>2.5 N/mm²

Certification

CE Marked

Colour options

Light Grey 232

Goosewing Grey 222

Mid Grey 280

Dark Grey 281

Beige 326

Forest Green 754

Tile Red 637

Traffic Blue 466

CompressiveStrength

55 N/mm²

Cure speed

Light traffic: 12 hours, Full traffic: 2 days, Full chemical cure: 7 days

Flexural strength

>35 N/mm²

Impact resistance

15 Nm

Slip resistance

Dry >40 low slip potential

Surface

-

Hardness

>400 N/mm²

TensileStrength

25 N/mm²

Toxicity

Taint free to sensitive foodstuffs

Uses

Dry process areas where the floor is subjected to medium to heavy duty foot, trolley, pallet truck and rubber wheeled fork lift traffic, laboratories, clean rooms, warehouses, and electronic, aerospace, automotive and printing plants

Water permeability

Nil- Karsten test (impermeable)

Wear resistance

Abrasion quantity <0.5>

Standard product features

Colour:

Light Grey 232, Goosewing Grey 222, Mid Grey 280, Dark Grey 281, Beige 326, Forest Green 754, Tile Red 637 and Traffic Blue 466.

Features:

Antistatic, easily cleaned, hard wearing, hygienic, non-dusting and non-tainting.

Finish:

Gloss.

Material:

Self-smoothing epoxy resin.

Size:

2 mm.

Warranty Description:

Six year warranty.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 1.3
Revit
Revit 2016 2 2.0
Download now from NBS National BIM Library
Third party certifications
  • Certificate: BS 8204-6/FeRFA - Details: Type 5
