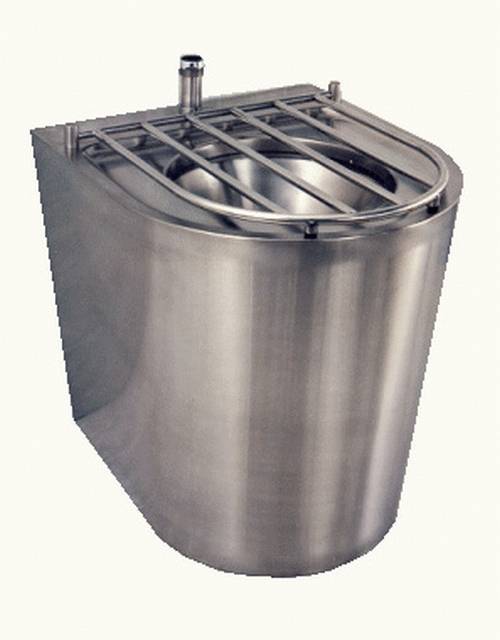

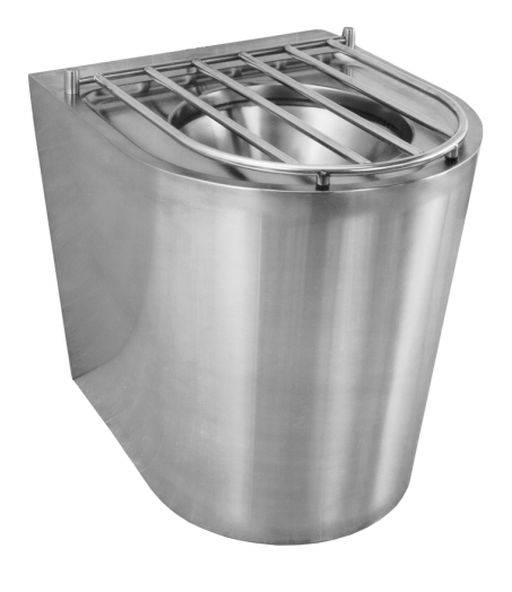

Floor Standing Disposal Unit - G22020N
Verified by manufacturer over a year ago
Dug domestic services disposal sink - floor standing.
Application
Disposal unit designed for duct mounting. Designed for duct mounted cistern applications. Suitable for a duct mounted 9 litre cistern.
Description
Floor standing disposal unit incorporating a sluice hopper.
Features and Benefits:
- Incorporating a sluice hopper which is suitable for duct mounted services.
- The hopper has a 110 mm diameter outlet which can accept a P trap (available as an extra).
- Plastic cistern with plastic downpipe, plastic float and metal flushing lever handles is available as an extra.
- The unit should only be fed from a cistern or tank water supply.
- The unit is fixed to the floor and the wall via the service duct.
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel Guidance for specification option: grade 1.4301 (304) |
Length | 600 mm |
Width | 600 mm |
Height | 600 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/386 Disposal units |
Product range |
Specification data - Sinks
Form | Floor-standing. |
Materials | |
Body | Stainless steel. |
Finish and colour | Satin. |
Size | 600 x 600 x 600 mm.Guidance for specification option: 1.2 mm thick. |
Water supply, overflow and waste holes | |
Waste | 110 mm diameter waste outlet. |
Integral accessories | P trap and duct mounted cistern required. |
Product Reference | (G22020N) 207.0000.103 |
Sustainability data
Contains Red List materials | No |
Country of material origin | Poland |
Country of product manufacture | Poland |
Recyclability | Manufacturer guidanceRecyclable. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 2 |
 IFC | - | 1 |
