Fenland Pantile

Name: Fenland Pantile
Brand: BMI Group UK Ltd
SKU: 6bBCUNueGbUQgqhJNFsSiG

Verified by manufacturer 7 months ago

BMI Group UK Ltd

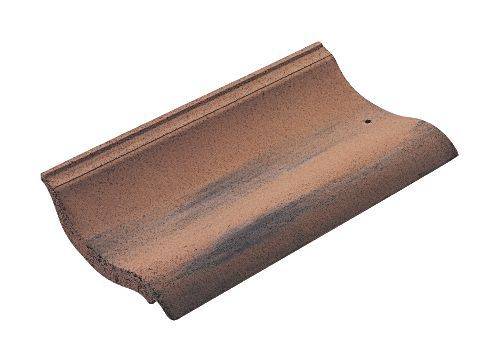

Concrete interlocking roof tile.

Jump to:

+44 (0)1908 015760 Website

Application

Suitable for use in both new build and re-roofing projects.

Description

Classic single pantile shape in a modern interlocking concrete format that guarantees robust, weathertight performance in all conditions.

Features and benefits:

Range of seven classic colours.
Economical concrete alternative to clay.
Gentle curve for soft yet distinctive effect.
Recessed front for a slim leading edge appearance.

General information

Color	Red Black Brown Orange
Finish	Coated
Material	Concrete
Shape	Other
Length	381 mm
Width	227 mm
Warranty description	60 year

Uniclass	Pr_25_93_72_17 Concrete interlocking tilesPrimary
CAWS	H65/115 Concrete roof tiling H65/120 Concrete roof tiling with counterbattens H65/5 Roof tiling

Product range	Tiles / Profile Range

Specification data - Concrete interlocking tiles

Profile	Recessed front for a slim leading edge.
Head lock	Required.
Colour	Black (63). Guidance for specification option: Coated. Terracotta (34). Slate Grey (30). Tudor Brown (36). Farmhouse Red (39). Breckland Brown (52).
Surface finish	Coated.
Size	381 x 227 mm.

Batten size	38 x 25 mm. Guidance for specification option: For up to 450 mm support spacing. 50 x 25 mm. Guidance for specification option: For up to 600 mm support spacing.
Head-lap	75 mm. Guidance for specification option: Minimum, ≥22.5°. 100 mm. Guidance for specification option: Minimum, 17.5–22.4°. 125 mm. Guidance for specification option: Maximum.
Pitch	17.5°. Guidance for specification option: Minimum, 100 mm head lap. 22.5°. Guidance for specification option: Minimum, 75 mm head lap. 90°. Guidance for specification option: Maximum.
Gauge	256 mm. Guidance for specification option: Minimum. 281 mm. Guidance for specification option: Maximum, <22.5°. 306 mm. Guidance for specification option: Maximum, ≥22.5°.
Cover	200 mm. Manufacturer guidance Linear cover.
Roof covering	16.3 tiles per m². Manufacturer guidance Covering capacity.
Weight	45 kg/m². Manufacturer guidance At maximum gauge.

Fenland Pantile

Application

Description

General information

Color

Finish

Material

Shape

Length

Width

Warranty description

Uniclass

CAWS

Product range

Specification data - Concrete interlocking tiles

Profile

Recessed front for a slim leading edge.

Head lock

Required.

Colour

Black (63).

Terracotta (34).

Slate Grey (30).

Tudor Brown (36).

Farmhouse Red (39).

Breckland Brown (52).

Surface finish

Coated.

Size

381 x 227 mm.

Batten size

Head-lap

Pitch

Gauge

Cover

Manufacturer guidance

Roof covering

Manufacturer guidance

Weight

Manufacturer guidance
