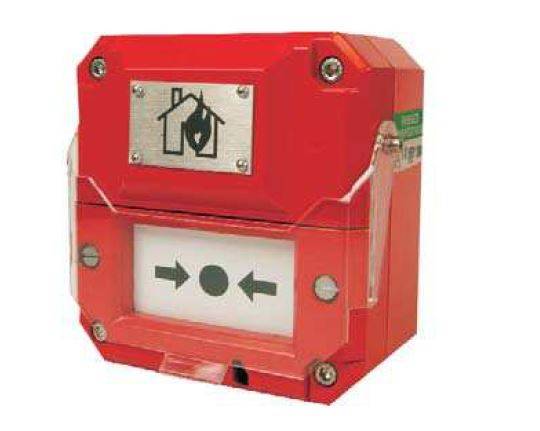

EX II 2 GD Dust Approved and Increased Safety (EExemd) Resettable Manual Alarm Callpoint

Name: EX II 2 GD Dust Approved and Increased Safety (EExemd) Resettable Manual Alarm Callpoint
Brand: Johnson Controls
SKU: 7dhPGZ4FvzDiUNDH5WQTqP

Verified by manufacturer 2 months ago

Johnson Controls

ATEX approved resettable manual alarm callpoint.

Jump to:

BOS

Website

Application

Suitable for special hazard areas (ATEX approved). Suitable for use in zones 1 and 2.

Description

An EX II 2 GD dust approved and increased safety (EExemd) resettable manual alarm callpoint for use with the EExd Flameproof MIM800 input module in EExd housing on an Addressable Detection and Releasing System in gas and dust explosive risks. Only compatible with Consys Version 17.0 and above when used with 577.800.067.

Features and benefits:

GRP enclosure, light, strong and not subject to corrosion
Resettable element
Explosion protection (ATEX approved)
In line and end of line resistors
Red epoxy finish
Seven terminals
Lift flap for extra protection against inadvertent operation
One changeover switch
Captive cover screws
Key operated test facility
M20 bottom cable entry.

General information

Color	Red
Finish	Painted
Material	Glass Reinforced Plastic (GRP)
Shape	Rectangle
Length	75 mm Guidance for specification option: Depth
Width	120 mm
Height	126 mm
Warranty description	Three year

Uniclass	Pr_75_80_30_50 Manual call pointsPrimary
CAWS	W90/336 Manual call points

Specification data - Manual call points

Standard	To EN 50019, EN 50018, EN 50028. CENELEC EN 50014.
Third-party certification	ATEX approved EX II 2 GD, EEemdIICT4, BAS02ATEX2105X.
Integral red visual indicator	Required.
Environmental category	Indoor.
Mounting	Surface.
Power source	Up to 250 V.

Operating temperature	–20 to +50°C.
Ingress protection	IP66/67.

Sustainability data

Contains Red List materials	No
Country of material origin	Czechia
Country of product manufacture	Czechia
Material	Glass Reinforced Plastic (GRP)
Manufacturing plant location	Osvobození 363, 679 02 Ráječko-Rájec-Jestřebí, Czechia
Expected Life	Ten year

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
Revit	-	1

Literature

514.001.107 EX II 2 GD Dust Approved Resettable Manual Alarm Callpoint
