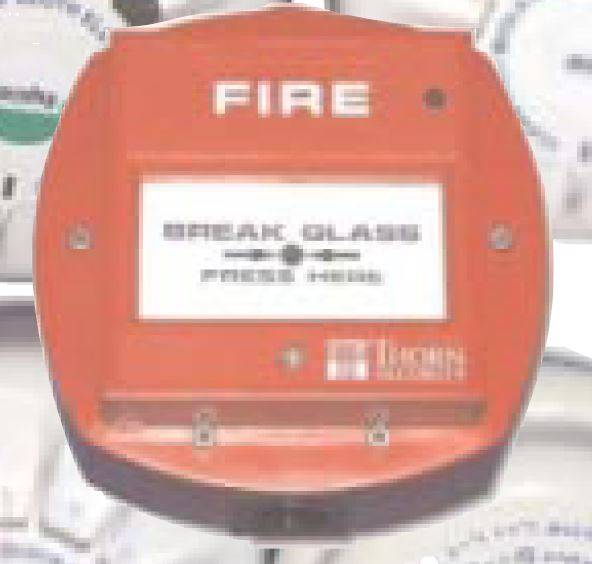

CP840Ex Break Glass Callpoint
Verified by manufacturer 4 months ago
Certificate of constancy of performance
Certificate type
Manual call point.
Application
Suitable for within hazardous areas.
Description
The CP840Ex is an I.S. manual call point and in addition the IF800 I.S. Input Module is available for interfacing to a clean contact device within the hazardous areas. For use in hazardous areas the standard MX loop voltage must be reduced and isolated. This is achieved by using an EXI800 I.S. Interface Module and a P&F KFDO-CS-Ex1.54 Isolator to connect each spur of MX I.S. devices onto the MX Loop.
General information
Color | Red |
Finish | Semi-gloss |
Material | Acrylonitrile butadiene styrene (ABS) |
Shape | Other |
Length | 97 mm |
Width | 93 mm |
Height | 73 mm |
Warranty description | Three year |
Uniclass | |
CAWS | W90/336 Manual call points |
Specification data - Manual call points
Standard | To EN 54-11. |
Third-party certification | IECEx Certificate BAS 07.0063X. |
Integral red visual indicator | Required. |
Mounting | Surface. |
Power source | Loop.Manufacturer guidance
|
Operating temperature | –25 to +70°C. |
RelativeHumidity | 95%. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Czechia |
Country of product manufacture | Czechia |
Material | Acrylonitrile butadiene styrene (ABS) |
Manufacturing plant location | |
Expected Life | Ten year |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
Certificate of constancy of performance
CP840Ex CPR
Literature
514.800.513 CP840Ex Break Glass Callpoint
