Eurothane® PL - Insulation/Plasterboard

Name: Eurothane® PL - Insulation/Plasterboard
Brand: Recticel Insulation
SKU: ngtxedUAPRZ5ZZNFUTPmrK

Verified by manufacturer today

Recticel Insulation

Product certifications:

BBA Agrément Certificate
Certificate type

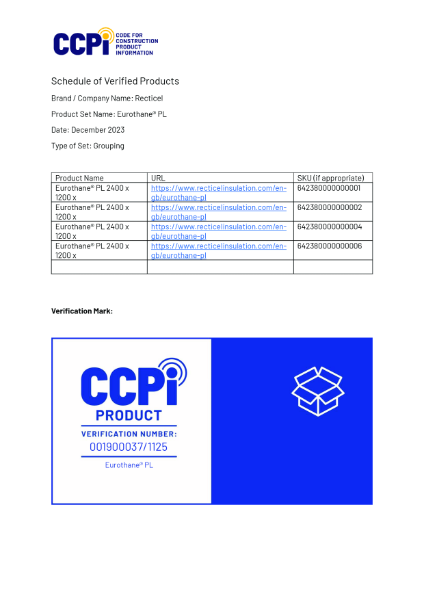

CCPI Product
Certificate type

Rigid PIR insulation with a bonded plasterboard laminate for internal linings.

Jump to:

Request BIM

01782 590470 Website

Application

For internal wall insulation and pitched roof applications.

Suitable for mechanical fixing or dot and dab fixing.

Description

Eurothane® PL is a rigid polyisocyanurate (PIR) foam board with a 12.5 mm tapered edge plasterboard bonded to one side for use as an internal lining. It is faced on the reverse with a multi-layer kraft paper and aluminium foil. The product can be mechanically fixed or secured with adhesive on suitable substrates.

Features and benefits:

Manufactured to ISO 9001 Quality and ISO 14001 Environmental Management Systems.
Manufactured using a blowing agent with zero ozone depletion potential (ODP) and low global warming potential (GWP).
Low thermal conductivity of 0.022 W/m·K (insulation component).
Plasterboard laminate gives Eurothane® PL a Euroclass B-s1, d0 fire performance.
CE marked in accordance with harmonized European standard EN 13950.

General information

Color	White
Material	Polyisocyanurate (PIR) Guidance for specification option: Polyisocyanurate (PIR). Plasterboard
Shape	Rectangle
Length	2400 mm
Width	1200 mm
Height	37.5 mm 52.5 mm 62.5 mm 77.5 mm 72.5 mm

Uniclass	Pr_25_71_63_66 Polyisocyanurate (PIR) foam boardsPrimary
CAWS	K10/125 Metal stud partition system K10/155 Wall lining system (metal studs) K10/165 Wall lining system (metal framing) K10/175 Wall lining system (metal furrings) K10/185 Wall lining system (adhesive) K10/205 Lining on timber K10/220 Proprietary suspended ceiling system K10/30 Metal stud K10/35 Wall lining system (metal framing) K10/41 Wall lining system (metal furrings) K10/45 Wall lining system (adhesive) K10/50 Suspended ceiling system on metal framing

Specification data - Polyisocyanurate (PIR) foam boards

Classification data
Standard	To BS EN 13165.
Third-party certification	BBA certificate.
Fire performance	To EN 13501-1, Euroclass B-s1, d0
Thermal conductivity (maximum)	0.022 W/m·K (insulation component).
Cross section	Uniform thickness.
Thickness (nominal)	37.5 mm. 52.5 mm. 62.5 mm. 77.5 mm.
Face size (length x width)	2400 x 1200 mm.
Density	± 30 kg/m³. Manufacturer guidance (core volume weight).
Facing	Faced on the reverse with a multi-layer kraft paper and aluminium foil.
Edges	Straight edges and Tapered edge (plasterboard on the long sides).
